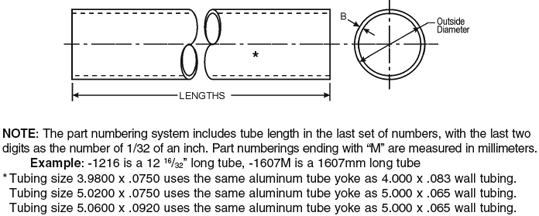

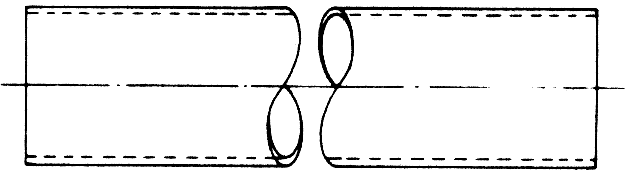

Dana Aluminum Tubing - Straight Catalogue

Tube O.D. (B) Wall Thickness S=Seamless W=Welded Inside Diameter (NOM) Part #
3.500 0.120 S 3.266 28-38-12-1216
3.980 0.075 S 3.836 212247X-1632M
3.980 0.075 S 3.836 212247X-1643M
3.980 0.075 S 3.836 212247X-1607M
3.980 0.075 S 3.980 212247X-1580M
5.020 0.075 S 4.873 212009X-6129
5.020 0.075 S 4.873 212009X-5903
5.020 0.075 S 4.873 212009X-1937M
5.020 0.075 S 4.873 212247X-1742M
5.020 0.075 S 4.873 212009X-1742M

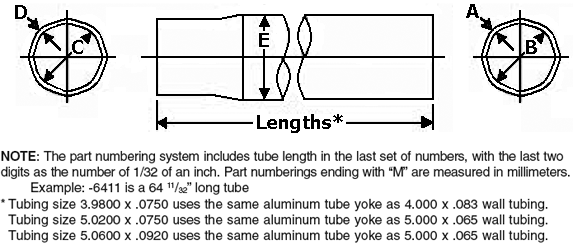

Dana Aluminum Tubing - Swaged 1 End Catalogue

Tube O.D. (D) Wall Thickness (B) I.D. S=Seamless W=Welded Small I.D. (NOM) Large I.D. (NOM) Part #
4.160 0.860 0.750 S 3.983 4.873 212013X-6509
4.160 0.860 0.750 S 3.983 4.873 212013X-6826
4.160 0.860 0.750 S 3.983 4.873 212013X-5920
4.160 0.860 0.750 S 3.983 4.873 212013X-6431
4.160 0.860 0.750 S 3.983 4.873 212013X-6405
4.160 0.860 0.750 S 3.983 4.873 212013X-1449M
4.160 0.860 0.750 S 3.983 4.873 212013X-6519
4.160 0.860 0.750 S 3.983 4.873 212013X-6005
4.160 0.860 0.750 S 3.983 4.873 212013X-6804

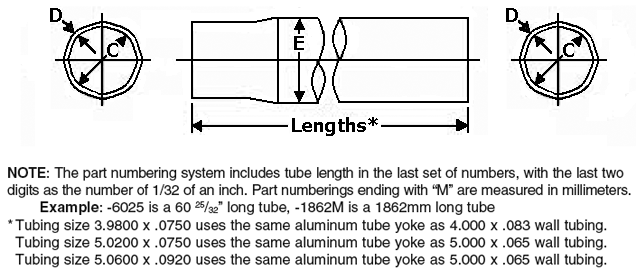

Dana Aluminum Tubing - Swaged Both Ends Catalogue

Tube O.D. (D) Wall Thickness S=Seamless W=Welded (E) Diameter Inside Diameter (NOM) Part #
4.160 0.860 S 5.020 3.893 212014X-6015
4.160 0.860 S 5.020 3.983 212014X-5903
4.160 0.860 S 5.020 3.983 212014X-6025
4.160 0.860 S 5.020 3.983 212024X-5929
4.160 0.860 S 5.020 3.983 212014X-5809
5.060 0.920 S 5.775 4.873 212218X-1862M
5.060 0.920 S 5.775 4.873 212218X-1771M
5.060 0.920 S 5.775 4.873 212218X-6820
5.060 0.920 S 5.775 4.873 212218X-6924



Dana Tubing Catalogue

Tube O.D. (B) Wall Thickness S=seamless W=welded Inside Dia (NOM) Gauge Part #
1.250 0.095 W 1.060 13 10-30-42-10000
1.250 0.120 S 1.010 11 10-32-92-10000
1.250 0.188 S 0.875 7 10-32-72-10000
1.750 0.065 W 1.620 16 14-30-12-5400
1.750 0.065 W 1.620 16 14-30-12-10000
1.750 0.095 W 1.560 13 14-30-62-7400
1.750 0.095 W 1.560 13 14-30-62-10000
2.000 0.065 W 1.870 16 16-30-32-10000
2.000 0.083 D 1.834   DT16-30-62
2.000 0.083 W 1.834 14 16-30-62-5400
2.000 0.083 W 1.834 14 16-30-62-10000
2.000 0.083 W 1.834 14 16-30-62-7400
2.000 0.120 D 1.760 11 DT16-30-102
2.000 0.120 W 1.760 11 16-30-102-1000
2.500 0.065 W 2.370 16 20-30-12-10000
2.500 0.065 W 2.370 16 20-30-12-5400
2.500 0.065 W 2.370 16 20-30-12-7400
2.500 0.083 D 2.334   DT20-30-22
2.500 0.083 W 2.334 14 20-30-22-7400
2.500 0.083 W 2.334 14 20-30-22-10000
2.500 0.095 W 2.310 13 20-30-52-10000
2.500 0.095 W 2.310 13 20-30-52-5400
2.750 0.065 D 2.620   DT22-30-12
2.750 0.065 W 2.620 16 22-30-12-10000
2.750 0.065 W 2.620 16 22-30-12-7400
2.750 0.083 W 2.584 14 22-30-22-10000
3.000 0.065 D 2.870   DT24-30-32
3.000 0.065 W 2.870 16 24-30-32-7400
3.000 0.065 W 2.870 16 24-30-32-10000
3.000 0.083 D 2.834   DT24-30-42
3.000 0.083 W 2.834 14 24-30-42-10000
3.000 0.083 W 2.834 14 24-30-42-7400
3.000 0.095 W 2.810 13 24-30-12-7400
3.000 0.095 W 2.810 13 24-30-12-10000
3.000 0.120 S 2.760 11 24-32-142-1000
3.000 0.134 W 2.732 10 24-30-72-7400
3.000 0.134 W 2.732 10 24-30-72-10000
3.500 0.065 D 3.370   DT28-30-42
3.500 0.065 W 3.370 16 28-30-42-10000
3.500 0.065 W 3.370 16 28-30-42-7400
3.500 0.083 D 3.334   DT28-30-62
3.500 0.083 W 3.334 14 28-30-62-10000
3.500 0.083 W 3.334 14 28-30-62-7400
3.500 0.095 D 3.310   DT28-30-22
3.500 0.095 W 3.310 13 28-30-22-10000
3.500 0.095 W 3.310 13 28-30-22-7400
3.500 0.134 D 3.232   DT28-30-92
3.500 0.134 W 3.232 10 28-30-92-7400
3.500 0.134 W 3.232 10 28-30-92-10000
3.500 0.156 D 3.188   DT28-30-52
3.500 0.156 W 3.188 9 28-30-52-10000
3.500 0.156 W 3.188 9 28-30-52-7400
3.550 0.207 D 3.136 6 28-30-122-6800
3.550 0.207 D 3.136 6 28-30-122-1000
4.000 0.065 D 3.870   DT143T
4.000 0.083 D 3.834   DT32-30-22
4.000 0.083 S 3.836   32-38-12-1640M
4.000 0.083 S 3.836   5005665-1526M
4.000 0.083 W 3.834 14 32-30-22-10000
4.000 0.083 W 3.834 14 32-30-22-7400
4.000 0.095 W 3.810 13 32-30-12-10000
4.000 0.095 W 3.810 13 32-30-12-7400
4.000 0.120 W 3.760 11 32-30-42-7400
4.000 0.134 D 3.732 13 32-30-92-10000
4.000 0.134 D 3.732 13 32-30-92-7300
4.000 0.134 W 3.732 10 32-30-52-7400
4.000 0.134 W 3.732 10 32-30-52-10000
4.095 0.180 D 3.735 7 32-30-72-1000
4.095 0.180 D 3.735 7 32-30-72-7300
4.160 0.086 S 3.983   212014X-5809
4.213 0.138 D 3.937   100-30-3-7300
4.213 0.138 D 3.937   100-30-3-10000
4.331 0.197 D 3.937   100-30-5-7300
4.331 0.197 D 3.937   100-30-5-10000
4.500 0.134 D 4.232 10 36-30-62-10000
4.500 0.134 D 4.232 10 36-30-62-7300
4.500 0.259 D 3.982 3 36-30-22-7300
4.500 0.259 D 3.982 3 36-30-22-10000
4.594 0.180 W 4.234 7 36-30-102-7300
4.594 0.180 W 4.234 7 36-30-102-1000
4.724 0.197 D 4.330   110-30-5-10000
4.724 0.197 D 4.330   110-30-5-7300
4.960 0.118 D 4.724   120-30-3-10000
4.960 0.118 D 4.724   120-30-3-7300
5.059 0.167 D 4.724   120-30-4-7300
5.059 0.167 D 4.724   120-30-4-10000
5.118 0.197 D 4.724   120-30-5-7300
5.118 0.197 D 4.724   120-30-5-10000
5.196 0.236 D 4.724   120-30-6-7300
5.196 0.236 D 4.724   120-30-6-10000
