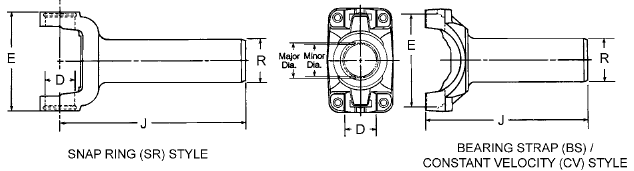

Dana Slip Yokes Catalogue -
Splined, Transmission
| Series | Dimension D | Dimension E | Spline O.D. | # of Splines | (J) C/L to End of Spline | (R) Hub Diameter | Counterbore Diameter | Counterbore Depth | Style | Slip Yoke Plug # | Part # |
| 1210 | 1.060 | 2.690 | 1.113 | 24/25 I | 5.875 | 1.374 | SR | 500166-20 | 2-3-10071X | ||
| 1310 | 1.060 | 3.470 | 1.005 | 22/24 I | 6.045 | 1.376 | 1.043 | 0.390 | SR | 500166-20 | 2-3-13461X |
| 1310 | 1.060 | 3.470 | 1.104 | 20/21 I | 6.000 | 1.496 | SR | 500166-20 | 2-3-9701X | ||
| 1310 | 1.060 | 3.470 | 1.113 | 24/25 I | 6.500 | 1.375 | SR | 500166-20 | 2-3-8431X | ||
| 1310 | 1.060 | 3.470 | 1.113 | 24/25 I | 8.250 | 1.374 | 1.194 | 2.890 | SR | 2-68-153 | 2-3-8891X |
| 1310 | 1.060 | 3.470 | 1.123 | 24/26 I | 6.040 | 1.494 | 1.142 | 0.390 | SR | 500166-20 | 2-3-11731X |
| 1310 | 1.060 | 3.470 | 1.123 | 24/26 I | 6.045 | 1.494 | 1.160 | 0.390 | SR | 500166-20 | 2-3-13891X |
| 1310 | 1.060 | 3.470 | 1.125 | 10 | 3.469 | 1.625 | SR | 2-68-44 | 2-3-7501X | ||
| 1310 | 1.060 | 3.470 | 1.125 | 10 | 3.469 | 1.641 | SR | 2-68-44 | 2-3-11551X | ||
| 1310 | 1.060 | 3.470 | 1.158 | 25/26 I | 6.000 | 1.558 | SR | 500166-20 | 2-3-9781X | ||
| 1310 | 1.060 | 3.470 | 1.158 | 25/26 I | 6.000 | 1.558 | SR | 500166-20 | 2-3-8731X | ||
| 1310 | 1.060 | 3.470 | 1.172 | 16 | 4.875 | 1.500 | SR | 500166-20 | 2-3-1331X | ||
| 1310 | 1.060 | 3.470 | 1.176 | 26/27 I | 4.875 | 1.500 | SR | 500166-20 | 2-3-4911X | ||
| 1310 | 1.060 | 3.470 | 1.176 | 26/27 I | 4.891 | 1.500 | 1.260 | 0.500 | SR | 500166-20 | 2-3-9211X |
| 1310 | 1.060 | 3.470 | 1.176 | 26/27 I | 4.891 | 1.502 | SR | 500166-20 | 2-3-10501X | ||
| 1310 | 1.060 | 3.470 | 1.176 | 26/27 I | 5.469 | 1.500 | SR | 2-68-23 | 2-3-9191X | ||
| 1310 | 1.060 | 3.470 | 1.176 | 26/27 I | 5.469 | 1.500 | SR | 500166-20 | 2-3-6081X | ||
| 1310 | 1.060 | 3.470 | 1.176 | 26/27 I | 5.750 | 1.500 | SR | 500166-20 | 2-3-13051X | ||
| 1310 | 1.060 | 3.470 | 1.176 | 26/27 I | 5.750 | 1.502 | SR | 500166-20 | 2-3-12411X | ||
| 1310 | 1.060 | 3.470 | 1.176 | 26/27 I | 5.750 | 1.502 | SR | 500166-20 | 2-3-14771X | ||
| 1310 | 1.060 | 3.470 | 1.176 | 26/27 I | 5.750 | 1.602 | SR | 500166-20 | 2-3-15321X | ||
| 1310 | 1.060 | 3.470 | 1.176 | 26/27 I | 6.000 | 1.499 | SR | 500166-20 | 2-3-10391X | ||
| 1310 | 1.060 | 3.470 | 1.176 | 26/27 I | 6.420 | 1.502 | 1.232 | 0.590 | SR | 500166-20 | 2-3-11071X |
| 1310 | 1.060 | 3.470 | 1.176 | 26/27 I | 6.620 | 1.502 | SR | 500166-20 | 2-3-15341X | ||
| 1310 | 1.060 | 3.470 | 1.176 | 26/27 I | 7.620 | 1.502 | SR | 500166-20 | 2-3-14861X | ||
| 1310 | 1.060 | 3.470 | 1.176 | 26/27 I | 7.620 | 1.502 | SR | 500166-20 | 2-3-14871X | ||
| 1310 | 1.060 | 3.470 | 1.201 | 23 I | 5.750 | 1.578 | SR | 2-68-343 | 2-3-11721KX | ||
| 1310 | 1.060 | 3.470 | 1.220 | 27/28 I | 5.390 | 1.496 | SR | 2-68-83 | 2-3-10761X | ||
| 1310 | 1.060 | 3.470 | 1.220 | 27/28 I | 6.500 | 1.491 | SR | 500166-20 | 2-3-12981X | ||
| 1310 | 1.060 | 3.470 | 1.220 | 27/28 I | 6.500 | 1.500 | SR | 500166-20 | 2-3-8251X | ||
| 1310 | 1.060 | 3.470 | 1.220 | 27/28 I | 7.000 | 1.497 | SR | 500166-20 | 2-3-12671X | ||
| 1310 | 1.060 | 3.470 | 1.220 | 28 I | 6.000 | 1.500 | SR | 500166-20 | 2-3-4871X | ||
| 1310 | 1.060 | 3.470 | 1.250 | 15/16 | 5.380 | 1.700 | 1.262 | 0.380 | SR | 2-68-23 | 2-3-388X |
| 1310 | 1.060 | 3.470 | 1.284 | 28/30 I | 6.165 | 1.652 | 1.319 | 0.450 | SR | 500166-22 | 2-3-13311X |
| 1310 | 1.060 | 3.470 | 1.284 | 28/30 I | 6.266 | 1.652 | 1.320 | 0.390 | SR | 500166-22 | 2-3-14001X |
| 1310 | 1.060 | 3.470 | 1.284 | 28/30 I | 7.270 | 1.652 | 1.324 | 0.450 | SR | 500166-22 | 2-3-12461X |
| 1310 | 1.060 | 3.470 | 1.284 | 28/30 I | 7.420 | 1.652 | 1.319 | 0.630 | SR | 500166-20 | 2-3-10131X |
| 1310 | 1.060 | 3.470 | 1.284 | 28/30 I | 6.750 | 1.680 | SR | 500166-22 | 2-3-13551X | ||
| 1310 | 1.060 | 3.470 | 1.284 | 28/30 I | 6.750 | 1.680 | 500166-22 | 2-3-14791X | |||
| 1310 | 1.060 | 3.470 | 1.284 | 28/30 I | 9.330 | 1.680 | SR | 500166-22 | 2-3-14981X | ||
| 1310 | 1.060 | 3.470 | 1.375 | 10 | 2.562 | 2.120 | SR | 2-3-9021 | |||
| 1310 | 1.060 | 3.470 | 1.378 | 31/32 I | 4.880 | 1.885 | SR | 500166-22 | 2-3-13131X | ||
| 1310 | 1.060 | 3.470 | 1.390 | 30/31 I | 7.000 | 1.684 | SR | 500166-22 | 2-3-15631X | ||
| 1310 | 1.060 | 3.470 | 1.397 | 31/32 I | 5.188 | 1.688 | 1.458 | 0.880 | SR | 500166-22 | 2-3-5281X |
| 1310 | 1.060 | 3.470 | 1.397 | 31/32 I | 5.500 | 1.885 | SR | 500166-22 | 2-3-10431X | ||
| 1310 | 1.060 | 3.470 | 1.403 | 21 I | 4.130 | 2.000 | SR | 2-68-154 | 2-3-9811X | ||
| 1310 | 1.060 | 3.470 | 1.564 | 24 I | 4.125 | 2.000 | SR | 2-68-154 | 2-3-9761X | ||
| 1330 | 1.060 | 3.880 OR 3.630 | 1.113 | 24/25 I | 6.860 | 1.374 | SR | 500166-20 | 2-3-13721X | ||
| 1330 | 1.060 | 3.880 OR 3.630 | 1.113 | 24/25 I | 6.860 | 1.374 | SR | 500166-20 | 2-3-15461X | ||
| 1330 | 1.060 | 3.880 OR 3.630 | 1.158 | 25/26 I | 6.180 | 1.558 | SR | 500166-20 | 2-3-15051X | ||
| 1330 | 1.060 | 3.880 OR 3.630 | 1.158 | 25/26 I | 7.000 | 1.558 | SR | 500166-20 | 2-3-14311X | ||
| 1330 | 1.060 | 3.880 OR 3.630 | 1.176 | 26/27 I | 5.470 | 1.502 | SR | 500166-20 | 2-3-12081X | ||
| 1330 | 1.060 | 3.880 OR 3.630 | 1.176 | 26/27 I | 5.470 | 1.502 | 1.218 | 0.390 | SR | 500166-20 | 2-3-12371X |
| 1330 | 1.060 | 3.880 OR 3.630 | 1.176 | 26/27 I | 5.470 | 1.502 | 1.218 | 0.390 | SR | 500166-20 | 2-3-12361X |
| 1330 | 1.060 | 3.880 OR 3.630 | 1.176 | 26/27 I | 5.760 | 1.502 | SR | 500166-20 | 2-3-13671X | ||
| 1330 | 1.060 | 3.880 OR 3.630 | 1.176 | 26/27 I | 6.417 | 1.502 | 1.216 | 0.590 | SR | 500166-20 | 2-3-15751X |
| 1330 | 1.060 | 3.880 OR 3.630 | 1.176 | 26/27 I | 6.760 | 1.502 | 1.217 | 0.410 | SR | 2-68-23 | 2-3-12051X |
| 1330 | 1.060 | 3.880 OR 3.630 | 1.176 | 26/27 I | 6.760 | 1.502 | 1.217 | 0.410 | SR | 500166-20 | 2-3-11781X |
| 1330 | 1.060 | 3.880 OR 3.630 | 1.176 | 26/27 I | 7.290 | 1.558 | SR | 500166-20 | 2-3-14171X | ||
| 1330 | 1.060 | 3.880 OR 3.630 | 1.176 | 26/27 I | 7.290 | 1.558 | SR | 500166-20 | 2-3-14191X | ||
| 1330 | 1.060 | 3.880 OR 3.630 | 1.177 | 26/27 I | 6.760 | 1.502 | 1.217 | 0.300 | SR | 2-68-23 | 5001240 |
| 1330 | 1.060 | 3.880 OR 3.630 | 1.201 | 23 I | 6.319 | 1.574 | SR | 2-68-343 | 5002274 | ||
| 1330 | 1.060 | 3.880 OR 3.630 | 1.201 | 23 I | 7.106 | 1.574 | SR | 2-68-343 | 5002278 | ||
| 1330 | 1.060 | 3.880 OR 3.630 | 1.220 | 27/28 I | 5.906 | 1.500 | SR | 500166-20 | 2-3-5981X | ||
| 1330 | 1.060 | 3.880 OR 3.630 | 1.220 | 27/28 I | 6.630 | 1.597 | SR | 500166-20 | 2-3-14061X | ||
| 1330 | 1.060 | 3.880 OR 3.630 | 1.220 | 27/28 I | 7.860 | 1.497 | SR | 500166-20 | 2-3-13691X | ||
| 1330 | 1.060 | 3.880 OR 3.630 | 1.284 | 29/30 I | 8.030 | 1.680 | 1.440 | 1.440 | SR | 500166-20 | 2-3-14031X |
| 1330 | 1.060 | 3.880 OR 3.630 | 1.284 | 29/30 I | 8.030 | 1.680 | 1.440 | 1.440 | SR | 500166-22 | 2-3-14261X |
| 1330 | 1.060 | 3.880 OR 3.630 | 1.284 | 29/30 I | 9.000 | 1.680 | SR | 500166-22 | 2-3-14211X | ||
| 1330 | 1.060 | 3.880 OR 3.630 | 1.284 | 29/30 I | 9.000 | 1.680 | SR | 500166-22 | 2-3-12621X | ||
| 1330 | 1.060 | 3.880 OR 3.630 | 1.284 | 29/30 I | 9.000 | 1.680 | SR | 500166-20 | 2-3-14221X | ||
| 1330 | 1.060 | 3.880 OR 3.630 | 1.377 | 30/32 I | 6.102 | 1.731 | 1.375 | 0.393 | SR | 500166-22 | 2-3-16011X |
| 1330 | 1.060 | 3.880 OR 3.630 | 1.378 | 31/32 I | 6.760 | 1.885 | SR | 2-68-143 | 2-3-12191X | ||
| 1330 | 1.060 | 3.880 OR 3.630 | 1.378 | 31/32 I | 6.760 | 1.885 | SR | 500166-22 | 2-3-10831X | ||
| 1330 | 1.060 | 3.880 OR 3.630 | 1.378 | 31/32 I | 6.760 | 1.885 | SR | 500166-24 | 2-3-13811X | ||
| 1330 | 1.060 | 3.880 OR 3.630 | 1.378 | 31/32 I | 7.250 | 1.885 | SR | 500166-22 | 2-3-14241X | ||
| 1330 | 1.060 | 3.880 OR 3.630 | 1.378 | 31/32 I | 7.720 | 1.885 | SR | 500166-24 | 2-3-14831X | ||
| 1330 | 1.060 | 3.880 OR 3.630 | 1.378 | 31/32 I | 7.940 | 1.885 | 1.410 | 0.220 | SR | 500166-24 | 2-3-10791X |
| 1330 | 1.060 | 3.880 OR 3.630 | 1.378 | 31/32 I | 8.640 | 1.885 | SR | 500166-22 | 2-3-14281X | ||
| 1330 | 1.060 | 3.880 OR 3.630 | 1.390 | 30/31 I | 6.000 | 1.688 | SR | 500166-22 | 2-3-6041X | ||
| 1330 | 1.060 | 3.880 OR 3.630 | 1.390 | 30/31 I | 7.000 | 1.885 | SR | 500166-22 | 2-3-10201X | ||
| 1330 | 1.060 | 3.880 OR 3.630 | 1.390 | 30/31 I | 7.460 | 1.886 | CV | 500166-22 | 2-3-12961X | ||
| 1330 | 1.060 | 3.880 OR 3.630 | 1.401 | 32/34 I | 8.465 | 1.770 | SR | 500166-20 | 5003207 | ||
| 1330 | 1.060 | 3.880 OR 3.630 | 1.406 | 32/34 I | 8.456 | 1.770 | SR | 500166-22 | 5004846 | ||
| 1350 | 1.190 | 3.880 | 1.176 | 26/27 I | 6.940 | 1.502 | 1.218 | 0.410 | SR | 500166-20 | 3-3-3721X |
| 1350 | 1.190 | 3.880 | 1.176 | 26/27 I | 6.940 | 1.502 | 1.218 | 0.410 | SR | 2-68-23 | 3-3-4281X |
| 1350 | 1.190 | 3.880 | 1.326 | 29/30 I | 6.630 | 1.680 | SR | 500166-22 | 3-3-3931X | ||
| 1350 | 1.190 | 3.880 | 1.326 | 29/30 I | 7.779 | 1.885 | SR | 500166-22 | 5002231 | ||
| 1350 | 1.190 | 3.880 | 1.375 | 31/32 I | 6.938 | 1.886 | SR | 3-68-33 | 3-3-6481X | ||
| 1350 | 1.190 | 3.880 | 1.375 | 31/32 I | 6.940 | 1.886 | SR | 500166-24 | 3-3-6361X | ||
| 1350 | 1.190 | 3.880 | 1.378 | 31/32 I | 5.500 | 1.885 | SR | 500166-24 | 3-3-2431X | ||
| 1350 | 1.190 | 3.880 | 1.378 | 31/32 I | 6.938 | 1.886 | SR | 500166-24 | 3-3-5571X | ||
| 1350 | 1.190 | 3.880 | 1.378 | 31/32 I | 6.938 | 1.886 | SR | 3-68-33 | 3-3-4261X | ||
| 1350 | 1.190 | 3.880 | 1.378 | 31/32 I | 6.940 | 1.885 | SR | 3-68-23 | 3-3-6471X | ||
| 1350 | 1.190 | 3.880 | 1.378 | 31/32 I | 7.720 | 1.885 | SR | 500166-24 | 3-3-6871X | ||
| 1350 | 1.190 | 3.880 | 1.378 | 31/32 I | 7.720 | 1.886 | SR | 500166-24 | 3-3-6441X | ||
| 1350 | 1.190 | 3.880 | 1.378 | 31/32 I | 7.940 | 1.886 | 1.430 | 0.220 | SR | 500166-24 | 3-3-5551X |
| 1350 | 1.190 | 3.880 | 1.390 | 30/31 I | 6.440 | 1.685 | SR | 500166-22 | 3-3-2491X | ||
| 1350 | 1.190 | 3.880 | 1.390 | 30/31 I | 6.570 | 1.684 | SR | 500166-22 | 3-3-5961X | ||
| 1350 | 1.190 | 3.880 | 1.390 | 30/31 I | 7.310 | 1.885 | SR | 500166-23 | 3-3-5431X | ||
| 1350 | 1.190 | 3.880 | 1.390 | 30/31 I | 7.460 | 1.885 | CV | 500166-22 | 3-3-5861X | ||
| 1350 | 1.190 | 3.880 | 1.403 | 21 I | 5.310 | 1.830 | SR | 500166-24 | 3-3-848X | ||
| 1410 | 1.190 | 4.440 | 1.284 | 29/30 I | 8.340 | 1.680 | SR | 500166-22 | 3-3-6121X | ||
| 1410 | 1.190 | 4.440 | 1.284 | 29/30 I | 8.340 | 1.680 | 1.440 | 1.440 | SR | 500166-22 | 3-3-4851X |
| 1410 | 1.190 | 4.440 | 1.284 | 29/30 I | 8.340 | 1.680 | 1.440 | 1.440 | SR | 500166-22 | 3-3-4181X |
| 1410 | 1.190 | 4.440 | 1.284 | 29/30 I | 8.340 | 2.161 | 1.440 | 1.440 | SR | 500166-22 | 5002035 |
| 1410 | 1.190 | 4.440 | 1.284 | 29/30 I | 8.344 | 1.688 | SR | 500166-22 | 3-3-6131X | ||
| 1410 | 1.190 | 4.440 | 1.326 | 29/30 I | 8.340 | 1.680 | 1.440 | 1.440 | SR | 500166-22 | 3-3-3271X |
| 1410 | 1.190 | 4.440 | 1.326 | 29/30 I | 8.340 | 1.680 | 1.440 | 1.440 | SR | 500166-22 | 3-3-3251X |
| 1410 | 1.190 | 4.440 | 1.378 | 30/32 I | 6.100 | 1.731 | 1.387 | 0.394 | SR | 500166-22 | 5004624 |
| 1410 | 1.190 | 4.440 | 1.378 | 31/32 I | 6.940 | 1.885 | SR | 500166-24 | 3-3-6321X | ||
| 1410 | 1.190 | 4.440 | 1.378 | 31/32 I | 6.940 | 1.885 | SR | 500166-24 | 3-3-6811X | ||
| 1410 | 1.190 | 4.440 | 1.378 | 31/32 I | 7.750 | 1.885 | SR | 500166-22 | 3-3-3891X | ||
| 1410 | 1.190 | 4.440 | 1.378 | 31/32 I | 7.750 | 1.885 | SR | 500166-22 | 3-3-3811X | ||
| 1410 | 1.190 | 4.440 | 1.378 | 31/32 I | 8.070 | 1.885 | SR | 500166-24 | 3-3-6421X | ||
| 1410 | 1.190 | 4.440 | 1.378 | 31/32 I | 8.070 | 1.885 | SR | 500166-24 | 5001406 | ||
| 1410 | 1.190 | 4.440 | 1.378 | 31/32 I | 8.750 | 1.885 | SR | 500166-22 | 3-3-4401X | ||
| 1410 | 1.190 | 4.440 | 1.378 | 31/32 I | 8.750 | 1.886 | SR | 500166-22 | 3-3-4211X | ||
| 1410 | 1.190 | 4.440 | 1.390 | 30/31 I | 8.110 | 1.885 | SR | 500166-22 | 3-3-6661X | ||
| 1410 | 1.190 | 4.440 | 1.500 | 16 | 7.812 | 1.781 | SR | 3-68-63 | 3-3-838X | ||
| 1410 | 1.190 | 4.440 | 1.615 | 30/31 I | 7.750 | 2.200 | SR | 500166-28 | 3-3-5631X | ||
| 1410 | 1.190 | 4.440 | 1.615 | 30/31 I | 8.340 | 2.200 | SR | 500166-28 | 3-3-4391X | ||
| 1410 | 1.190 | 4.440 | 1.615 | 30/31 I | 8.340 | 2.200 | 1.655 | 0.270 | SR | 500166-28 | 3-3-6541X |
| 1410 | 1.190 | 4.440 | 1.615 | 30/31 I | 8.344 | 2.201 | SR | 500166-28 | 3-3-3441X | ||
| 1410 | 1.190 | 4.440 | 1.615 | 30/31 I | 8.344 | 2.201 | SR | 500166-28 | 3-3-6141X | ||
| 1410 | 1.190 | 4.440 | 1.615 | 30/31 I | 8.344 | 2.203 | SR | 500166-28 | 3-3-4131X | ||
| 1410 | 1.190 | 4.440 | 1.616 | 30/31 I | 7.750 | 2.200 | SR | 500166-28 | 3-3-5611X | ||
| 1410 | 1.190 | 4.440 | 1.616 | 30/31 I | 8.340 | 2.200 | 1.655 | 0.270 | SR | 500166-28 | 5001683 |
| 1480 | 1.380 | 4.440 | 1.390 | 30/31 I | 6.870 | 1.885 | SR | 500166-23 | 3-3-6021X | ||
| 1480 | 1.380 | 4.440 | 1.654 | 20 I | 4.560 | 2.380 | SR | 500166-26 | 3-3-3151X | ||
| 1550 | 1.380 | 5.250 | 1.875 | 14 I | 4.203 | 3.000 | SR | 500166-31 | 4-3-1961X | ||
| 1550 | 1.380 | 5.250 | 1.875 | 14 I | 4.703 | 2.750 | SR | 500166-31 | 4-3-1951X | ||
| 1550 | 1.380 | 5.250 | 2.372 | 46 I | 4.880 | 3.125 | SR | 500166-46 | 4-3-2441X | ||
| SPL55 | 1.370 | 4.440 | 1.615 | 30/31 I | 8.339 | 2.000 | SR | 500166-28 | 55-3-21X | ||
| SPL55 | 1.370 | 4.440 | 1.616 | 30/31 I | 8.339 | 2.000 | SR | 500166-28 | 5001672 |
