Dana Slip Yokes Catalogue -

w/ Hex Hole

Series Dimension D Dimension K (P) Hex Across Flats Lube or Fitting Part # Part #
1000 0.940 1.500 0.875 500174-1 10-3-162X
1000 0.940 1.500 1.125 500174-1 10-3-32X



Dana Slip Yokes Catalogue -

w/ Round Hole

Series Dimension D Dimension K (P) Round Hole Diameter (X) Keyway Width Lube Fitting Part # Part #
1000 0.940 1.500 0.750 0.188 500174-1 10-3-13X
1000 0.940 1.500 0.812 0.250 500174-1 10-3-23X
1000 0.940 1.500 0.875 0.250 500174-1 10-3-33X
1000 0.940 1.500 1.000 0.250 500174-1 10-3-83X
1000 0.940 1.500 1.125 0.312 500174-1 10-3-183X
1000 0.940 1.500 1.250 0.312 500174-1 10-3-163X

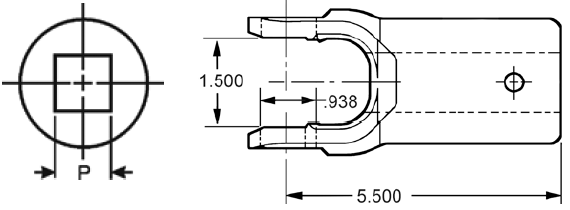

Dana Slip Yokes Catalogue -

w/ Square Hole

Series Dimension D Dimension K (P) Hole Across Flats Lube Fitting Part # Part #
1000 0.940 1.500 0.750 500174-1 10-3-12X
1000 0.940 1.500 0.875 500174-1 10-3-22X
1000 0.940 1.500 1.000 500174-1 10-3-122X

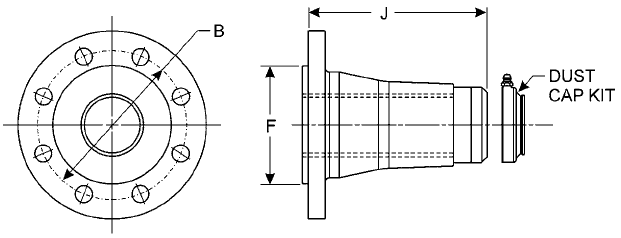

Dana Slip Yokes Catalogue -

Slip Flange Yoke Style

Series Dimension D Dimension E Spline O.D. # of Splines (J) Flange Face to Spline End (F) Pilot Diameter M=Male F=Female (B) Bolt Circle Diameter (B) Bolt Hole Diameter D=Drilled T=Tapped # of Bolt Holes Dust Cap & Washer Kit Part #
1610 1.880 5.310 1.939 30 I 5.250 3.749 M 4.750 0.509-D 8 90-86-18 5-3-3211KX

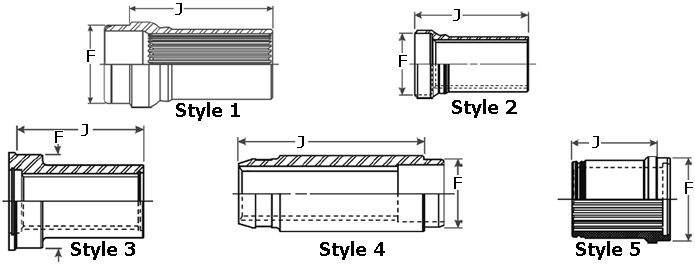

Dana Slip Yokes Catalogue -

Splined Sleeve

Series Dimension D Dimension E Spline O.D. # of Splines (J) End of Spline to Weld Style Fits Tube Yoke Part Number Mates with Part Number (F) Butt Diameter Splined Sleeve Detail Part #
1310 1.060 3.470 0.0M1.375 16 5.030 4 2-28-3707X 211256X   2-55-51 2-55-51
1310 1.060 3.470 0.0M1.375 16 5.030 4 2-28-3707X 211256X   2-55-51 2-55-51
1310 1.060 3.470 0.0M3.002 22/23 I 3.580 5 32-38-12 2-82-1901X 3.854 2-55-141 2-55-258X
1310 1.060 3.470 0.0M3.002 22/23 0.049 5 5001726 2-82-1971X 3.815 5002371 5002372
1310 1.060 3.470 0.0M3.002 22/23 I 3.910 5 32-38-12 2-82-1971X 3.854 2-55-181 2-55-268X
1410 1.190 4.440 0.0M1.750 16 4.410 3 211140X 3-82-781 2.594 3-55-33 3-55-38X
1550 1.380 5.250 0.0M2.000 16 4.560 3 210833X-* 4-82-211 3.320 4-55-43 4-55-48X
1710 1.940 6.090 0.0M2.500 16 5.720 3 211110X-* 6-82-1131-2 5.020 6-55-43 6-55-38X
1810 1.940 7.550 0.0M3.000 16 7.750 3 211570X-* 6.5-82-451-1 5.757 8-55-103 8-55-113X
1810 1.940 7.550 0.0M3.000 16 7.750 3 211180X-* 6.5-82-451-1 5.020 8-55-33 8-55-43X
SPL140     78.0M3.071 30 I 6.713 1 100-30-3 140-82-21X 3.937 140-55-11 140-55-21X
SPL170 2.170 6.020 0.0M3.465 34 I 9.559 2 170-28-27 170-82-71X 4.346 170-55-51-3 170-55-51-3
SPL170 2.170 6.020 0.0M3.465 34 I 7.972 1 110-30-5 170-82-61X 4.350 170-55-11-2 170-55-21-2X
SPL170 2.170 6.020 0.0M3.465 34 I 10.346 2 170-28-37 170-82-71X 4.346 170-55-51-4 170-55-51-4
SPL170 2.170 6.020 0.0M3.465 34 I 7.984 2 170-28-37 170-82-71X 4.346 170-55-51-1 170-55-51-1
SPL170 2.170 6.020 0.0M3.465 32/34 I 8.771 2 170-28-37 170-82-71X 4.346 170-55-51-2 170-55-51-2
SPL170 2.170 6.020 88.0M3.465 34 I 9.153 1 110-30-5 170-82-61X 4.350 170-55-11-1 170-55-21-1X
SPL170 2.170 6.020 88.0M3.465 32/34 I 5.137 2 170-28-37 170-82-191X 4.344 170-55-151 170-55-151
SPL170 2.170 6.020 88.0M3.465 34 I 7.205 2 170-28-37 170-82-131X 4.346 170-55-81 170-55-81
SPL250     98.03M3.858 38 I 6.909 1 120-30-*   4.744 250-55-21 250-55-31X
