Dana Slip Yokes Catalogue -

Splined, DS Style - LD/MD

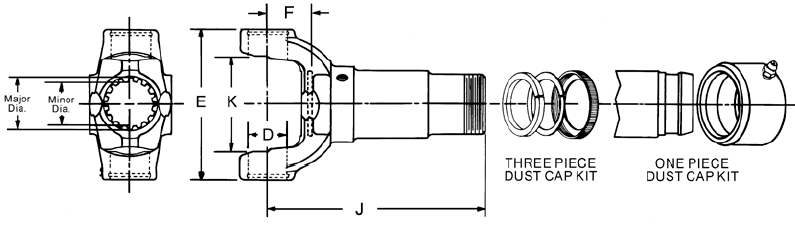

Series Dimension D Dimension E Dimension K Spline O.D. # of Splines (J) C/L to End of Spline Lube Fitting (F) C/L to Plug Face Dust Cap & Washer Kit Slip Yoke Plug # Boot Kit Assy (order separate) Part #
1000 0.940   1.500 1.000 6 5.500 500174-1 1.500       10-3-131X
1000 0.940   1.500 1.125 10 5.500 500174-1         10-3-81X
1000 0.940   1.500 1.156 26 I 5.500 500174-1 1.531 D2L 2-68-23   10-3-291KX
1000 0.940   1.500 1.250 16 4.438 500174-1 1.400 D2A     10-3-121KX
1000 0.940   1.500 1.250 16 5.500 500174-1 1.562 D2A 2-68-23   10-3-18KX
1000 0.940   1.500 1.250 6 5.500 500174-1 1.400       10-3-51X
1100 0.940 2.660   1.062 16 2.875 500174-1 0.938 D1A 1-68-14   1-3-88KX
1100 0.940 2.660   1.062 16 4.312 500174-1 0.938 D1A 1-68-14   1-3-18KX
1210 1.060 2.690   1.219 26/28 I 5.062   1.250   500166-20   2-3-8811X
1210 1.060 2.690   1.219 26/28 I 5.109   1.547   500166-20 211513X 2-3-9991X
1210 1.060 2.690   1.250 14/16 6.344   1.547 211256X 500166-20 211513X 2-3-10521X
1210 1.060 2.690   1.250 14/16 6.375   1.250   500166-20 211344X 2-3-8861X
1310 1.060 3.470   1.250 14/16 6.562   1.438   500166-20 211344X 2-3-10661X
1310 1.060 3.470   1.250 16 3.562 500174-1 1.000 D2B 2-68-23   2-3-3951KX
1310 1.060 3.470   1.250 16 4.125 500174-1 1.000 D2B 2-68-23   2-3-258KX
1310 1.060 3.470   1.250 16 4.688 500174-1 1.000 D2A 2-68-23   2-3-198KX
1310 1.060 3.470   1.250 16 5.000 500174-1 1.000 D2A 2-68-23   2-3-1421KX
1310 1.060 3.470   1.250 16 6.125 500174-1 1.000 D2F 2-68-23   2-3-1461KX
1310 1.060 3.470   1.250 16 6.562 500174-1 1.438 211256X 2-68-23   2-3-8841KX
1310 1.060 3.470   1.250 16 6.562 500174-1 1.438 D2K 2-68-23   2-3-4441KX
1310 1.060 3.470   1.375 15/16 6.000   1.062   500166-22 211916X 2-3-10411X
1310 1.060 3.470   1.375 15/16 6.688 500174-1 1.062 211121X 2-68-143   2-3-7661KX
1310 1.060 3.470   1.375 15/16 6.690   1.062   2-68-28X   2-3-10021X
1310 1.060 3.470   1.375 15/16 6.724   1.417   500166-22 211916X 2-3-12881X
1310 1.060 3.470   1.375 15/16 6.812   1.250   500166-22 211932X 2-3-11351X
1310 1.060 3.470   1.375 15/16 7.875   1.500   500166-22 211916X 2-3-12421X
1310 1.060 3.470   1.375 16 3.750 500174-1 1.000 D2C 3-68-23   2-3-178KX
1310 1.060 3.470   1.375 16 4.188 500174-1 1.000 D2C 3-68-23   2-3-348KX
1310 1.060 3.470   1.375 16 5.375 500174-1 1.000 D2C 3-68-23   2-3-128KX
1310 1.060 3.470   1.375 16 5.375 500174-1 1.000 211121X 3-68-23   2-3-12301KX
1310 1.060 3.470   1.375 16 6.000 500174-1 1.062 D2C 2-68-143   2-3-4951KX
1310 1.060 3.470   1.375 16 6.000 500174-1 1.062 211121X 2-68-143   2-3-7981KX
1310 1.060 3.470   1.375 16 6.344 500174-1 1.062 D2C 2-68-143   2-3-4071KX
1310 1.060 3.470   1.375 16 6.471           2-3-7461X
1310 1.060 3.470   1.375 16 6.750 500174-1 0.875 D2M 3-68-23   2-3-1931KX
1310 1.060 3.470   1.375 16 6.812 500174-1 1.500 211121X 2-68-143   2-3-8001KX
1310 1.060 3.470   1.375 16 6.875 500174-1 1.500   3-68-23   2-3-5221X
1310 1.060 3.470   1.375 16 7.875 500174-1 1.500 211121X 2-68-143   2-3-8021KX
1310 1.060 3.470   1.375 16 7.875 500174-1 1.500   3-68-23   2-3-5821X
1310 1.060 3.470   1.377 31/32 I 6.750   0.875   500166-22 211600X 2-3-10801X
1310 1.060 3.470   1.377 31/32 I 6.750 500174-1 0.875 211121X 2-68-143   2-3-10261KX
1310 1.060 3.470   1.378 31/32 I 6.620 500174-1 1.531 D2N 2-68-134   2-3-7171KX
1310 1.060 3.470   1.378 31/32 I 6.618 500174-1 1.500 211411X 2-68-143   2-3-10641KX
1310 1.060 3.470   1.378 31/32 I 6.618   1.500   2-68-63 211600X 2-3-9371X
1310 1.060 3.470   1.390 31/32 I 5.062 231330 1.438 2-86-298 500166-22   2-3-8481X
1310 1.060 3.470   1.390 31/32 I 5.062 500174-1 1.438 211121X 3-68-23   2-3-8311X
1310 1.060 3.470   1.390 31/32 I 5.062   1.438   500166-22   2-3-8741X
1310 1.060 3.470   1.500 16 2.906 500174-1 0.656 D3F 2-68-64   2-3-7691KX
1310 1.060 3.470   1.500 16 6.875 500174-1 1.531 D3A 3-68-33   2-3-6061KX
1330 1.060 3.880 OR 3.630   1.284 29/30 I 6.600   1.100   500166-22   2-3-13221X
1330 1.060 3.880 OR 3.630   1.338 18/20 I 6.724   1.102   500166-22 211932X 2-3-15651X
1330 1.060 3.880 OR 3.630   1.338 19/20 I 6.700   1.000   500166-22 212094X 2-3-13831X
1330 1.060 3.880 OR 3.630   1.375 14/16 6.720   1.102   500166-22 211932X 2-3-14331X
1330 1.060 3.880 OR 3.630   1.375 14/16 7.039   1.417   500166-22 211932X 5006028
1330 1.060 3.880 OR 3.630   1.375 15/16 5.410   1.060   500166-22 211916X 2-3-13571X
1330 1.060 3.880 OR 3.630   1.375 15/16 6.000   1.000   500166-22 211916X 2-3-8921X
1330 1.060 3.880 OR 3.630   1.375 15/16 6.620   1.000   500166-22 211932X 2-3-11991X
1330 1.060 3.880 OR 3.630   1.375 15/16 6.625 500174-1 1.000 211121X 3-68-23   2-3-7681KX
1330 1.060 3.880 OR 3.630   1.375 15/16 6.625   1.000 211121X 2-68-28X   2-3-11491KX
1330 1.060 3.880 OR 3.630   1.375 15/16 6.625   1.000 211121X 500166-22 211932X 2-3-11991KX
1330 1.060 3.880 OR 3.630   1.375 15/16 7.500 500174-1 1.000 211121X 3-68-23 211463X 2-3-8941KX
1330 1.060 3.880 OR 3.630   1.375 16 6.000 500174-1 1.000 211121X 2-68-143   2-3-7961KX
1330 1.060 3.880 OR 3.630   1.375 16 6.000 500174-1 1.000 D3E 3-68-23   2-3-4681KX
1330 1.060 3.880 OR 3.630   1.375 16 7.500 500174-1 1.000 211121X 2-68-28X   2-3-12031X
1330 1.060 3.880 OR 3.630   1.375 16 7.500   1.000   3-68-23   2-3-7481X
1330 1.060 3.880 OR 3.630   1.375 16 7.500 500174-1 1.000 211121X 3-68-23   2-3-8041KX
1330 1.060 3.880 OR 3.630   1.378 31/32 I 6.000 500174-1 1.000 211121X 2-68-143   2-3-10571KX
1330 1.060 3.880 OR 3.630   1.500 15/16 7.312   1.188   3-68-33   2-3-10871X
1330 1.060 3.880 OR 3.630   1.500 15/16 7.500 500174-1 1.000 211158X 3-68-33   2-3-8111KX
1330 1.060 3.880 OR 3.630   1.500 16 8.182           211391X
1350 1.190 3.880   1.375 15/16 6.810 500174-1 1.190 211121X 3-68-33   3-3-2701KX
1350 1.190 3.880   1.375 16 5.250 500174-1 1.188 D3E 3-68-33   3-3-758KX
1350 1.190 3.880   1.375 16 5.688 500174-1 1.188 D2C 3-68-33   3-3-1421KX
1350 1.190 3.880   1.375 16 5.812 500174-1 1.188 D3G 3-68-33   3-3-1501KX
1350 1.190 3.880   1.375 16 6.625 500174-1 1.188 D3G 3-68-33   3-3-2591KX
1350 1.190 3.880   1.377 31/32 I 6.625 500174-1 1.188 D3F 3-68-33   3-3-2471KX
1350 1.190 3.880   1.390 30/31 I 4.810   1.190   500166-22   3-3-3001X
1350 1.190 3.880   1.463 21/22 I 7.310   1.160   500166-24 212094X 3-3-6381X
1350 1.190 3.880   1.463 21/22 I 7.312   1.190   500166-24 211503X 3-3-6981X
1350 1.190 3.880   1.463 21/22 I 7.312   1.190   500166-24 211503X 3-3-6201X
1350 1.190 3.880   1.500 14/16 7.312   1.188   500166-24 212010X 3-3-4781X
1350 1.190 3.880   1.500 14/16 7.312   1.188   500166-24 211916X 3-3-5461X
1350 1.190 3.880   1.500 15/16 6.938   1.188   500166-24 211503X 3-3-4651X
1350 1.190 3.880   1.500 15/16 7.310 500174-1 1.188 211158X 3-68-33   3-3-5921KX
1350 1.190 3.880   1.500 15/16 7.312 500174-1 1.188 211158X 3-68-33 211503X 3-3-2801KX
1350 1.190 3.880   1.500 16 3.344 500174-1 1.062 D3A 3-68-104   3-3-2931KX
1350 1.190 3.880   1.500 16 3.688 500174-1 1.188 D3A 3-68-33   3-3-398KX
1350 1.190 3.880   1.500 16 3.938 500174-1 1.188 D3A 3-68-33   3-3-388KX
1350 1.190 3.880   1.500 16 4.938 500174-1 1.188 D3K 3-68-33   3-3-5181KX
1350 1.190 3.880   1.500 16 5.812 500174-1 1.312 D3A 3-68-33   3-3-598KX
1350 1.190 3.880   1.500 16 6.719 500174-1 1.188 D3A 3-68-33   3-3-1561KX
1350 1.190 3.880   1.500 16 7.312 500174-1 1.188 D3A 3-68-33   3-3-488KX
1350 1.190 3.880   1.500 16 7.930   1.156   3-68-33 211503X 3-3-3601X
1350 1.190 3.880   1.500 16 8.000 500174-1 1.188 D3A 3-68-33   3-3-2681KX
1410 1.190 4.440   1.375 16 5.240   1.160 D3G     3-3-4421X
1410 1.190 4.440   1.375 16 5.250 500174-1 1.156 D3E 3-68-33   3-3-788KX
1410 1.190 4.440   1.375 16 5.812 500174-1 1.156 D3G 3-68-33   3-3-1481KX
1410 1.190 4.440   1.463 21/22 I 7.280   1.160   500166-24 212094X 3-3-6611X
1410 1.190 4.440   1.463 21/22 I 7.280   1.160   500166-24 211503X 3-3-6791X
1410 1.190 4.440   1.463 21/22 I 7.310   1.160   500166-24 212094X 3-3-6341X
1410 1.190 4.440   1.463 21/22 I 7.311   1.161   500166-24 212094X 3-3-6701X
1410 1.190 4.440   1.500 14/16 7.281   1.156   500166-24 211503X 3-3-5491X
1410 1.190 4.440   1.500 14/16 7.281   1.156   500166-24 212010X 3-3-4871X
1410 1.190 4.440   1.500 15/16 7.281 500174-1 1.156 211158X 3-68-33   3-3-5411KX
1410 1.190 4.440   1.500 15/16 7.812 500167-2 1.344 D3A 3-68-18X   3-3-748KX
1410 1.190 4.440   1.500 15/16 8.562 500174-1 1.344 D3F 3-68-63   3-3-768KX
1410 1.190 4.440   1.500 16 3.906 500174-1 1.156 D3A 3-68-33   3-3-468KX
1410 1.190 4.440   1.500 16 4.410   1.160 211158X 3-68-33   3-3-3461X
1410 1.190 4.440   1.500 16 5.250 500174-1 1.156 D3K 3-68-33   3-3-2041KX
1410 1.190 4.440   1.500 16 6.500 500174-1 1.156 D3A 3-68-33   3-3-118KX
1410 1.190 4.440   1.500 16 6.688 500174-1 1.344 D3B 3-68-33   3-3-798KX
1410 1.190 4.440   1.500 16 7.812 500174-1 1.344   3-68-33   3-3-4551X
1410 1.190 4.440   1.500 16 7.812 500174-1 1.344 211158X 3-68-33   3-3-5481KX
1410 1.190 4.440   1.500 16 7.812 500174-1 1.344 D3A 3-68-33   3-3-508KX
1410 1.190 4.440   1.500 16 8.562 500174-1 1.344 D3J 3-68-113   3-3-1831KX
1410 1.190 4.440   1.528 23 I 6.810   1.312 211158X 3-68-163   3-3-6641X
1410 1.190 4.440   1.562 16 6.812 500174-1 1.312 D3H 3-68-163   3-3-1701KX
1410 1.190 4.440   1.587 23/24 I 6.720   1.220   500166-26 212007X 3-3-7001X
1410 1.190 4.440   1.605 15 I 5.750 500174-1 1.344 D4G 3-68-163   3-3-3871KX
1410 1.190 4.440   1.654 20 I 4.812   1.312   3-68-183   3-3-3791X
1410 1.190 4.440   1.750 16 3.250 500174-1 1.188 D4F 3-68-54   3-3-1511KX
1480 1.380 4.440   1.562 16 6.000   1.312   3-68-163   3-3-5141X
1480 1.380 4.440   1.562 16 6.812 500174-1 1.312 D3J 3-68-163   3-3-1601KX
1480 1.380 4.440   1.562 16 9.500 500174-1 2.000 D3H 3-68-163   3-3-1641KX
1480 1.380 4.440   1.564 23/24 I 6.810   1.312   500166-26 212007X 3-3-6061X
1480 1.380 4.440   1.587 23/24 I 6.810   1.312   500166-26 212007X 3-3-7021X
1480 1.380 4.440   1.784 27 I 3.719   1.109   3-68-203   3-3-3121X
1480 1.380 4.440   2.250 10 3.719 500174-1 1.188 D3D 3-68-93   3-3-1621KX
1550 1.380 5.250   1.750 16 10.062 500168-2 2.062 D4J 4-68-143   4-3-1431KX
1550 1.380 5.250   1.750 16 5.375 500168-2 1.375 D4M 4-68-143   4-3-1751KX
1550 1.380 5.250   1.750 16 6.875 500168-2 1.375 D4K 4-68-143   4-3-1241KX
1550 1.380 5.250   1.750 16 7.562 500168-2 2.062 D4M 4-68-143   4-3-2121KX
1550 1.380 5.250   1.750 16 8.125 500168-2 1.375 D4J 4-68-143   4-3-1411KX
1550 1.380 5.250   1.750 16 9.063 500168-2 2.062 D4M 4-68-143   4-3-2141KX
1550 1.380 5.250   2.000 16 4.875 500168-2 1.469 5-86-68 4-68-43   4-3-1921KX
1550 1.380 5.250   2.000 16 8.812 500167-2 2.730 5-86-68 5-68-78X   4-3-2041KX
1550 1.380 5.250   2.500 16 3.500 500168-2 1.125 D4L 4-68-74   4-3-1261KX
5C       1.564 23/24 I 6.890   1.437 4-86-48 4-68-193   5C-3-21X
6C       1.939 30 I 6.574   1.122 4-86-58 5-68-224   6C-3-21X
SPL100 1.630 5.380   1.965 29/30 I 9.681   1.783   5-68-164 212146X 100-3-41X
SPL55 1.370 4.440   1.587 23/24 I 7.949   1.732   500166-26 212094X 55-3-61X
SPL55 1.370 4.440   1.587 23/24 I 9.122   1.732   500166-26 212094X 55-3-81X
SPL70 1.380 5.250   1.76 26/27 I 8.480   1.890   70-68-18X 212146X 70-3-21X
SPL70 1.380 5.250   1.776 26/27 I 9.279   1.890   70-68-18X 212146X 70-3-41X
SPL90 1.630 5.380   1.939 30 I 10.100 500174-1 1.797 90-86-18 5-68-108X   90-3-21X
SPL90 1.630 5.380   1.939 30 I 8.250 500174-1 1.750 90-86-18 5-68-164   90-3-41X



Dana Slip Yokes Catalogue -

Splined, DS Style - HD

Series Dimension D Dimension E Dimension K Spline O.D. # of Splines (J) C/L to End of Spline Lube Fitting (F) C/L to Plug Face Dust Cap & Washer Kit Slip Yoke Plug # Style Part #
        1.375 16 6.812 500174-1 1.500 D2M 2-68-143 SR 2-3-10621KX
        1.564 23/24       4-86-48 4-68-193 WB 5C-3-21X
        1.939 30 I       4-86-58   WB 6C-3-32X
        2.000 16 10.312 500168-2 1.938 5-86-68 5-68-174 BP 5-3-1411KX
        2.000 16 10.312 500168-2 2.440 5-86-68 5-68-164 BP 5-3-1711KX
        2.000 16 10.812 500168-2 3.188 5-86-68 5-68-164 BP 5-3-2261KX
        2.000 16 11.938 500168-2 3.688 5-86-68 5-68-164 BP 5-3-3121KX
        2.000 16 5.406   2.688   5-68-154 BP 5-3-2911X
        2.000 16 6.750 500168-2 2.688 5-86-68 5-68-174 BP 5-3-398KX
        2.000 16 7.812 500168-2 1.440 5-86-68 5-68-174 BP 5-3-108KX
        2.000 16 8.875 500168-2 1.440 5-86-68 5-68-174 BP 5-3-368KX
        2.000 16 9.312 500168-2 3.188 5-86-68 5-68-174 BP 5-3-288KX
        2.000 16 9.812 500168-2 2.688 5-86-68 5-68-174 BP 5-3-128KX
        2.500 15/16 11.688 500168-2 2.438 6.3-86-18 6-68-38X BP 6-3-3171KX
        2.500 15/16 12.719 500168-2 3.219 6.3-86-18 6-68-38X BP 6-3-3541KX
        2.500 15/16 7.469   1.720   6-68-48X BP 6-3-3211X
        2.500 16 10.310 500168-2 2.440 6.3-86-18 6-68-38X BP 6-3-3151KX
        2.500 16 10.312   2.440 6.3-86-18 6-68-38X BP 6-3-3611KXM
        2.500 16 10.719 500168-2 3.219 6.3-86-18 6-68-64 BP 6-3-3481KX
        2.500 16 11.156 500168-2 2.469 6.3-86-18 6-68-64 BP 6.3-3-21KX
        2.500 16 11.688 500168-2 2.438 6.3-86-18 6-68-64 BP 6-3-2651KX
        2.500 16 11.719 500168-2 3.219 6.3-86-18 6-68-64 BP 6-3-3461KX
        2.500 16 11.969 500168-2 3.219 6.3-86-18 6-68-64 BP 6-3-3501KX
        2.500 16 11.969 500168-2 3.219 6.3-86-18 6-68-64 BP 6-3-2591KX
        2.500 16 12.719 500168-2 3.219 6.3-86-18 6-68-64 BP 6-3-3441KX
        2.500 16 6.719 500168-2 1.719 6.3-86-18 6-68-74 BP 6-3-2761KX
        2.500 16 7.469 500168-2 1.719 6.3-86-18 6-68-74 BP 6-3-2741KX
        2.500 16 7.970 500168-2 1.719 6.3-86-18 6-68-74 BP 6-3-2801KX
        2.500 16 8.469   1.719   6-68-74 BP 6-3-2721X
        2.500 16 8.844 500168-2 1.719 6.3-86-18 6-68-74 BP 6-3-2631KX
        2.500 16 9.250 500168-2 2.922 6.3-86-18 6-68-74 BP 6.3-3-41KX
        2.500 16 9.344 500174-1 2.516 6.3-86-18 6-68-74 BP 6-3-3521KX
        2.500 16 9.500 500168-2 2.000 6.3-86-18 6-68-64 BP 5-3-3101KXM
        2.500 16 9.594 500168-2 1.719 6.3-86-18 6-68-74 BP 6-3-2671KX
        2.500 9/10 11.000 500168-2 3.250 D6B 6-68-63 BP 6-3-1601KX
        2.672 18 I 4.875 500168-2 1.812 D5C 5-68-33 BP 5-3-2971X
        2.676 18 I 3.500 500168-2 1.250   5-68-33 BP 5-3-3231X
        2.676 18 I 3.500 500168-2 1.250 D5C 5-68-33 BP 5-3-168KX
        2.676 18 I 4.250 500168-2 1.250 D5C 5-68-33 BP 5-3-198KX
        3.000 16 10.031 500168-2 2.031 6.5-86-38 8-68-13 BP 8-3-391KX
        3.000 16 10.250 500168-2 2.375 6.5-86-38 6.5-68-64 BP 6.5-3-1351KX
        3.000 16 11.656 500168-2 2.469 6.5-86-38 8-68-13 BP 8-3-411KX
        3.000 16 11.875 500168-2 2.375 6.5-86-38 6.5-68-64 BP 6.5-3-1371KX
        3.000 16 8.062 500168-2 2.969 6.5-86-38 6.5-68-74 BP 6.5-3-1571KX
        3.000 16 8.938 500168-2 1.562 6.5-86-38 6.5-68-74 BP 6.5-3-1431KX
        3.250 18 I 4.125 500168-2 1.375 D6E 6-68-53 BP 6-3-1661KX
        3.250 18 I 4.875 500168-2 1.375 D6E 6-68-53 BP 6-3-1481KX
        3.250 18 I 5.375 500168-2 1.500 D6E 6-68-53 BP 6.5-3-1451KX
        4.156 24 I 5.031 500168-2 1.750 D9A 8-68-24 BP 8-3-431KX
1610 1.880 5.310   2.000 16 10.312 500168-2 1.938 5-86-68 5-68-174 BP 5-3-1411KX
1610 1.880 5.310   2.000 16 10.312 500168-2 2.440 5-86-68 5-68-164 BP 5-3-1711KX
1610 1.880 5.310   2.000 16 10.812 500168-2 3.188 5-86-68 5-68-164 BP 5-3-2261KX
1610 1.880 5.310   2.000 16 11.938 500168-2 3.688 5-86-68 5-68-164 BP 5-3-3121KX
1610 1.880 5.310   2.000 16 5.406   2.688   5-68-154 BP 5-3-2911X
1610 1.880 5.310   2.000 16 6.750 500168-2 2.688 5-86-68 5-68-174 BP 5-3-398KX
1610 1.880 5.310   2.000 16 7.812 500168-2 1.440 5-86-68 5-68-174 BP 5-3-108KX
1610 1.880 5.310   2.000 16 8.875 500168-2 1.440 5-86-68 5-68-174 BP 5-3-368KX
1610 1.880 5.310   2.000 16 9.312 500168-2 3.188 5-86-68 5-68-174 BP 5-3-288KX
1610 1.880 5.310   2.000 16 9.812 500168-2 2.688 5-86-68 5-68-174 BP 5-3-128LX
1610 1.880 5.310   2.500 16 9.500 500168-2 2.000 6.3-86-18 6-68-64 BP 5-3-3101KXM
1610 1.880 5.310   2.672 18 I 4.875 500168-2 1.812 D5C 5-68-33 BP 5-3-2971X
1610 1.880 5.310   2.676 18 I 3.500 500168-2 1.250   5-68-33 BP 5-3-3231X
1610 1.880 5.310   2.676 18 I 3.500 500168-2 1.250 D5C 5-68-33 BP 5-3-168KX
1610 1.880 5.310   2.676 18 I 4.250 500168-2 1.250 D5C 5-68-33 BP 5-3-198KX
1710 1.940 6.090   2.500 15/16 11.688 500168-2 2.438 6.3-86-18 6-68-38X BP 6-3-3171KX
1710 1.940 6.090   2.500 15/16 12.719 500168-2 3.219 6.3-86-18 6-68-38X BP 6-3-3541KX
1710 1.940 6.090   2.500 15/16 7.469   1.720   6-68-48X BP 6-3-3211X
1710 1.940 6.090   2.500 16 10.310 500168-2 2.440 6.3-86-18 6-68-38X BP 6-3-3151KX
1710 1.940 6.090   2.500 16 10.312   2.440 6.3-86-18 6-68-38X BP 6-3-3611KXM
1710 1.940 6.090   2.500 16 10.719 500168-2 3.219 6.3-86-18 6-68-64 BP 6-3-3481KX
1710 1.940 6.090   2.500 16 11.688 500168-2 2.438 6.3-86-18 6-68-64 BP 6-3-2651KX
1710 1.940 6.090   2.500 16 11.719 500168-2 3.219 6.3-86-18 6-68-64 BP 6-3-3461KX
1710 1.940 6.090   2.500 16 11.969 500168-2 3.219 6.3-86-18 6-68-64 BP 6-3-3501KX
1710 1.940 6.090   2.500 16 11.969 500168-2 3.219 6.3-86-18 6-68-64 BP 6-3-2591KX
1710 1.940 6.090   2.500 16 12.719 500168-2 3.219 6.3-86-18 6-68-64 BP 6-3-3441KX
1710 1.940 6.090   2.500 16 6.719 500168-2 1.719 6.3-86-18 6-68-74 BP 6-3-2761KX
1710 1.940 6.090   2.500 16 7.469 500168-2 1.719 6.3-86-18 6-68-74 BP 6-3-2741KX
1710 1.940 6.090   2.500 16 7.970 500168-2 1.719 6.3-86-18 6-68-74 BP 6-3-2801KX
1710 1.940 6.090   2.500 16 8.469   1.719   6-68-74 BP 6-3-2721KX
1710 1.940 6.090   2.500 16 8.844 500168-2 1.719 6.3-86-18 6-68-74 BP 6-3-2631KX
1710 1.940 6.090   2.500 16 9.344 500174-1 2.516 6.3-86-18 6-68-74 BP 6-3-3521KX
1710 1.940 6.090   2.500 16 9.594 500168-2 1.719 6.3-86-18 6-68-74 BP 6-3-2671KX
1710 1.940 6.090   2.500 9/10 11.000 500168-2 3.250 D6B 6-68-63 BP 6-3-1601KX
1710 1.940 6.090   3.250 18 I 4.125 500168-2 1.375 D6E 6-68-53 BP 6-3-1661KX
1710 1.940 6.090   3.250 18 I 4.875 500168-2 1.375 D6E 6-68-53 BP 6-3-1481KX
1760 1.940 7.000   2.500 16 11.156 500168-2 2.469 6.3-86-18 6-68-64 BP 6.3-3-21KX
1760 1.940 7.000   2.500 16 9.250 500168-2 2.922 6.3-86-18 6-68-74 BP 6.3-3-41KX
1810 1.940 7.550   3.000 16 10.250 500168-2 2.375 6.5-86-38 6.5-68-64 BP 6.5-3-1351KX
1810 1.940 7.550   3.000 16 11.875 500168-2 2.375 6.5-86-38 6.5-68-64 BP 6.5-3-1371KX
1810 1.940 7.550   3.000 16 8.062 500168-2 2.969 6.5-86-38 6.5-68-74 BP 6.5-3-1571KX
1810 1.940 7.550   3.000 16 8.938 500168-2 1.562 6.5-86-38 6.5-68-74 BP 6.5-3-1431KX
1810 1.940 7.550   3.250 18 I 5.375 500168-2 1.500 D6E 6-68-53 BP 6.5-3-1451KX
1880 2.190 8.090   3.000 16 10.031 500168-2 2.031 6.5-86-38 8-68-13 BP 8-3-391KX
1880 2.190 8.090   3.000 16 11.656 500168-2 2.469 6.5-86-38 8-68-13 BP 8-3-411KX
1880 2.190 8.090   4.156 24 I 5.031 500168-2 1.750 D9A 8-68-24 BP 8-3-431KX
5C       1.564 23/24       4-86-48 4-68-193 WB 5C-3-21KX
7260 1.080   2.130 1.375 16 6.812 500174-1 1.500 D2M 2-68-143 SR 2-3-10621KX
