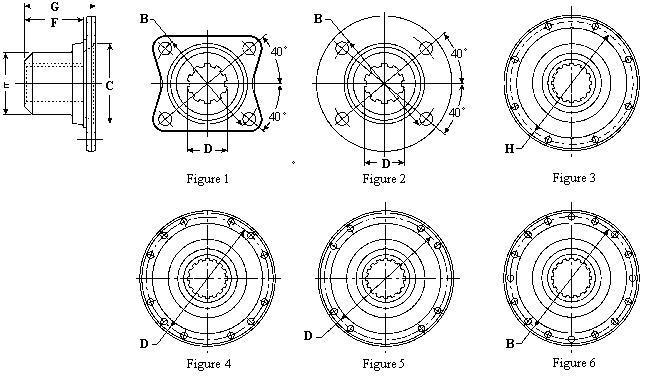

Dana Companion Flanges - Splined Hole Catalogue
| Spline OD (D) |
# of Splines | Pilot Diameter (C) M=Male F=Female |
Bolt Circle
Diameter (B) |
Bolt Hole Diameter D=Drilled T=Tapped |
# of Holes | Drum Pilot Diameter |
Hub Diameter (E) |
Part # |
| 1.010 | 15 I | 2.375 F | 3.125 | .375 D | 4 | 2.125 | 2-1-2581 | |
| 1.145 | 26 I | 2.750 M | 3.750 | 0.438-20 T | 4 | 1.547 | 3-1-4371 | |
| 1.146 | 26 I | 2.375 F | 3.125 | .375 D | 4 | 2.550 | 1.554 | 2-1-1881X |
| 1.229 | 28 I | 2.750 M | 3.750 | 0.438-20 T | 4 | 1.844 | 2-1-2341 | |
| 1.250 | 10 | 2.375 F | 3.125 | .375 D | 4 | 2.500 | 1.750 | 2-1-1641 |
| 1.250 | 10 | 2.750 M | 3.750 | .438 D | 4 | 2.000 | 3-1-3851 | |
| 1.276 | 29 I | 2.750 F | 3.750 | .438 D | 4 | 1.875 | 3-1-4041X | |
| 1.375 | 10 | 2.375 F | 3.125 | .375 D | 4 | 2.500 | 2.125 | 2-1-2091 |
| 1.375 | 10 | 2.750 F | 3.750 | .375 D | 4 | 3.109 | 1.938 | 3-1-1181 |
| 1.375 | 10 | 2.750 F | 3.750 | 4.38 D | 4 | 3.000 | 2.125 | 3-1-751 |
| 1.375 | 10 | 2.750 F | 3.750 | .438 D | 4 | 2.125 | 3-1-4141 | |
| 1.375 | 10 | 2.750 F | 3.750 | .438 D | 4 | 1.750 | 3-1-3881 | |
| 1.375 | 10 | 2.750 F | 3.750 | .438 D | 4 | 3.000 | 2.125 | 3-1-2011 |
| 1.375 | 10 | 2.750 F | 3.750 | .438 D | 4 | 3.000 | 1.938 | 3-1-2931 |
| 1.375 | 10 | 2.750 F | 3.750 | .438 D | 4 | 3.000 | 2.125 | 3-1-2311 |
| 1.375 | 10 | 2.750 F | 3.750 | .438 D | 4 | 3.000 | 2.125 | 3-1-4001 |
| 1.375 | 10 | 2.750 F | 4.750 | .500 D | 4 | 3.750 | 2.109 | 4-1-3151 |
| 1.401 | 32 I | 2.750 M | 3.750 | .438 D | 4 | 2.125 | 3-1-4271 | |
| 1.499 | 10 | 2.750 F | 3.750 | .438 D | 4 | 3.000 | 2.242 | 3-1-811 |
| 1.499 | 10 | 2.751 F | 3.750 | .438 D | 4 | 3.000 | 2.127 | 3-1-2181 |
| 1.500 | 10 | 2.750 F | 3.750 | .438 D | 4 | 3.112 | 2.250 | 3-1-3341 |
| 1.500 | 10 | 2.750 F | 3.750 | .438 D | 4 | 3.000 | 2.125 | 3-1-2431 |
| 1.500 | 10 | 2.750 F | 3.750 | .438 D | 4 | 3.000 | 2.250 | 3-1-3191 |
| 1.500 | 10 | 2.750 F | 3.750 | .438 D | 4 | 3.112 | 2.000 | 3-1-3431 |
| 1.500 | 10 | 2.750 F | 3.750 | .438 D | 4 | 2.875 | 2.125 | 3-1-1151 |
| 1.500 | 10 | 2.750 F | 3.750 | .438 D | 4 | 2.250 | 3-1-1141 | |
| 1.500 | 10 | 3.125 M | 3.969 | .438 T | 4 | 2-1-2501 | ||
| 1.500 | 10 | 3.750 F | 4.750 | .500 D | 4 | 3.750 | 2.250 | 4-1-3441 |
| 1.500 | 10 | 3.750 F | 4.750 | .500 D | 4 | 3.750 | 2.125 | 4-1-2701 |
| 1.500 | 10 | 6.625 F | 6.125 | .375 D | 8 | 6.875 | 2.125 | 5-1-2421 |
| 1.516 | 35 I | 2.750 F | 3.750 | .438 D | 4 | 2.875 | 2.125 | 3-1-3651 |
| 1.520 | 23 I | 2.750 F | 3.750 | .438 D | 4 | 2.125 | 3-1-3971 | |
| 1.525 | 35 I | 3.750 M | 4.750 | .500 D | 4 | 3.875 | 2.500 | 4-1-4121 |
| 1.605 | 15 I | 3.125 M | 3.960 | .438 T | 2.125 | 2-1-2511 | ||
| 1.625 | 10 | 2.750 F | 3.750 | .438 D | 4 | 3.000 | 2.375 | 3-1-3531 |
| 1.625 | 10 | 3.750 F | 4.750 | .500 D | 4 | 2.375 | 4-1-2751 | |
| 1.625 | 10 | 3.750 M | 4.750 | .500 D | 4 | 2.250 | 4-1-3571 | |
| 1.750 | 10 | 2.750 F | 3.750 | .438 D | 4 | 3.109 | 2.625 | 3-1-1521 |
| 1.750 | 10 | 2.750 F | 3.750 | .438 D | 4 | 3.000 | 2.250 | 3-1-3211 |
| 1.750 | 10 | 3.750 F | 4.750 | .500 D | 4 | 3.750 | 2.500 | 4-1-3891 |
| 1.750 | 10 | 3.750 F | 4.750 | .500 D | 4 | 2.500 | 4-1-5131 | |
| 1.750 | 10 | 3.750 F | 4.750 | .500 D | 4 | 2.500 | 4-1-3331X | |
| 1.750 | 10 | 3.750 F | 4.750 | .500 D | 4 | 3.875 | 2.375 | 4-1-3171 |
| 1.750 | 10 | 3.750 F | 4.750 | .500 D | 4 | 2.625 | 4-1-3101 | |
| 1.750 | 10 | 3.750 F | 4.750 | .500 D | 4 | 3.750 | 2.250 | 4-1-1381 |
| 1.750 | 10 | 3.750 M | 4.750 | .500 D | 4 | 2.500 | 4-1-3721 | |
| 1.750 | 10 | 3.750 M | 4.750 | .500 D | 4 | 2.500 | 4-1-5211X | |
| 1.750 | 10 | 5.312 M | 6.125 | .375 D | 8 | 2.500 | 5-1-6541X | |
| 1.750 | 10 | 6.625 F | 6.125 | .375 D | 8 | 2.625 | 5-4-811 | |
| 1.750 | 10 | 7.750 F | 7.250 | .375 D | 8 | 2.750 | 6-1-1761 | |
| 1.755 | 13 I | 3.750 F | 4.750 | .509 D | 4 | 4-1-5341 | ||
| 1.755 | 13 I | 6.625 F | 6.125 | .375 D | 8 | 3.062 | 5-1-6511 | |
| 1.790 | 34 I | 3.750 F | 4.750 | .500 D | 4 | 2.562 | 4-1-4501X | |
| 1.790 | 34 I | 3.750 M | 4.750 | .500 D | 4 | 2.562 | 4-1-5201X | |
| 1.790 | 34 I | 3.750 M | 4.750 | .500 D | 4 | 2.562 | 4-1-4481X | |
| 1.790 | 34 I | 5.312 M | 6.125 | .375 D | 8 | 2.562 | 5-1-5151X | |
| 1.790 | 34 I | 5.312 M | 6.125 | .375 D | 8 | 2.562 | 90-1-21X | |
| 1.790 | 34 I | 6.625 F | 6.125 | .375 D | 8 | 2.562 | 5-1-5121X | |
| 1.790 | 34 I | 7.750 F | 7.250 | .375 D | 8 | 2.562 | 6-1-4701X | |
| 1.922 | 14 I | 3.750 F | 4.750 | .510 D | 4 | 2.375 | 4-1-5451 | |
| 1.922 | 14 I | 6.625 F | 6.125 | .385 D | 8 | 2.375 | 5-1-6891 | |
| 1.960 | 10 | 3.750 F | 4.750 | .500 D | 4 | 2.750 | 4-1-2661 | |
| 1.960 | 10 | 7.750 F | 7.250 | .375 D | 8 | 2.750 | 6-1-1461 | |
| 1.960 | 10 | 7.750 F | 7.250 | .375 D | 8 | 2.812 | 6-1-4641 | |
| 1.961 | 6 | 3.750 F | 4.750 | .500 D | 4 | 2.750 | 4-1-601 | |
| 1.962 | 10 | 5.312 M | 6.125 | .375 D | 8 | 2.750 | 5-1-6561X | |
| 1.962 | 10 | 6.625 F | 6.125 | .375 D | 8 | 2.500 | 5-1-4301 | |
| 1.964 | 10 | 3.750 F | 4.750 | .500 D | 4 | 2.500 | 4-1-3761 | |
| 1.964 | 10 | 3.750 M | 4.750 | .500 D | 4 | 2.938 | 4-1-4421 | |
| 1.964 | 10 | 6.625 F | 6.125 | .375 D | 8 | 2.500 | 5-1-4291 | |
| 1.998 | 38 I | 3.750 F | 4.750 | .500 D | 4 | 2.750 | 4-1-5021 | |
| 1.998 | 38 I | 3.750 M | 4.750 | .500 D | 4 | 2.750 | 4-1-6051X | |
| 1.998 | 38 I | 5.312 M | 6.125 | .375 D | 8 | 2.750 | 5-1-6471X | |
| 1.998 | 38 I | 6.436 M | 7.250 | .375 D | 8 | 2.750 | 6-1-5851X | |
| 2.000 | 10 | 3.750 F | 4.750 | .500 D | 4 | 3.750 | 2.750 | 4-1-3781 |
| 2.000 | 10 | 3.750 F | 4.750 | .500 D | 4 | 2.938 | 4-1-2361 | |
| 2.000 | 10 | 6.625 F | 6.125 | .375 D | 8 | 2.750 | 5-1-3141 | |
| 2.000 | 10 | 6.625 F | 6.125 | .375 D | 8 | 3.250 | 5-1-931 | |
| 2.000 | 10 | 6.625 F | 6.125 | .375 D | 8 | 2.938 | 5-1-3161 | |
| 2.000 | 10 | 7.750 F | 7.250 | .375 D | 8 | 3.250 | 6-1-911 | |
| 2.000 | 10 | 7.750 F | 7.250 | .375 D | 8 | 2.750 | 6-1-2221 | |
| 2.032 | 10 | 7.750 F | 7.250 | .438 D | 12 | 2.750 | 6.5-1-2421 | |
| 2.114 | 32 I | 5.312 M | 6.125 | .385 D | 8 | 3.000 | 5-1-6731X | |
| 2.114 | 32 I | 6.625 F | 6.125 | .375 D | 8 | 3.000 | 5-1-6701X | |
| 2.143 | 41 I | 7.750 F | 7.250 | .440 D | 12 | 2.939 | 6.5-1-2941 | |
| 2.149 | 16 | 6.625 F | 6.125 | .385 D | 8 | 2.938 | 5-1-2551 | |
| 2.225 | 6 | 6.625 F | 6.125 | .375 D | 8 | 3.000 | 5-1-2541 | |
| 2.225 | 6 | 7.750 F | 7.250 | .375 D | 8 | 3.000 | 6-1-1481 | |
| 2.225 | 6 | 7.750 F | 7.250 | .375 D | 8 | 3.000 | 6-1-1731 | |
| 2.225 | 6 | 7.750 F | 7.250 | .438 D | 12 | 3.000 | 6.5-1-481 | |
| 2.250 | 10 | 6.625 F | 6.125 | .375 D | 8 | 3.500 | 5-1-6331 | |
| 2.250 | 10 | 7.750 F | 7.250 | .375 D | 8 | 3.000 | 6-1-1421 | |
| 2.250 | 10 | 7.750 F | 7.250 | .375 D | 8 | 3.500 | 6-1-951 | |
| 2.250 | 10 | 7.750 F | 7.250 | .438 D | 12 | 3.500 | 6.5-1-151 | |
| 2.250 | 10 | 7.750 F | 7.250 | .438 D | 12 | 3.000 | 6.5-1-211 | |
| 2.274 | 44 I | 7.750 F | 7.250 | .438 D | 12 | 2.938 | 6.5-1-2401X | |
| 2.350 | 16 | 7.750 F | 7.250 | .375 D | 8 | 3.312 | 6-1-5581 | |
| 2.350 | 16 | 7.750 F | 7.250 | .438 D | 12 | 3.317 | 6.5-1-1811 | |
| 2.351 | 16 | 7.750 F | 7.250 | .375 D | 8 | 3.750 | 6-1-4571 | |
| 2.364 | 18 I | 7.750 F | 7.250 | .375 D | 8 | 6.656 | 3.500 | 6-1-4541 |
| 2.364 | 18 I | 7.750 F | 7.250 | .438 D | 12 | 3.500 | 6.5-1-1801 | |
| 2.364 | 18 I | 7.750 F | 7.250 | .438 D | 12 | 2.750 | 6.5-1-2301 | |
| 2.374 | 46 I | 7.750 F | 7.250 | .438 D | 12 | 3.750 | 6.5-1-2441 | |
| 2.374 | 46 I | 7.750 F | 7.250 | .438 D | 12 | 3.500 | 6.5-1-2591 | |
| 2.390 | 46 I | 7.750 F | 7.250 | .375 D | 8 | 3.500 | 6-1-4671 | |
| 2.422 | 18 I | 7.750 F | 7.250 | .378 D | 8 | 3.375 | 6-1-5601X | |
| 2.447 | 28 I | 7.750 F | 7.250 | .378 D | 8 | 3.375 | 6-1-6161 | |
| 2.500 | 10 | 7.750 F | 7.250 | .375 D | 8 | 3.750 | 6-1-5651X | |
| 2.500 | 10 | 7.750 F | 7.250 | .375 D | 8 | 3.250 | 6-1-4481 | |
| 2.500 | 10 | 7.750 F | 7.250 | .378 D | 8 | 3.500 | 6-1-6081X | |
| 2.500 | 10 | 7.750 F | 7.250 | .378 D | 8 | 3.250 | 6-1-5741 | |
| 2.500 | 10 | 7.750 F | 7.250 | .438 D | 12 | 3.750 | 6.5-1-2351X | |
| 2.500 | 10 | 7.750 F | 7.250 | .440 D | 12 | 3.500 | 6.5-1-2041 | |
| 2.503 | 19 I | 7.000 F | 8.250 | .625-18 T | 8 | 3.500 | 8-1-191 | |
| 2.503 | 19 I | 7.750 F | 7.250 | .438 D | 12 | 6.625 | 3.500 | 6.5-1-1361 |
| 2.541 | 19 I | 7.750 F | 7.250 | .440 D | 12 | 3.125 | 6.5-1-3001 | |
| 2.544 | 49 I | 7.750 F | 7.250 | .375 D | 8 | 3.818 | 131436K | |
| 2.544 | 49 I | 7.750 F | 7.250 | .375 D | 8 | 3.818 | 5008460 | |
| 2.544 | 49 I | 7.750 F | 7.250 | .375 D | 8 | 3.818 | 131436K | |
| 2.560 | 20 I | 7.750 F | 7.250 | .438 D | 12 | 6.625 | 3.500 | 6.5-1-2161 |
| 2.625 | 25 I | 7.750 F | 7.250 | .375 D | 8 | 3.500 | 6-1-5511 | |
| 2.635 | 20 I | 6.992 M | 8.250 | .625 T | 8 | 4.004 | 8-1-821X | |
| 2.750 | 10 | 6.625 F | 6.125 | .375 D | 8 | 3.750 | 5-1-6611X | |
| 2.750 | 10 | 7.750 F | 7.250 | .438 D | 12 | 4.000 | 6.5-1-1871 | |
| 2.750 | 10 | 7.750 F | 7.250 | .438 D | 12 | 3.500 | 6.5-1-741 | |
| 2.750 | 10 | 7.750 F | 7.250 | .438 D | 12 | 3.750 | 6.5-1-2361X | |
| 2.750 | 10 | 8.000 M | 7.250 | .375 D | 8 | 8.000 | 3.500 | 6-1-2381 |
| 2.784 | 21 I | 6.438 M | 7.250 | .438 D | 16 | 3.500 | 6-1-5231 | |
| 3.000 | 10 | 7.750 F | 7.250 | .440 D | 12 | 4.000 | 6.5-1-951 | |
| 3.503 | 27 I | 6.888 M | 11.024 | .875 D | 8 | 5.003 | 315DIN-1-71X | |
| 3.503 | 27 I | 7.000 F | 8.250 | .625 D | 8 | 5.005 | 8-1-791X |
