Dana Companion Flanges

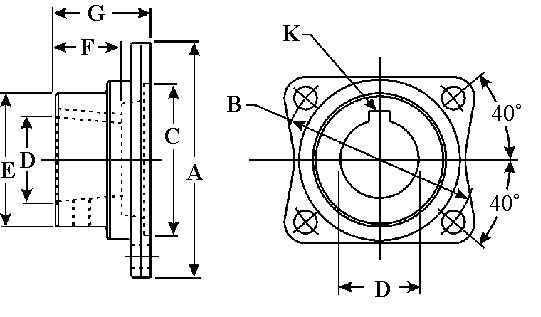

Rectangular - Tapered Hole Catalogue
| Series | Dimension A | Dimension B | SAE Taper
|
(C) Pilot Diameter M=Male F=Female |
(D) Taper Hole Bore Diameter |
Keyway Width (D) |
(E) Hub Diameter |
(F) Length Thru Hole |
(G) Flange Face to Hub End |
Brake Drum Pilot Diameter |
Part # |
| 1310 | 3.880 | 3.130 | 1.375 | 2.375 F | 1.375 | .375 | 2.250 | 2.000 | 2.625 | 2-1-634 | |
| 1310 | 3.880 | 3.130 | 1.500 | 2.375 F | 1.500 | .375 | 2.375 | 2.000 | 2.625 | 2-1-684 | |
| 1350/ 1410 |
1.250 | 2.750 F | 1.250 | .312 | 2.125 | 1.500 | 2.437 | 3.000 | 3-1-604 | ||
| 1350/ 1410 |
1.375 | 2.750 F | 1.375 | .375 | 2.250 | 2.000 | 2.652 | 3-1-584 |

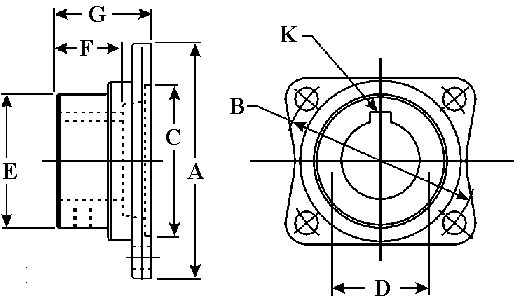

Rectangular with Round Hole Catalogue
| Series | Dimension A | Dimension B | (D) Bore Diameter
|
Keyway Width (K) |
(C) Pilot Diameter M=Male F=Female |
Set Screw Hole Diameter |
Set Screw Hole At |
(E) Hub Diameter |
(F) Length Thru Hole |
(G) Flange Face to Hub End |
Part # |
| 1100 | 3.500 | 2.750 | 0.875 | .188 | 2.250 F | .375 | 6 | 1.875 | 1.500 | 2.125 | 1-1-253 |
| 1100 | 3.500 | 2.750 | 0.875 | .250 | 2.250 F | .375 | 6 | 1.875 | 1.500 | 2.125 | 1-1-293 |
| 1100 | 3.500 | 2.750 | 1.000 | .250 | 2.250 F | .375 | 6 | 1.875 | 1.500 | 2.125 | 1-1-143 |
| 1100 | 3.500 | 2.750 | 1.125 | .250 | 2.250 F | .375 | 6 & 9 | 1.875 | 1.500 | 2.125 | 1-1-153 |
| 1100 | 3.500 | 2.750 | 1.125 | .312 | 2.250 F | .375 | 6 | 1.875 | 1.500 | 2.125 | 1-1-123 |
| 1100 | 3.500 | 2.750 | 1.250 | .312 | 2.250 F | .375 | 3 | 1.875 | 1.500 | 2.125 | 1-1-653 |
| 1100 | 3.500 | 2.750 | 1.250 | .312 | 2.250 F | .375 | 6 | 1.875 | 1.500 | 2.125 | 1-1-273 |
| 1100 | 3.500 | 2.750 | 1.375 | .312 | 2.250 F | .375 | 6 | 2.125 | 1.500 | 2.125 | 1-1-473 |
| 1310 | 3.880 | 3.130 | 0.875 | .188 | 2.375 F | .375 | 6 | 1.875 | 1.500 | 2.062 | 2-1-623 |
| 1310 | 3.880 | 3.130 | 1.000 | .250 | 2.375 F | .375 | 6 | 1.875 | 1.500 | 2.062 | 2-1-283 |
| 1310 | 3.880 | 3.130 | 1.125 | .250 | 2.375 F | .375 | 6 & 9 | 1.875 | 1.500 | 2.062 | 2-1-293 |
| 1310 | 3.880 | 3.130 | 1.125 | .312 | 2.375 F | .375 | 6 | 1.875 | 1.500 | 2.062 | 2-1-303 |
| 1310 | 3.880 | 3.130 | 1.250 | .250 | 2.375 F | .375 | 6 | 1.875 | 1.500 | 2.062 | 2-1-323 |
| 1310 | 3.880 | 3.130 | 1.250 | .312 | 2.375 F | .375 | 6 | 1.875 | 1.500 | 2.062 | 2-1-333 |
| 1310 | 3.880 | 3.130 | 1.375 | .312 | 2.375 F | .375 | 6 | 2.120 | 1.500 | 2.062 | 2-1-903 |
| 1310 | 3.880 | 3.130 | 1.500 | .375 | 2.375 F | .375 | 6 | 2.438 | 2.000 | 2.652 | 2-1-933 |
| 1350 | 4.560 | 3.750 | 1.250 | .312 | 2.750 F | .375 | 6 | 2.250 | 2.000 | 2.562 | 3-1-163 |
| 1350 | 4.560 | 3.750 | 1.500 | .375 | 2.750 F | 2.250 | 2.000 | 2.562 | 3-1-333 | ||
| 1350 | 4.560 | 3.750 | 1.750 | .375 | 2.750 F | .375 | 12 | 2.812 | 3.438 | 3-1-463 | |
| 1480 | 5.880 | 4.750 | 2.000 | .375 | 3.750 F | 3.000 | 2.750 | 3.590 | 4-1-1123 | ||
| 1550 | 5.750 | 4.750 | 1.250 | 3.750 F | 3.000 | 3.062 | 3.625 | 4-1-543 |
