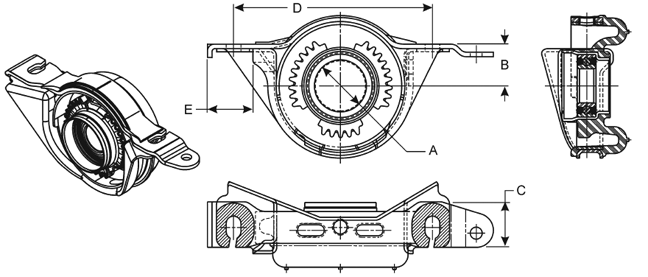

Dana Center Bearings - Style 8
|
Parts not |
sold separately |
─ Shown for info |
purposes |
only | |||||
| B | C |
Center |
Bearing Major |
Parts |
Retainers |
||||
| Center Bearing Assembly Part Number | Centerline to Mounting Surface | Bracket Width | Bracket Part Number | Rubber Cushion Part Number |
Bearing & Retainer Assy
|
Front Slinger Part Number | Rear Slinger Part Number | Bottom | Top |
| A = 1.181 Bearing I.D. |
D = |
6.890 |
Bolt Hole/Stud | Size = .787 X |
.512 (H) |
||||
| 212165-1X | 1.440 | 2.268 | ~ | 212163X | 580931 | ~ | ~ | ~ | ~ |
|
E = 2.087; |
Replaced by |
5009385 |
|||||||
| 212166-1X ● | 1.440 | 2.268 | ~ | 212164X | 580931 | ~ | ~ | ~ | ~ |
| E = 1.693 | |||||||||
| 5009385 | 1.440 | 2.268 | ~ | 5009383 | 580931 | ~ | ~ | ~ | ~ |
| E = 2.087 |
|
● Part is discontinued
All Center Bearing Assembly Parts on this page are not normally in stock.
To verify availability and cost, please call 209-538-8956.
