Dana Yoke Shafts - SPL Catalogue

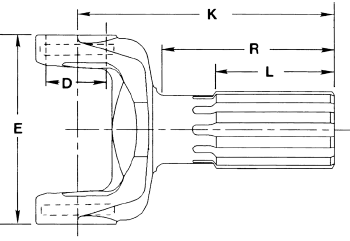

| Series | Dimension D | Dimension E | Spline O.D. | # of Splines | (K) C/L to Spline End | (L) C/L to End of Can/Tube | Style | Boot Can/Tube Assy Part # | Plug Part # | Part # |
| SPL140 | 1.940 | 5.030 | 3.071 | 30 I | 11.811 | 8.661 | 1 | 91-30-2-132M | 140-68-13 | 140-82-21X |
| SPL170 | 2.170 | 6.020 | 3.425 | 34 I | 12.441 | 8.720 | 1 | 100-30-2-115M | 6-68-64 | 170-82-121X |
| SPL170 | 2.170 | 6.020 | 3.464 | 34 I | 11.062 | 7.500 | 1 | 100-30-2-84M | 170-68-23 | 170-82-191X |
| SPL170 | 2.170 | 6.020 | 3.464 | 34 I | 12.441 | 9.350 | 1 | 100-30-2-131M | 170-68-23 | 170-82-131X |
| SPL170 | 2.170 | 6.020 | 3.464 | 34 I | 13.457 | 9.744 | 1 | 100-30-2-141M | 170-68-23 | 170-82-101X |
| SPL170 | 2.170 | 6.020 | 3.464 | 34 I | 13.850 | 7.894 | 1 | 100-30-2-94M | 170-68-23 | 170-82-71X |
| SPL170 | 2.170 | 6.020 | 3.464 | 34 I | 15.031 | 11.516 | 1 | 100-30-2-186M | 170-68-23 | 170-82-61X |
| SPL170 | 2.170 | 6.020 | 3.858 | 38 I | 11.811 | 7.696 | 1 | 109-30-2-94M | 170-68-13 | 170-82-21X |
| SPL250 | 2.360 | 5.980 | 3.818 | 38 I | 8.661 | 5.708 | 1 | 109-30-2-60M | 250-68-13 | 250-82-131X |
| SPL250 | 2.360 | 5.980 | 3.858 | 38 I | 11.811 | 8.555 | 1 | 109-30-2-132M | 250-68-13 | 250-82-21X |
Dana Yoke Shafts - 10 Series Catalogue
| Series | Dimension D | Dimension E | Spline O.D. | # of Splines | (K) C/L to Spline End | (R) Spline End to Point of Radius | (L) Spline Length | Part # |
| 1000 | 0.940 | 2.190 | 1.250 | 16 | 5.562 | 3.688 | 1.625 | 10-82-21 |
| 1100 | 0.940 | 2.660 | 1.060 | 16 | 3.656 | 2.875 | 1.688 | 1-82-21 |
| 1210 | 1.060 | 2.690 | 1.062 | 16 | 3.969 | 2.594 | 1.750 | 2-82-1651 |
| 1210 | 1.060 | 2.690 | 1.250 | 15/16 | 6.250 | 4.125 | 2.000 | 2-82-1641 |
| 1210 | 1.060 | 2.690 | 1.250 | 15/16 | 6.250 | 4.125 | 3.250 | 2-82-1781 |
| 1210 | 1.060 | 2.690 | 1.250 | 15/16 | 8.391 | 7.866 | 2.250 | 2-82-1731 |
| 1310 | 1.060 | 3.470 | 1.156 | 27 I | 8.547 | 6.422 | 1.562 | 2-82-1371 |
| 1310 | 1.060 | 3.470 | 1.250 | 16 | 4.594 | 2.938 | 1.656 | 2-82-211 |
| 1310 | 1.060 | 3.470 | 1.250 | 16 | 5.125 | 3.562 | 1.875 | 2-82-51 |
| 1310 | 1.060 | 3.470 | 1.250 | 16 | 5.812 | 4.156 | 2.000 | 2-82-41 |
| 1310 | 1.060 | 3.470 | 1.250 | 16 | 6.875 | 4.812 | 2.000 | 2-82-431X |
| 1310 | 1.060 | 3.470 | 1.302 | 30 I | 5.625 | 3.875 | 2.500 | 2-82-871 |
| 1310 | 1.060 | 3.470 | 1.375 | 16 | 4.562 | 3.219 | 1.922 | 2-82-11 |
| 1310 | 1.060 | 3.470 | 1.375 | 16 | 4.625 | 3.406 | 2.063 | 2-82-641 |
| 1310 | 1.060 | 3.470 | 1.375 | 16 | 5.312 | 3.844 | 2.250 | 2-82-21 |
| 1310 | 1.060 | 3.470 | 1.375 | 16 | 7.062 | 5.190 | 2.500 | 2-82-58X |
| 1310 | 1.060 | 3.470 | 1.375 | 16 | 9.375 | 6.938 | 2.250 | 2-82-201X |
| 1310 | 1.060 | 3.470 | 1.500 | 16 | 3.656 | 2.406 | 1.440 | 2-82-861 |
| 1310 | 1.060 | 3.470 | 3.000 | 23 I | 7.420 | 4.720 | 3.310 | 2-82-1901X |
| 1310 | 1.060 | 3.470 | 3.000 | 23 I | 7.420 | 4.720 | 3.310 | 2-82-1941X |
| 1330 | 1.060 | 3.630 | 3.000 | 23 I | 8.250 | 5.550 | 4.140 | 2-82-1971X |
| 1350 | 1.190 | 3.880 | 1.175 | 27 | 6.062 | 2.031 | 1.844 | 3-82-1201 |
| 1350 | 1.190 | 3.880 | 1.175 | 27 I | 5.531 | 3.062 | 1.750 | 3-82-1161 |
| 1350 | 1.190 | 3.880 | 1.177 | 27 I | 6.740 | 3.481 | 1.844 | 3-82-1141-1 |
| 1350 | 1.190 | 3.880 | 1.177 | 27 I | 7.290 | 4.031 | 1.844 | 3-82-1141-2 |
| 1350 | 1.190 | 3.880 | 1.252 | 31 I | 4.547 | 1.719 | 1.440 | 3-82-1431 |
| 1350 | 1.190 | 3.880 | 1.252 | 31 I | 4.547 | 1.719 | 1.440 | 3-82-1381 |
| 1350 | 1.190 | 3.880 | 1.302 | 30 I | 6.590 | 5.430 | 2.219 | 3-82-1151-2 |
| 1350 | 1.190 | 3.880 | 1.302 | 30 I | 7.360 | 5.750 | 2.219 | 3-82-1151-1 |
| 1350 | 1.190 | 3.880 | 1.302 | 30 I | 7.422 | 4.340 | 2.000 | 3-82-961-2 |
| 1350 | 1.190 | 3.880 | 1.500 | 10 | 5.820 | 1.500 | 3-82-981 | |
| 1350 | 1.190 | 3.880 | 1.500 | 16 | 4.188 | 2.531 | 1.375 | 3-82-971 |
| 1350 | 1.190 | 3.880 | 1.500 | 16 | 4.812 | 2.781 | 1.750 | 3-82-71 |
| 1350 | 1.190 | 3.880 | 1.500 | 16 | 5.188 | 3.063 | 2.000 | 3-82-61 |
| 1350 | 1.190 | 3.880 | 1.500 | 16 | 5.844 | 3.781 | 2.000 | 3-82-1321 |
| 1350 | 1.190 | 3.880 | 1.500 | 16 | 6.406 | 4.344 | 2.000 | 3-82-341 |
| 1350 | 1.190 | 3.880 | 1.500 | 16 | 6.531 | 4.406 | 2.500 | 3-82-161 |
| 1350 | 1.190 | 3.880 | 1.500 | 16 | 6.812 | 4.688 | 2.500 | 3-82-181 |
| 1350 | 1.190 | 3.880 | 1.500 | 16 | 7.250 | 5.125 | 2.500 | 3-82-211 |
| 1350 | 1.190 | 3.880 | 1.500 | 16 | 7.750 | 5.125 | 2.500 | 3-82-761X |
| 1410 | 1.190 | 4.440 | 1.358 | 21 I | 5.547 | 2.700 | 2.000 | 3-82-1291 |
| 1410 | 1.190 | 4.440 | 1.500 | 16 | 4.969 | 3.250 | 2.000 | 3-82-1191 |
| 1410 | 1.190 | 4.440 | 1.500 | 16 | 5.406 | 3.312 | 2.000 | 3-82-1301 |
| 1410 | 1.190 | 4.440 | 1.500 | 16 | 6.312 | 4.470 | 2.500 | 3-82-201 |
| 1410 | 1.190 | 4.440 | 1.500 | 16 | 7.844 | 5.250 | 3.000 | 3-82-168X |
| 1410 | 1.190 | 4.440 | 1.500 | 16 | 8.406 | 5.750 | 3.000 | 3-82-58X |
| 1410 | 1.190 | 4.440 | 1.500 | 16 | 8.969 | 6.281 | 3.000 | 3-82-268X |
| 1410 | 1.190 | 4.440 | 1.750 | 16 | 4.547 | 2.672 | 1.438 | 3-82-261 |
| 1410 | 1.190 | 4.440 | 1.750 | 16 | 5.406 | 3.531 | 1.438 | 3-82-811 |
| 1410 | 1.190 | 4.440 | 1.750 | 16 | 6.340 | 4.410 | 3.000 | 3-82-781 |
| 1480 | 1.380 | 4.440 | 1.562 | 16 | 6.750 | 4.500 | 2.750 | 3-82-1121 |
| 1480 | 1.380 | 4.440 | 2.250 | 10 | 4.380 | 2.812 | 1.594 | 3-82-271 |
| 1480 | 1.380 | 4.440 | 2.994 | 24 I | 8.960 | 6.149 | 4.566 | 5005288 |
| 1550 | 1.380 | 5.250 | 1.750 | 16 | 4.750 | 2.500 | 1.438 | 4-82-341 |
| 1550 | 1.380 | 5.250 | 1.750 | 16 | 6.375 | 4.156 | 2.500 | 4-82-601-1 |
| 1550 | 1.380 | 5.250 | 1.750 | 16 | 6.812 | 4.250 | 2.500 | 4-82-371 |
| 1550 | 1.380 | 5.250 | 1.750 | 16 | 7.560 | 4.156 | 2.500 | 4-82-601-2 |
| 1550 | 1.380 | 5.250 | 1.750 | 16 | 7.940 | 5.375 | 3.000 | 4-82-411-7 |
| 1550 | 1.380 | 5.250 | 1.750 | 16 | 8.438 | 5.875 | 3.000 | 4-82-411-1 |
| 1550 | 1.380 | 5.250 | 1.750 | 16 | 8.625 | 5.812 | 3.000 | 4-82-401 |
| 1550 | 1.380 | 5.250 | 1.750 | 16 | 9.750 | 4.531 | 2.875 | 4-82-361-2 |
| 1550 | 1.380 | 5.250 | 1.750 | 16 | 9.750 | 7.094 | 3.000 | 4-82-561 |
| 1550 | 1.380 | 5.250 | 2.000 | 16 | 5.844 | 3.594 | 2.250 | 4-82-511 |
| 1550 | 1.380 | 5.250 | 2.000 | 16 | 6.120 | 4.484 | 3.000 | 4-82-211 |
| 1550 | 1.380 | 5.250 | 2.500 | 16 | 4.562 | 2.750 | 1.562 | 4-82-191 |
| 1550 | 1.380 | 5.250 | 2.500 | 16 | 4.812 | 2.938 | 1.562 | 4-82-201 |
| 1550 | 1.380 | 5.250 | 2.500 | 16 | 5.172 | 3.328 | 1.562 | 4-82-621-1 |
| 1550 | 1.380 | 5.250 | 2.500 | 16 | 5.609 | 3.672 | 1.562 | 4-82-621-3 |
| 1550 | 1.380 | 5.250 | 2.500 | 16 | 6.188 | 4.250 | 1.562 | 4-82-621-4 |
| 1550 | 1.380 | 5.250 | 2.500 | 16 | 6.672 | 4.734 | 1.562 | 4-82-621-2 |
| 1610 | 1.880 | 5.310 | 2.000 | 16 | 10.063 | 6.500 | 3.000 | 5-82-791-3 |
| 1610 | 1.880 | 5.310 | 2.000 | 16 | 10.438 | 6.875 | 3.500 | 5-82-831-4 |
| 1610 | 1.880 | 5.310 | 2.000 | 16 | 10.812 | 7.562 | 3.500 | 5-82-781 |
| 1610 | 1.880 | 5.310 | 2.000 | 16 | 12.063 | 8.500 | 3.500 | 5-82-831-1 |
| 1610 | 1.880 | 5.310 | 2.000 | 16 | 13.063 | 9.063 | 3.500 | 5-82-961-3 |
| 1610 | 1.880 | 5.310 | 2.000 | 16 | 14.063 | 10.063 | 3.500 | 5-82-961-5 |
| 1610 | 1.880 | 5.310 | 2.000 | 16 | 14.406 | 10.406 | 3.500 | 5-82-961-7 |
| 1610 | 1.880 | 5.310 | 2.000 | 16 | 14.562 | 10.562 | 3.500 | 5-82-961-6 |
| 1610 | 1.880 | 5.310 | 2.000 | 16 | 15.000 | 11.000 | 3.500 | 5-82-961-1 |
| 1610 | 1.880 | 5.310 | 2.000 | 16 | 15.500 | 11.500 | 3.500 | 5-82-961-2 |
| 1610 | 1.880 | 5.310 | 2.000 | 16 | 7.297 | 4.547 | 3.000 | 5-82-871 |
| 1610 | 1.880 | 5.310 | 2.000 | 16 | 7.875 | 5.312 | 3.000 | 5-82-211 |
| 1610 | 1.880 | 5.310 | 2.000 | 16 | 7.875 | 5.440 | 2.750 | 5-82-921 |
| 1610 | 1.880 | 5.310 | 2.000 | 16 | 9.531 | 5.969 | 3.000 | 5-82-791-2 |
| 1610 | 1.880 | 5.310 | 2.000 | 16 | 9.812 | 6.250 | 3.000 | 5-82-791-4 |
| 1610 | 1.880 | 5.310 | 2.500 | 16 | 12.969 | 9.094 | 4.000 | 5-82-1011M |
| 1610 | 1.880 | 5.310 | 2.672 | 17/18 I | 4.219 | 2.531 | 1.594 | 5-82-191 |
| 1610 | 1.880 | 5.310 | 2.672 | 18 I | 6.063 | 4.003 | 1.500 | 5-82-951 |
| 1610 | 1.880 | 5.310 | 2.672 | 18 I | 6.850 | 4.790 | 1.500 | 5-82-951-2 |
| 1610 | 1.880 | 5.310 | 2.672 | 18 I | 7.140 | 5.080 | 1.500 | 5-82-951-1 |
| 1610 | 1.880 | 5.310 | 2.674 | 18 I | 4.125 | 2.500 | 1.500 | 5-82-161 |
| 1710 | 1.940 | 6.090 | 2.500 | 15/16 | 9.656 | 6.656 | 3.500 | 6-82-1331-1 |
| 1710 | 1.940 | 6.090 | 2.500 | 16 | 10.031 | 6.688 | 3.500 | 6-82-1171-1 |
| 1710 | 1.940 | 6.090 | 2.500 | 16 | 10.156 | 6.812 | 3.500 | 6-82-1171-11 |
| 1710 | 1.940 | 6.090 | 2.500 | 16 | 10.320 | 6.980 | 3.160 | 6-82-1381 |
| 1710 | 1.940 | 6.090 | 2.500 | 16 | 10.656 | 6.906 | 3.500 | 6-82-1281-6 |
| 1710 | 1.940 | 6.090 | 2.500 | 16 | 10.656 | 7.312 | 3.500 | 6-82-1171-12 |
| 1710 | 1.940 | 6.090 | 2.500 | 16 | 10.660 | 8.656 | 3.500 | 6-82-1351-5 |
| 1710 | 1.940 | 6.090 | 2.500 | 16 | 11.000 | 8.000 | 4.000 | 6-82-1231 |
| 1710 | 1.940 | 6.090 | 2.500 | 16 | 11.031 | 7.688 | 3.500 | 6-82-1171-7 |
| 1710 | 1.940 | 6.090 | 2.500 | 16 | 11.156 | 7.812 | 3.500 | 6-82-1171-2 |
| 1710 | 1.940 | 6.090 | 2.500 | 16 | 11.531 | 8.094 | 4.000 | 6-82-1141 |
| 1710 | 1.940 | 6.090 | 2.500 | 16 | 11.656 | 8.312 | 3.500 | 6-82-1171-13 |
| 1710 | 1.940 | 6.090 | 2.500 | 16 | 11.660 | 8.656 | 3.500 | 6-82-1351-7 |
| 1710 | 1.940 | 6.090 | 2.500 | 16 | 11.781 | 8.094 | 4.000 | 6-82-1091-12 |
| 1710 | 1.940 | 6.090 | 2.500 | 16 | 12.000 | 8.312 | 4.000 | 6-82-1091-16 |
| 1710 | 1.940 | 6.090 | 2.500 | 16 | 12.094 | 7.969 | 3.500 | 6-82-1351-2 |
| 1710 | 1.940 | 6.090 | 2.500 | 16 | 12.094 | 8.344 | 3.500 | 6-82-1281 |
| 1710 | 1.940 | 6.090 | 2.500 | 16 | 12.156 | 8.469 | 4.000 | 6-82-1091-1 |
| 1710 | 1.940 | 6.090 | 2.500 | 16 | 12.281 | 8.594 | 4.000 | 6-82-1091-13 |
| 1710 | 1.940 | 6.090 | 2.500 | 16 | 12.438 | 9.094 | 3.500 | 6-82-1171-6 |
| 1710 | 1.940 | 6.090 | 2.500 | 16 | 12.594 | 8.844 | 3.500 | 6-82-1281-3 |
| 1710 | 1.940 | 6.090 | 2.500 | 16 | 12.688 | 8.562 | 4.000 | 6-82-1341-1 |
| 1710 | 1.940 | 6.090 | 2.500 | 16 | 12.781 | 8.656 | 3.500 | 6-82-1351-3 |
| 1710 | 1.940 | 6.090 | 2.500 | 16 | 13.000 | 9.656 | 3.500 | 6-82-1171-5 |
| 1710 | 1.940 | 6.090 | 2.500 | 16 | 13.094 | 8.969 | 3.500 | 6-82-1351-4 |
| 1710 | 1.940 | 6.090 | 2.500 | 16 | 13.094 | 9.344 | 3.500 | 6-82-1281-1 |
| 1710 | 1.940 | 6.090 | 2.500 | 16 | 13.156 | 9.460 | 4.000 | 6-82-1341-13 |
| 1710 | 1.940 | 6.090 | 2.500 | 16 | 13.375 | 9.250 | 4.000 | 6-82-1341-2 |
| 1710 | 1.940 | 6.090 | 2.500 | 16 | 13.375 | 9.625 | 4.000 | 6-82-1061-15 |
| 1710 | 1.940 | 6.090 | 2.500 | 16 | 13.625 | 9.938 | 4.000 | 6-82-1091-9 |
| 1710 | 1.940 | 6.090 | 2.500 | 16 | 13.750 | 9.625 | 4.000 | 6-82-1341-3 |
| 1710 | 1.940 | 6.090 | 2.500 | 16 | 14.000 | 9.875 | 4.000 | 6-82-1341-4 |
| 1710 | 1.940 | 6.090 | 2.500 | 16 | 14.156 | 10.469 | 4.000 | 6-82-1091-3 |
| 1710 | 1.940 | 6.090 | 2.500 | 16 | 14.281 | 10.156 | 4.000 | 6-82-1341-5 |
| 1710 | 1.940 | 6.090 | 2.500 | 16 | 14.750 | 10.625 | 4.000 | 6-82-1341-6 |
| 1710 | 1.940 | 6.090 | 2.500 | 16 | 15.031 | 10.906 | 4.000 | 6-82-1341-7 |
| 1710 | 1.940 | 6.090 | 2.500 | 16 | 15.375 | 11.250 | 4.000 | 6-82-1341-8 |
| 1710 | 1.940 | 6.090 | 2.500 | 16 | 15.750 | 11.625 | 4.000 | 6-82-1341-9 |
| 1710 | 1.940 | 6.090 | 2.500 | 16 | 16.031 | 11.906 | 4.000 | 6-82-1341-10 |
| 1710 | 1.940 | 6.090 | 2.500 | 16 | 16.406 | 12.281 | 4.000 | 6-82-1341-11 |
| 1710 | 1.940 | 6.090 | 2.500 | 16 | 16.688 | 9.562 | 4.000 | 6-60-275-0214 |
| 1710 | 1.940 | 6.090 | 2.500 | 16 | 16.750 | 12.625 | 4.000 | 6-82-1341-12 |
| 1710 | 1.940 | 6.090 | 2.500 | 16 | 16.875 | 9.562 | 4.000 | 6-60-275-0220 |
| 1710 | 1.940 | 6.090 | 2.500 | 16 | 17.031 | 13.281 | 4.000 | 6-60-275-0225 |
| 1710 | 1.940 | 6.090 | 2.500 | 16 | 17.500 | 13.750 | 4.000 | 6-60-275-0308 |
| 1710 | 1.940 | 6.090 | 2.500 | 16 | 8.156 | 5.406 | 3.000 | 6-82-1251 |
| 1710 | 1.940 | 6.090 | 2.500 | 16 | 8.531 | 5.781 | 3.500 | 6-82-1131-2 |
| 1710 | 1.940 | 6.090 | 2.500 | 16 | 8.650 | 5.906 | 3.000 | 6-82-1391 |
| 1710 | 1.940 | 6.090 | 2.500 | 16 | 8.910 | 5.570 | 2.750 | 6-82-1371 |
| 1710 | 1.940 | 6.090 | 2.500 | 16 | 9.031 | 6.281 | 3.375 | 6-82-1291 |
| 1710 | 1.940 | 6.090 | 2.500 | 16 | 9.063 | 6.312 | 3.500 | 6-82-1131-4 |
| 1710 | 1.940 | 6.090 | 2.500 | 16 | 9.656 | 6.312 | 3.500 | 6-82-1171-10 |
| 1710 | 1.940 | 6.090 | 2.500 | 16 | 9.820 | 6.480 | 3.160 | 6-82-1411 |
| 1710 | 1.940 | 6.090 | 3.248 | 18 I | 5.250 | 3.016 | 2.000 | 6-82-341 |
| 1710 | 1.940 | 6.090 | 3.248 | 18 I | 6.125 | 3.875 | 2.000 | 6-82-691 |
| 1710 | 1.940 | 6.090 | 3.248 | 18 I | 7.250 | 4.938 | 2.000 | 6-82-411 |
| 1710 | 1.940 | 6.090 | 3.248 | 18 I | 7.875 | 5.563 | 2.000 | 6-82-1001 |
| 1760 | 1.940 | 7.000 | 2.500 | 16 | 11.000 | 8.188 | 4.000 | 6.3-82-21-1 |
| 1760 | 1.940 | 7.000 | 2.500 | 16 | 11.500 | 8.688 | 4.000 | 6.3-82-21-2 |
| 1760 | 1.940 | 7.000 | 2.500 | 16 | 12.000 | 9.188 | 4.000 | 6.3-82-21-3 |
| 1760 | 1.940 | 7.000 | 2.500 | 16 | 12.375 | 9.562 | 4.000 | 6.3-82-21-5 |
| 1760 | 1.940 | 7.000 | 2.500 | 16 | 12.500 | 9.688 | 4.000 | 6.3-82-21-4 |
| 1760 | 1.940 | 7.000 | 2.500 | 16 | 12.875 | 10.062 | 4.000 | 6.3-82-21-6 |
| 1760 | 1.940 | 7.000 | 2.500 | 16 | 13.375 | 10.562 | 4.000 | 6.3-82-21-7 |
| 1760 | 1.940 | 7.000 | 2.500 | 16 | 13.875 | 11.062 | 4.000 | 6.3-82-21-8 |
| 1760 | 1.940 | 7.000 | 2.500 | 16 | 14.375 | 11.562 | 4.000 | 6.3-82-21-9 |
| 1760 | 1.940 | 7.000 | 2.500 | 16 | 14.875 | 12.062 | 4.000 | 6.3-82-21-10 |
| 1760 | 1.940 | 7.000 | 2.500 | 16 | 15.375 | 12.562 | 4.000 | 6.3-82-21-11 |
| 1810 | 1.940 | 7.550 | 3.000 | 16 | 10.438 | 6.562 | 4.000 | 6.5-82-451-12 |
| 1810 | 1.940 | 7.550 | 3.000 | 16 | 11.438 | 7.812 | 4.000 | 6.5-82-451-1 |
| 1810 | 1.940 | 7.550 | 3.000 | 16 | 11.938 | 8.312 | 4.000 | 6.5-82-451-3 |
| 1810 | 1.940 | 7.550 | 3.000 | 16 | 12.188 | 8.562 | 4.500 | 6.5-82-461-1 |
| 1810 | 1.940 | 7.550 | 3.000 | 16 | 12.438 | 8.813 | 4.000 | 6.5-82-451-5 |
| 1810 | 1.940 | 7.550 | 3.000 | 16 | 12.688 | 9.062 | 4.500 | 6.5-82-461-2 |
| 1810 | 1.940 | 7.550 | 3.000 | 16 | 13.188 | 9.562 | 4.500 | 6.5-82-461-3 |
| 1810 | 1.940 | 7.550 | 3.000 | 16 | 13.688 | 10.062 | 4.500 | 6.5-82-461-4 |
| 1810 | 1.940 | 7.550 | 3.000 | 16 | 13.812 | 10.188 | 4.500 | 6.5-82-461-8 |
| 1810 | 1.940 | 7.550 | 3.000 | 16 | 14.438 | 10.812 | 4.500 | 6.5-82-461-9 |
| 1810 | 1.940 | 7.550 | 3.000 | 16 | 15.062 | 11.438 | 4.500 | 6.5-82-461-10 |
| 1810 | 1.940 | 7.550 | 3.000 | 16 | 15.688 | 12.062 | 4.500 | 6.5-82-461-11 |
| 1810 | 1.940 | 7.550 | 3.000 | 16 | 16.312 | 12.688 | 4.500 | 6.5-82-461-12 |
| 1810 | 1.940 | 7.550 | 3.248 | 18 I | 6.719 | 4.312 | 2.750 | 6.5-82-511-1 |
| 1810 | 1.940 | 7.550 | 3.248 | 18 I | 7.219 | 4.812 | 2.750 | 6.5-82-511-3 |
| 1880 | 2.190 | 8.090 | 3.000 | 16 | 12.844 | 8.531 | 4.500 | 8-82-161-1 |
| 1880 | 2.190 | 8.090 | 3.000 | 16 | 12.844 | 10.531 | 4.500 | 8-82-161-6 |
| 1880 | 2.190 | 8.090 | 3.000 | 16 | 17.469 | 13.156 | 4.500 | 8-82-161-12 |
| 1880 | 2.190 | 8.090 | 4.156 | 24 I | 7.219 | 4.156 | 2.625 | 8-82-171-1 |
