Dana Tube & Yoke Assemblies Catalogue

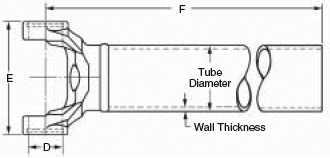

| Series | Dimension D | Dimension E | Tube O.D. | Wall Thick S=smless W=welded | Tubing Base Part # | Tube Length | (F) C/L to Tube End | Tube Yoke Part # | Part # |
| 1310 | 1.060 | 3.470 | 2.000 | 0.083-W | 16-30-62 | 47.750 | 49.438 | 2-28-357 | 2-27-7-4724 |
| 1310 | 1.060 | 3.470 | 2.500 | 0.083-W | 20-30-22 | 60.531 | 62.375 | 2-28-367 | 2-27-9-6017 |
| 1310 | 1.060 | 3.470 | 3.000 | 0.083-W | 24-30-42 | 60.000 | 61.688 | 2-28-437 | 2-27-24-6000 |
| 1330 | 1.060 | 3.000 | 3.000 | 0.065-W | 24-30-32 | 48.000 | 41.719 | 2-28-1177 | 2-27-29-4800 |
| 1350 | 1.190 | 3.880 | 3.000 | 0.083-W | 24-30-42 | 64.000 | 66.000 | 3-28-57 | 3-27-2-6400 |
| 1350 | 1.190 | 3.880 | 3.500 | 0.065-W | 28-30-42 | 72.000 | 73.688 | 3-28-257 | 3-27-5-7200 |
| 1480 | 1.380 | 4.440 | 3.500 | 0.083-W | 28-30-62 | 61.312 | 63.344 | 3-28-537 | 3-27-22-6110 |

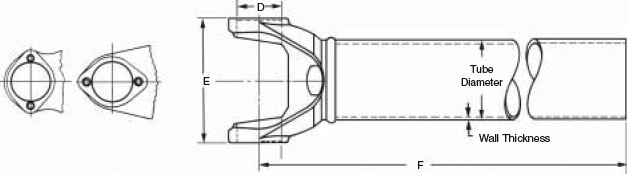

| Series | Dimension D | Dimension E | Tube O.D. | Wall Thick S=smless W=welded | Tubing Base Part # | Tube Length | (F) C/L to Tube End | Tube Yoke Part # | Part # |
| 1610 | 1.880 | 5.310 | 3.500 | 0.134-W | 28-30-92 | 40.000 | 43.000 | 5-28-627 | 5-27-25-4000 |
| 1710 | 1.940 | 6.090 | 4.000 | 0.134-W | 32-30-52 | 71.969 | 75.000 | 6-28-347 | 6-27-17-7131 |
| 1710 | 1.940 | 6.090 | 4.000 | 0.134-W | 32-30-52 | 60.000 | 63.031 | 6-28-347 | 6-27-17-6000 |
| 1710 | 1.940 | 6.090 | 4.095 | 0.180-W | 32-30-72 | 57.000 | 60.031 | 6-28-347 | 6-27-21-5700 |
| 1760 | 1.940 | 7.000 | 4.090 | 0.180-W | 32-30-72 | 60.000 | 63.013 | 6.3-28-17 | 6.3-27-3-6000 |
| 1810 | 1.940 | 7.550 | 4.500 | 0.134-W | 36-30-62 | 60.000 | 63.375 | 6.5-28-117 | 6.5-27-9-6000 |
