Dana Flange Yokes Catalogue

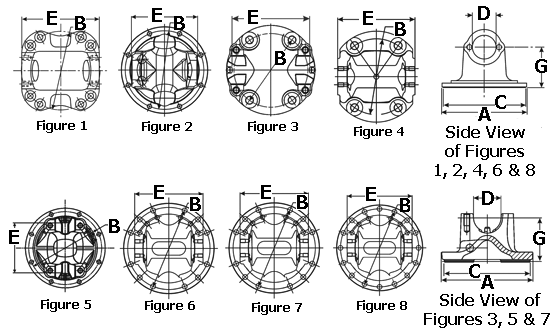

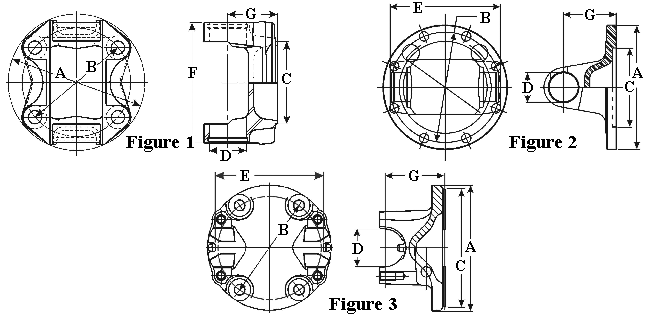

| Series | Dimension D | Dimension E | (A) Flange or Swing Dia | (B) Bolt Circle Dia | Bolt Hole Dia (NOM) | # of Bolt Holes | (C) Pilot Diameter M=Male F=Female |
(G) Flange Face to C/L | Figure | Part # |
| 1000 | 0.940 | 1.500 | 3.375 | 2.750 | 0.312-D | 4 | 2.250-M | 1.562 | 1 | 10-2-29 |
| 1100 | 0.940 | 2.660 | 3.375 | 2.750 | 0.312-D | 4 | 2.250-F | 1.188 | 1 | 1-2-49 |
| 1100 | 0.940 | 2.660 | 3.375 | 2.750 | 0.312-D | 4 | 2.250-M | 1.188 | 1 | 1-2-39 |
| 1210 | 1.060 | 2.690 | 3.406 | 2.750 | 0.328-D | 4 | 2.250-M | 1.484 | 1 | 2-2-899 |
| 1210 | 1.060 | 2.690 | 3.710 | 3.125 | 0.334-D | 4 | 2.250-M | 1.200 | 1 | 2-2-1579 |
| 1210 | 1.060 | 2.690 | 3.710 | 3.125 | 0.334-D | 4 | 2.250-M | 1.200 | 1 | 2-2-1419 |
| 1210 | 1.060 | 2.690 | 4.360 | 3.500 | 0.484-D | 4 | 2.000-F | 1.625 | 1 | 2-2-1049 |
| 1310 | 1.060 | 3.470 | 3.625 | 2.875 | 0.380-D | 4 | 1.375 | 1 | 2-2-349 | |
| 1310 | 1.060 | 3.470 | 3.875 | 3.125 | .0375-D | 4 | 2.375-F | 1.375 | 1 | 2-2-389 |
| 1310 | 1.060 | 3.470 | 3.875 | 3.125 | .0375-D | 4 | 2.375-M | 1.625 | 1 | 2-2-459 |
| 1310 | 1.060 | 3.470 | 3.875 | 3.125 | .0375-D | 4 | 2.375-M | 1.375 | 1 | 2-2-329 |
| 1310 | 1.060 | 3.470 | 3.875 | 3.125 | 0.406-D | 4 | 2.375-M | 1.625 | 1 | 2-2-1609 |
| 1310 | 1.060 | 3.470 | 4.016 | 3.203 | 0.406-D | 4 | 1.969-M | 1.781 | 1 | 2-2-1309 |
| 1310 | 1.060 | 3.470 | 4.080 | 3.198 | 0.400-D | 4 | 1.968-M | 1.781 | 1 | 2-2-1899 |
| 1310 | 1.060 | 3.470 | 4.150 | 3.344 | 0.406-D | 4 | 1.812-M | 1.770 | 1 | 2-2-1679 |
| 1310 | 1.060 | 3.470 | 4.158 | 3.346 | 0.406-D | 4 | 2.559-M | 1.766 | 1 | 2-2-1519 |
| 1310 | 1.060 | 3.470 | 4.330 | 3.661 | 0.446-D | 4 | 1.811-M | 1.634 | 1 | 5001902 |
| 1310 | 1.060 | 3.470 | 4.500 | 3.500 | 0.500-D | 4 | 2.000-F | 1.650 | 1 | 2-2-939 |
| 1310 | 1.060 | 3.470 | 4.580 | 3.750 | 0.440-D | 4 | 2.750-M | 1.190 | 1 | 2-2-1039 |
| 1310 | 1.060 | 3.470 | 4.625 | 3.750 | 0.406-D | 4 | 2.559-M | 1.772 | 1 | 2-2-1799 |
| 1310 | 1.060 | 3.470 | 4.625 | 3.750 | 0.438-D | 4 | 2.750-M | 1.375 | 1 | 2-2-479 |
| 1310 | 1.060 | 3.470 | 4.678 | 3.740 | 0.469-D | 4 | 2.558-M | 1.781 | 1 | 2-2-1729 |
| 1310 | 1.060 | 3.470 | 4.719 | 3.750 | 0.481-D | 4 | 2.558-M | 1.781 | 1 | 2-2-1949 |
| 1310 | 1.060 | 3.470 | 4.750 | 3.750 | 0.503-D | 4 | 2.750-M | 2.000 | 1 | 2-2-1789 |
| 1310 | 1.060 | 3.470 | 4.906 | 3.937 | 0.489-D | 4 | 2.162-F | 1.930 | 1 | 2-2-1989 |
| 1310 | 1.060 | 3.470 | 5.219 | 4.250 | 0.484-D | 4 | 2.000-F | 1.625 | 1 | 2-2-1379 |
| 1310 | 1.060 | 3.470 | 5.750 | 4.750 | 0.507-D | 4 | 3.750-M | 1.375 | 1 | 2-2-579 |
| 1330 | 1.060 | 3.880 | 3.880 | 3.000 | 0.487-D | 4 | 2.436-F | 1.618 | 1 | 5001474 |
| 1330 | 1.060 | 3.880 | 4.469 | 3.500 | 0.484-D | 4 | 2.000-F | 1.625 | 1 | 2-2-949 |
| 1330 | 1.060 | 3.880 | 4.528 | 3.661 | 0.446-D | 4 | 1.811-M | 1.653 | 1 | 5001904 |
| 1330 | 1.060 | 3.880 | 4.625 | 3.750 | 0.438-D | 4 | 2.750-M | 1.562 | 1 | 2-2-1209 |
| 1330 | 1.060 | 3.880 | 4.625 | 3.750 | 0.438-D | 4 | 2.750-M | 1.562 | 1 | 2-2-489 |
| 1330 | 1.060 | 3.880 | 4.960 | 3.938 | 0.489-D | 4 | 2.161-F | 1.930 | 1 | 2-2-1879 |
| 1330 | 1.060 | 3.880 | 5.156 | 4.250 | 0.453-D | 4 | 3.125-F | 1.688 | 1 | 2-2-1399 |
| 1330 | 1.060 | 3.880 | 5.360 | 4.251 | 0.500-D | 4 | 2.560-F | 1.618 | 1 | 5002313 |
| 1350 | 1.190 | 3.880 | 4.500 | 3.750 | 0.438-D | 4 | 2.750-M | 1.281 | 1 | 3-2-809 |
| 1350 | 1.190 | 3.880 | 4.625 | 3.750 | 0.438-D | 4 | 2.750-M | 1.562 | 1 | 3-2-119 |
| 1350 | 1.190 | 3.880 | 5.094 | 2.375 | 0.480-D | 4 | 3.750-M | 1.750 | 2 | 3-2-1779 |
| 1350 | 1.190 | 3.880 | 5.250 | 4.250 | 0.470-T | 4 | 2.680-F | 1.625 | 1 | 3-2-1699 |
| 1350 | 1.190 | 3.880 | 5.250 | 4.250 | 0.500-D | 4 | 2.000-F | 1.625 | 1 | 3-2-1579 |
| 1350 | 1.190 | 3.880 | 5.250 | 4.250 | 0.500-D | 4 | 2.560-F | 1.618 | 1 | 3-2-1879 |
| 1350 | 1.190 | 3.880 | 5.360 | 4.250 | 0.472-T | 4 | 2.000-F | 1.625 | 1 | 3-2-1619 |
| 1350 | 1.190 | 3.880 | 5.750 | 4.750 | 0.500-D | 4 | 2.953-F | 1.750 | 1 | 3-2-1859 |
| 1350 | 1.190 | 3.880 | 6.406 | 5.500 | 0.453-D | 4 | 3.562-F | 1.844 | 1 | 3-2-699 |
| 1410 | 1.190 | 4.440 | 4.234 | 3.750 | 0.484-D | 4 | 2.750-M | 1.688 | 1 | 3-2-1329 |
| 1410 | 1.190 | 4.440 | 4.625 | 3.750 | 0.438-D | 4 | 2.750-F | 1.688 | 1 | 3-2-299 |
| 1410 | 1.190 | 4.440 | 4.625 | 3.750 | 0.438-D | 4 | 2.750-M | 1.688 | 1 | 3-2-159 |
| 1410 | 1.190 | 4.440 | 4.625 | 3.750 | 0.438-D | 4 | 2.750-M | 1.938 | 1 | 3-2-439 |
| 1410 | 1.190 | 4.440 | 4.724 | 3.996 | 0.394-D | 8 | 2.954-F | 2.531 | 2 | 3-2-1159 |
| 1410 | 1.190 | 4.440 | 4.760 | 3.938 | 0.484-D | 4 | 3.149-M | 1.690 | 3-2-1549 | |
| 1410 | 1.190 | 4.440 | 5.240 | 4.250 | 0.500-D | 4 | 2.000-F | 1.620 | 1 | 3-2-1819 |
| 1410 | 1.190 | 4.440 | 5.352 | 4.250 | 0.512-D | 4 | 2.680-F | 1.620 | 1 | 3-2-1759 |
| 1410 | 1.190 | 4.440 | 5.750 | 4.750 | 0.500-D | 4 | 2.953-F | 2.000 | 1 | 3-2-1839 |
| 1410 | 1.190 | 4.440 | 5.750 | 4.750 | 0.509-D | 4 | 3.750-M | 2.000 | 1 | 3-2-1789 |
| 1410 | 1.190 | 4.440 | 5.812 | 4.750 | 0.531-D | 4 | 3.750-M | 2.000 | 1 | 3-2-939 |
| 1410 | 1.190 | 4.440 | 5.875 | 4.750 | 0.480-D | 4 | 3.750-M | 2.000 | 1 | 3-2-1519 |
| 1410 | 1.190 | 4.440 | 5.875 | 4.750 | 0.500-D | 4 | 3.750-M | 1.500 | 1 | 3-2-559 |
| 1410 | 1.190 | 4.440 | 5.875 | 4.750 | 0.500-D | 4 | 3.750-M | 1.750 | 1 | 3-2-549 |
| 1410 | 1.190 | 4.440 | 5.875 | 4.750 | 0.500-D | 4 | 3.750-M | 2.000 | 1 | 3-2-429 |
| 1410 | 1.190 | 4.440 | 6.375 | 5.500 | 0.438-D | 4 | 3.562-F | 1.844 | 1 | 3-2-709 |
| 1410 | 1.190 | 4.440 | 6.750 | 5.750 | 0.484-D | 4 | 4.803-F | 2.000 | 3 | 3-2-1659-1 |
| 1410 | 1.190 | 4.440 | 6.875 | 6.125 | 0.375-D | 8 | 6.875-M | 2.000 | 2 | 3-2-309 |
| 1480 | 1.380 | 4.440 | 5.354 | 4.252 | 0.509-D | 4 | 2.680-F | 1.800 | 1 | 3-2-1769 |
| 1480 | 1.380 | 4.440 | 5.750 | 4.750 | 0.500-D | 4 | 3.750-M | 2.000 | 1 | 3-2-479 |
| 1480 | 1.380 | 4.440 | 5.850 | 4.750 | 0.510-D | 4 | 2.953-F | 2.000 | 1 | 3-2-1869 |
| 1480 | 1.380 | 4.440 | 5.875 | 4.250 | 0.472-T | 4 | 2.680-F | 1.800 | 1 | 3-2-1719 |
| 1480 | 1.380 | 4.440 | 5.875 | 4.750 | 0.500-D | 4 | 3.750-M | 2.000 | 1 | 3-2-609 |
| 1480 | 1.380 | 4.440 | 5.875 | 4.750 | 0.500-D | 4 | 3.750-M | 1.500 | 1 | 3-2-489 |
| 1480 | 1.380 | 4.440 | 6.875 | 6.125 | 0.386-D | 8 | 5.312-M | 1.938 | 2 | 3-2-909 |
| 1480 | 1.380 | 4.440 | 6.875 | 6.125 | 0.386-D | 8 | 6.625-M | 2.000 | 2 | 3-2-499 |
| 1550 | 1.380 | 5.250 | 5.750 | 4.750 | 0.484-D | 4 | 3.750-M | 1.500 | 1 | 4-2-1149 |
| 1550 | 1.380 | 5.250 | 5.750 | 4.750 | 0.500-D | 4 | 3.750-M | 2.000 | 1 | 4-2-819 |
| 1550 | 1.380 | 5.250 | 5.760 | 4.724 | 0.559-D | 4 | 3.750-M | 2.000 | 1 | 5001720 |
| 1550 | 1.380 | 5.250 | 5.774 | 4.750 | 0.512-D | 4 | 3.750-M | 2.000 | 1 | 4-2-669 |
| 1550 | 1.380 | 5.250 | 5.875 | 4.750 | 0.500-D | 4 | 3.750-F | 1.500 | 1 | 4-2-759 |
| 1550 | 1.380 | 5.250 | 5.875 | 4.750 | 0.500-D | 4 | 3.750-M | 1.500 | 1 | 4-2-679 |
| 1550 | 1.380 | 5.250 | 6.156 | 5.250 | 0.453-D | 8 | 3.750-F | 2.500 | 2 | 4-2-829 |
| 1550 | 1.380 | 5.250 | 6.875 | 6.125 | 0.375-D | 8 | 6.625-M | 2.000 | 2 | 4-2-689 |
| 1550 | 1.380 | 5.250 | 6.875 | 6.125 | 0.386-D | 8 | 5.312-M | 2.000 | 2 | 4-2-699 |
| 1550 | 1.380 | 5.250 | 6.875 | 6.125 | 0.406-D | 8 | 5.312-M | 2.000 | 2 | 4-2-1109 |
| 1610 | 1.880 | 5.310 | 6.875 | 6.125 | 0.375-D | 8 | 5.312-M | 2.750 | 2 | 5-2-599 |
| 1610 | 1.880 | 5.310 | 6.875 | 6.125 | 0.375-D | 8 | 5.312-M | 1.875 | 2 | 5-2-989 |
| 1610 | 1.880 | 5.310 | 6.875 | 6.125 | 0.375-D | 8 | 5.312-M | 2.750 | 5 | 5-2-599-1 |
| 1610 | 1.880 | 5.310 | 6.875 | 6.125 | 0.375-D | 8 | 5.375-F | 1.875 | 2 | 5-2-1089 |
| 1610 | 1.880 | 5.310 | 6.875 | 6.125 | 0.375-D | 8 | 5.375-F | 2.750 | 2 | 5-2-249 |
| 1610 | 1.880 | 5.310 | 6.875 | 6.125 | 0.375-D | 8 | 6.625-M | 2.750 | 2 | 5-2-279 |
| 1610 | 1.880 | 5.310 | 6.875 | 6.125 | 0.375-D | 8 | 6.625-M | 1.875 | 2 | 5-2-379 |
| 1610 | 1.880 | 5.310 | 6.875 | 6.125 | 0.440-D | 12 | 6.625-M | 2.750 | 6 | 5-2-1159 |
| 1610 | 1.880 | 5.310 | 8.000 | 7.250 | 0.375-D | 8 | 6.435-M | 2.750 | 5 | 5-2-1249-1 |
| 1610 | 1.880 | 5.310 | 8.000 | 7.250 | 0.375-D | 8 | 6.435-M | 2.750 | 3 | 5-2-709-1 |
| 1610 | 1.880 | 5.310 | 8.000 | 7.250 | 0.375-D | 8 | 6.435-M | 2.750 | 2 | 5-2-709 |
| 1610 | 1.880 | 5.310 | 8.000 | 7.250 | 0.375-D | 8 | 7.750-M | 1.875 | 2 | 5-2-619 |
| 1610 | 1.880 | 5.310 | 8.000 | 7.250 | 0.375-D | 8 | 7.750-M | 2.750 | 2 | 5-2-629 |
| Series | Dimension D | Dimension E | (A) Flange or Swing Dia | (B) Bolt Circle Dia | Bolt Hole Dia (NOM) | # of Bolt Holes | (C) Pilot Diameter M=Male F=Female |
(G) Flange Face to C/L | Figure | Part # |
| 1710 | 1.940 | 6.090 OR 6.190 | 8.000 | 5.118 | 0.472-D | 4 | 3.189 | 4 | 6-2-15 | |
| 1710 | 1.940 | 6.090 OR 6.190 | 8.000 | 7.250 | 0.375-D | 8 | 6.438-M | 3.000 | 2 | 6-2-789 |
| 1710 | 1.940 | 6.090 OR 6.190 | 8.000 | 7.250 | 0.375-D | 8 | 6.438-M | 3.000 | 5 | 6-2-1439-1 |
| 1710 | 1.940 | 6.090 OR 6.190 | 8.000 | 7.250 | 0.375-D | 8 | 7.750-M | 2.000 | 2 | 6-2-769 |
| 1710 | 1.940 | 6.090 OR 6.190 | 8.000 | 7.250 | 0.375-D | 8 | 7.750-M | 3.000 | 5 | 6-2-749-1 |
| 1710 | 1.940 | 6.090 OR 6.190 | 8.000 | 7.250 | 0.375-D | 8 | 7.750-M | 2.000 | 2 | 6-2-959 |
| 1710 | 1.940 | 6.090 OR 6.190 | 8.000 | 7.250 | 0.375-D | 8 | 7.750-M | 3.000 | 2 | 6-2-1239 |
| 1710 | 1.940 | 6.090 OR 6.190 | 8.000 | 7.250 | 0.375-D | 8 | 7.750-M | 3.000 | 2 | 6-2-749 |
| 1710 | 1.940 | 6.090 OR 6.190 | 8.000 | 7.250 | 0.375-D | 8 | 8.000-M | 3.000 | 2 | 6-2-759 |
| 1710 | 1.940 | 6.090 OR 6.190 | 8.000 | 7.250 | 0.438-D | 12 | 7.750-M | 2.000 | 6 | 6-2-839 |
| 1710 | 1.940 | 6.090 OR 6.190 | 8.000 | 7.250 | 0.438-D | 12 | 7.750-M | 3.000 | 6 | 6-2-779 |
| 1710 | 1.940 | 6.090 OR 6.190 | 8.000 | 7.250 | 0.438-D | 12 | 7.750-M | 3.000 | 7 | 6-2-779-1 |
| 1710 | 1.940 | 6.090 OR 6.190 | 8.000 | 7.250 | 0.438-D | 16 | 6.438-M | 3.000 | 8 | 6-2-1219 |
| 1710 | 1.940 | 6.090 OR 6.190 | 8.000 | 7.250 | 0.438-D | 8 | 7.750-M | 3.000 | 2 | 6-2-739 |
| 1710 | 1.940 | 6.090 OR 6.190 | 8.000 | 7.250 | 0.438-D | 8 | 7.750-M | 2.500 | 2 | 6-2-1349 |
| 1710 | 1.940 | 6.090 OR 6.190 | 8.000 | 7.250 | 0.438-D | 8 | 7.750-M | 3.000 | 2 | 6-2-1159 |
| 1710 | 1.940 | 6.090 OR 6.190 | 8.000 | 7.250 | 0.438-D | 8 | 7.750-M | 3.000 | 5 | 6-2-739-1 |
| 1760 | 1.940 | 7.000 OR 7.090 | 8.000 | 7.250 | 0.438-D | 12 | 7.750-M | 3.375 | 6 | 6.3-2-19 |
| 1760 | 1.940 | 7.000 OR 7.090 | 8.000 | 7.250 | 0.438-D | 12 | 7.750-M | 3.375 | 7 | 6.3-2-19-1 |
| 1810 | 1.940 | 7.550 OR 7.640 | 8.000 | 7.250 | 0.438-D | 12 | 6.438-M | 3.312 | 4 | 6.5-2-349 |
| 1810 | 1.940 | 7.550 OR 7.640 | 8.000 | 7.250 | 0.438-D | 12 | 7.750-M | 3.375 | 6 | 6.5-2-329 |
| 1810 | 1.940 | 7.550 OR 7.640 | 8.000 | 7.250 | 0.438-D | 12 | 7.750-M | 3.375 | 7 | 6.5-2-329-1 |
| 1810 | 1.940 | 7.550 OR 7.640 | 8.125 | 7.250 | 0.438-D | 12 | 7.750-M | 2.594 | 6 | 6.5-2-359 |
| 1880 | 2.190 | 8.090 | 9.562 | 8.250 | 0.625-D | 8 | 7.000-M | 3.500 | 1 | 8-2-109 |
| 1880 | 2.190 | 8.090 | 9.562 | 8.250 | 0.625-D | 8 | 7.000-M | 2.500 | 1 | 8-2-119 |
| SPL100 | 1.630 | 5.380 | 8.000 | 7.250 | 0.399-D | 8 | 7.750-M | 3.250 | 4 | 100-2-159 |
| SPL140 | 1.940 | 5.030 | 8.000 | 7.250 | 0.375-D | 8 | 7.750-M | 3.070 | 5 | 140-2-99-1 |
| SPL140 | 1.940 | 5.030 | 8.000 | 7.250 | 0.375-D | 8 | 7.750-M | 3.070 | 2 | 140-2-59 |
| SPL140 | 1.940 | 5.030 | 8.000 | 7.250 | 0.380-D | 8 | 6.438-M | 2.953 | 5 | 140-2-69-1 |
| SPL140 | 1.940 | 5.030 | 8.000 | 7.250 | 0.396-D | 12 | 7.750-M | 3.070 | 2 | 140-2-19 |
| SPL140 | 1.940 | 5.030 | 8.000 | 7.250 | 0.439-D | 12 | 7.750-M | 3.070 | 2 | 140-2-29 |
| SPL170 | 2.170 | 6.030 | 7.086 | 5.906 | 0.551-D | 4 | 4.311 | 5 | 170-2-35 | |
| SPL170 | 2.170 | 6.030 | 7.087 | 5.906 | 0.551-D | 4 | 3.425 | 1 | 170-2-15 | |
| SPL170 | 2.170 | 6.030 | 8.000 | 7.250 | 0.378-D | 8 | 7.750-M | 3.208 | 4 | 170-2-49 |
| SPL170 | 2.170 | 6.030 | 8.000 | 7.250 | 0.440-D | 12 | 7.750-M | 3.386 | 6 | 170-2-59-1 |
| SPL170 | 2.170 | 6.030 | 8.000 | 7.250 | 0.441-D | 12 | 7.750-M | 3.208 | 2 | 170-2-19 |
| SPL170 | 2.170 | 6.030 | 8.000 | 7.250 | 0.479-D | 12 | 7.750-M | 3.375 | 6 | 170-2-39-1 |
| SPL170 | 2.170 | 6.030 | 8.000 | 7.250 | 0.481-D | 12 | 7.750-M | 3.208 | 2 | 170-2-29 |
| SPL250 | 2.360 | 5.990 | 7.087 | 5.906 | 0.551-D | 4 | 3.583 | 1 | 250-2-15 | |
| SPL250 | 2.360 | 5.990 | 8.000 | 7.250 | 0.439-D | 12 | 7.750-M | 3.500 | 2 | 250-2-19 |
| SPL250 | 2.360 | 5.990 | 8.000 | 7.250 | 0.440-D | 12 | 7.750-M | 3.524 | 6 | 250-2-49-1 |
| SPL250 | 2.360 | 5.990 | 8.000 | 7.250 | 0.479-D | 12 | 7.750-M | 3.524 | 6 | 250-2-39-1 |
| SPL90 | 1.630 | 5.380 | 5.906 | 5.118 | 0.478-D | 8 | 3.544-F | 3.281 | 2 | 90-2-29 |
| SPL90 | 1.630 | 5.380 | 6.688 | 6.124 | 0.375-D | 8 | 5.312-M | 2.750 | 5 | 90-2-49-1 |
| SPL90 | 1.630 | 5.380 | 6.688 | 6.124 | 0.375-D | 8 | 6.624-M | 3.281 | 2 | 90-2-19 |
| SPL90 | 1.630 | 5.380 | 8.000 | 7.250 | 0.375-D | 8 | 6.438-M | 2.750 | 5 | 90-2-39-1 |
| SPL90 | 1.630 | 5.380 | 8.000 | 7.250 | 0.375-D | 8 | 7.750-M | 2.750 | 5 | 90-2-69-1 |
