Dana End Yokes

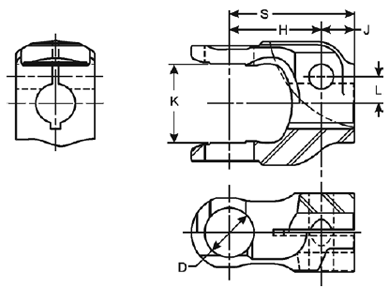

Steering Shaft - Round Catalogue

Series	Dimension D	Dimension K	Hole Diameter Maximum/ Minimum	Keyway Width	Bolt Hole Diameter	(H) Bolt Hole C/L to Bearing C/L	(J) Bolt Hole C/L to Hub End	(L) Bolt Hole Top to Spline C/L	(L1) Bolt Hole C/L to Spline C/L	(S) C/L to Hub End	Part #
1000ST	0.940	1.500	0.7510 0.7500	0.188 0.1905	0.469	1.750	0.625		0.510	2.375	10-4-1673SX
1000ST	0.940	1.500	0.9860 0.9850	0.188 0.1905	0.467	1.750	0.625	0.795	0.560	2.375	10-4-1083SX
1000ST	0.940	1.500	1.0005 0.9995	0.188 0.1905	0.406	1.625	0.750		0.557	2.375	10-4-1183SX

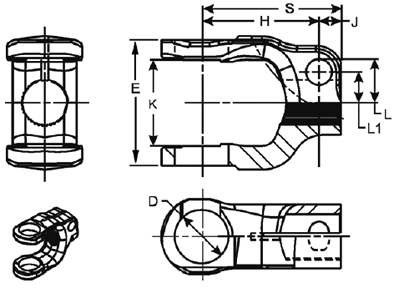

Steering Shaft - Serrated Catalogue

Series	Dimension D	Dimension K	Serrated Hole Major Diameter	Serrated Hole Min Diameter	Bolt Hole Diameter	(H) Bolt Hole C/L to Bearing C/L	(J) Bolt Hole C/L to Hub End	(L) Bolt Hole Top to Spline C/L	(L1) Bolt Hole C/L to Spline C/L	(S) C/L to Hub End	Part #
1000ST	0.940	1.500	0.735	16/36	0.696	0.451	2.120	0.500		0.525	10-4-431SX
1000ST	0.940	1.500	0.739	21/36	0.696	0.467	1.780	0.470	0.748		10-4-871SX
1000ST	0.940	1.500	0.739	26/36	0.696	0.467	1.780	0.470	0.726	0.525	10-4-611SX
1000ST	0.940	1.500	0.739	30/36	0.696	0.406	2.030	0.470		0.470	10-4-931SX
1000ST	0.940	1.500	0.739	30/36	0.696	0.406	2.030	0.470		0.470	10-4-631SX
1000ST	0.940	1.500	0.811	30/36	0.764	0.405	2.030	0.470	0.710		10-4-501SX
1000ST	0.940	1.500	0.811	30/36	0.764	0.405	2.120	0.500	0.710		10-4-901SX
1000ST	0.940	1.500	0.811	30/36	0.764	0.406	2.030	0.470	0.673		10-4-491SX
1000ST	0.940	1.500	0.811	30/36	0.764	0.467	2.030	0.470	0.770		10-4-1001SX
1000ST	0.940	1.500	0.811	30/36	0.764	0.467	2.030	0.470	0.770		10-4-821SX
1000ST	0.940	1.500	0.811	30/36	0.764	0.470	2.030	0.380	0.770		10-4-1181SX
1000ST	0.940	1.500	0.813	18/36	0.764	0.451	2.030	0.380	0.764		10-4-911SX
1000ST	0.940	1.500	0.813	18/36	0.764	0.451	2.030	0.470	0.759		10-4-841SX
1000ST	0.940	1.500	0.813	18/36	0.764	0.467	1.780	0.380	0.761		10-4-621SX
1000ST	0.940	1.500	0.813	18/36	0.764	0.467	1.780	0.470	0.762		10-4-1281SX
1000ST	0.940	1.500	0.813	18/36	0.764	0.467	2.330	0.370	0.761		10-4-551SX
1000ST	0.940	1.500	0.870	14/36	0.819	0.451	2.031	0.470	0.781		10-4-1061SX
1000ST	0.940	1.500	0.870	30/36	0.819	0.403	2.031	0.469	0.748		10-4-601SX
1000ST	0.940	1.500	0.870	30/36	0.819	0.405	2.031	0.469	0.738		10-4-951SX
1000ST	0.940	1.500	0.870	30/36	0.819	0.451	2.031	0.530	0.789		10-4-1241SX
1000ST	0.940	1.500	0.870	30/36	0.819	0.467	2.031	0.469	0.815		10-4-741SX
1000ST	0.940	1.500	0.870	30/36	0.819	0.467	2.031	0.470	0.780		10-4-991SX
1000ST	0.940	1.500	0.870	30/36	0.819	0.467	2.031	0.470	0.787		10-4-461SX
1000ST	0.940	1.500	0.990	14/36	0.947	0.451	2.030	0.470	0.852		10-4-851SX
1000ST	0.940	1.500	0.994	30/36	0.947	0.405	1.750	0.630	0.802		10-4-391SX
1000ST	0.940	1.500	0.994	30/36	0.947	0.405	1.780	0.470	0.802		10-4-561SX
1000ST	0.940	1.500	0.994	30/36	0.947	0.405	1.780	0.470	0.802		10-4-121SX
1000ST	0.940	1.500	0.994	30/36	0.947	0.405	2.030	0.470	0.802		10-4-961SX
1000ST	0.940	1.500	0.994	30/36	0.947	0.405	2.030	0.470	0.802		10-4-371SX
1000ST	0.940	1.500	0.994	30/36	0.947	0.451	2.030	0.470	0.863		10-4-971SX
1000ST	0.940	1.500	0.994	30/36	0.947	0.451	2.030	0.470	0.863		10-4-451SX
1000ST	0.940	1.500	0.994	30/36	0.947	0.451	4.000	0.470	0.863		10-4-1201SX
1000ST	0.940	1.500	0.994	30/36	0.947	0.467	2.030	0.470	0.835		10-4-731SX
1000ST	0.940	1.500	1.006	34/48	0.960	0.468	2.030	0.470		0.630	10-4-661SX
1310ST	1.060	3.470	1.000	30/36	0.947	4.500	2.120	0.760		0.610	2-4-4411SX
1310ST	1.060	3.470	1.000	36	0.947	0.406	2.125	0.437		0.610	2-4-4461SX
