Dana End Yokes

Straight Round Hole Catalogue

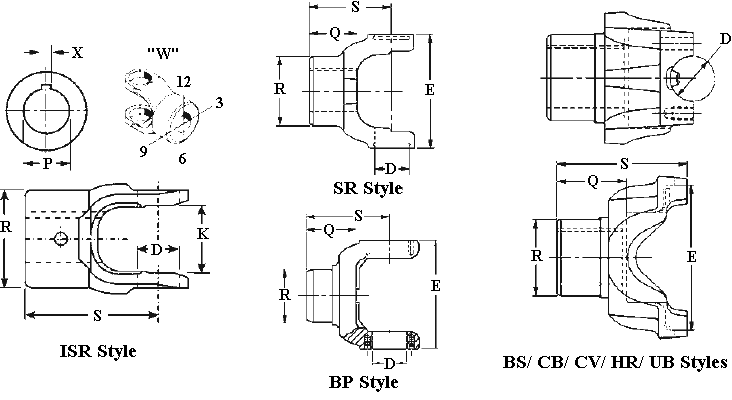

Series Dimension D Dimension K (P) Round Hole Diameter (X) Keyway Width (W) Set Screw Diameter Keyway Location Set Screw Location (R) Hub Diameter (Q) Length thru Hole (S) C/L to Hub End Part #
1000 0.940 1.500 0.625         1.625 1.030 2.500 10-4-333
1000 0.940 1.500 0.625 0.188 0.375 12 6 1.625   2.500 10-4-373
1000 0.940 1.500 0.750         1.624   2.500 10-4-303
1000 0.940 1.500 0.750 0.188 0.375 12 9 1.625 1.312 1.812 10-4-693
1000 0.940 1.500 0.750 0.188 0.375 3 6 1.625 1.030 2.500 10-4-13
1000 0.940 1.500 0.750 0.188 0.375 3 6 & 12 1.625 1.030 2.500 10-4-133
1000 0.940 1.500 0.750 0.250 0.375 3 9 1.625 1.030 2.500 10-4-23
1000 0.940 1.500 0.812 0.188 0.375 3 9 1.625 1.030 2.500 10-4-33
1000 0.940 1.500 0.812 0.250 0.375 12 9 1.625 1.312 1.812 10-4-713
1000 0.940 1.500 0.812 0.250 0.375 3 6 1.625 1.030 2.500 10-4-43
1000 0.940 1.500 0.875   0.375   3 1.625   2.500 10-4-203
1000 0.940 1.500 0.875 0.188 0.375 3 9 1.625 1.030 2.500 10-4-53
1000 0.940 1.500 0.875 0.250 0.375 3 9 1.625   2.500 10-4-63
1000 0.940 1.500 0.875 0.250 0.375 3 9 1.625   2.500 10-4-453
1000 0.940 1.500 0.938 0.250 0.375 3 9 1.625   2.500 10-4-73
1000 0.940 1.500 1.000         1.625 1.030 2.500 10-4-443
1000 0.940 1.500 1.000 0.188 0.375 3 9 1.625 1.030 2.500 10-4-83
1000 0.940 1.500 1.000 0.250 0.375 3 12 1.625 1.030 2.500 10-4-573
1000 0.940 1.500 1.000 0.250 0.375 3 9 2.000 1.030 2.500 10-4-93
1000 0.940 1.500 1.062 0.250 0.375 9 6 2.000 1.030 2.500 10-4-163
1000 0.940 1.500 1.125 0.250 0.375 3 12 2.000 1.030 2.500 10-4-143
1000 0.940 1.500 1.125 0.250 0.375 3 6 2.000 1.030 2.500 10-4-103
1000 0.940 1.500 1.125 0.312 0.375 3 6 2.000 1.030 2.500 10-4-1473
1000 0.940 1.500 1.125 0.312 0.375 3 9 2.000 1.030 2.500 10-4-233
1000 0.940 1.500 1.125 0.312 0.375 3 9 2.000 1.030 2.500 10-4-113
1000 0.940 1.500 1.188 0.312 0.375 3 9 2.000 1.030 2.500 10-4-153
1000 0.940 1.500 1.250 0.250 0.375 9 12 2.000 1.030 2.500 10-4-183
1000 0.940 1.500 1.250 0.312 0.375 3 9 2.000 1.030 2.500 10-4-123
1000 0.940 1.500 1.250 0.312 0.375 9 12 2.000   2.500 10-4-193
1000 0.940 1.500 1.375 0.312 0.375 3 9 2.000 1.030 2.500 10-4-293
1000 0.940 1.500 1.375 0.375 0.375 3 6 2.250   2.500 10-4-213
1000 0.940 1.500 1.438 0.375 0.375 3 9 2.250   2.500 10-4-383
1000 0.940 1.500 1.500 0.375 0.375 3 6 2.250   2.500 10-4-223
1110 0.940 2.660 0.750 0.188 0.375 12 3 1.688   2.250 1-4-783
1110 0.940 2.660 0.750 0.188 0.375 12 6 1.688   2.250 1-4-1383
1110 0.940 2.660 0.875 0.188 0.375 9 3 2.000   2.250 1-4-803
1110 0.940 2.660 1.000 0.250 0.375 9 3 2.000   2.250 1-4-823
1110 0.940 2.660 1.125 0.312 0.375 3 9 2.000   2.250 1-4-943
1110 0.940 2.660 1.250 0.250 0.375 3 6 2.000   2.250 1-4-1133
1110 0.940 2.660 1.250 0.312 0.375 3 9 2.000   2.250 1-4-933
1140 1.060 1.810 1.125 0.250 0.375 12         1-4-3043
1140 1.060 1.810 1.250 0.250 0.375 12         1-4-3093
1140 1.060 1.810 1.250 0.312 0.375 12         1-4-3113
1140 1.060 1.810 1.375 0.312 0.375 9         1-4-3133
1240 1.130 2.880 1.125 0.250 0.375 12         2-4-1363
1240 1.130 2.880 1.250 0.250 0.375 12         2-4-1413
1240 1.130 2.880 1.250 0.312 0.375 12         2-4-1423
1240 1.130 2.880 1.375 0.312 0.375 12         2-4-1873
1240 1.130 2.880 1.500 0.375 0.375 9         2-4-1463
1310 1.060 3.470 OR 3.220 0.750         2.125   2.562 2-4-177
1310 1.060 3.470 OR 3.220 0.750 0.188 0.375 12 6 2.125   2.562 2-4-433
1310 1.060 3.470 OR 3.220 0.812 0.250 0.375 12 6 2.125   2.562 2-4-443
1310 1.060 3.470 OR 3.220 0.875 0.188 0.375 12 6 2.125   2.562 2-4-453
1310 1.060 3.470 OR 3.220 0.875 0.250 0.375 12 6 2.125   2.562 2-4-583
1310 1.060 3.470 OR 3.220 0.938 0.250 0.375 12 6 2.000   2.562 2-4-463
1310 1.060 3.470 OR 3.220 1.000 0.250 0.375 12 6 & 12 2.125   2.562 2-4-473
1310 1.060 3.470 OR 3.220 1.125 0.250 0.375 12 6 2.125   2.562 2-4-503
1310 1.060 3.470 OR 3.220 1.125 0.312 0.375 12 6 2.125   2.562 2-4-523
1310 1.060 3.470 OR 3.220 1.188 0.312 0.375 12 6 2.125   2.562 2-4-553
1310 1.060 3.470 OR 3.220 1.250         2.125   2.562 2-4-853
1310 1.060 3.470 OR 3.220 1.250   0.375     2.120   2.562 2-4-2043
1310 1.060 3.470 OR 3.220 1.250 0.250 0.375 12 6 2.125   2.562 2-4-573
1310 1.060 3.470 OR 3.220 1.250 0.312 0.375 12   2.125   2.561 2-4-613
1310 1.060 3.470 OR 3.220 1.250 0.312 0.375 12 6 2.125   2.562 2-4-533
1310 1.060 3.470 OR 3.220 1.250 0.312 0.375 12 6, 9, 12 2.125   2.562 2-4-2613
1310 1.060 3.470 OR 3.220 1.250 0.312 0.500 12 6 2.125   2.562 2-4-663
1310 1.060 3.470 OR 3.220 1.250 0.313 0.375 12 6 2.120   2.940 2-4-783
1310 1.060 3.470 OR 3.220 1.250 0.314 0.375 12 6 2.120 1.495 2.935 2-4-783-1
1310 1.060 3.470 OR 3.220 1.375 0.312 0.375 12 3 2.000   2.562 2-4-1103
1310 1.060 3.470 OR 3.220 1.375 0.375 0.375 12 6 2.000   2.562 2-4-803
1310 1.060 3.470 OR 3.220 1.375 0.375 0.375 12 6 2.125 1.125 2.594 2-4-1053
1310 1.060 3.470 OR 3.220 1.500 0.375 0.375 12 6 2.125   2.562 2-4-1233
1310 1.060 3.470 OR 3.220 1.503         2.000 1.625 2.562 2-4-353
1310 1.060 3.470 OR 3.220 1.688 0.375 0.375 12 12 2.500   2.562 2-4-2013
1340 1.250 3.950 1.375 0.312 0.375 12 12 & 3       3-4-813
1350 1.190 3.880 OR 3.630 0.750         2.000   4.090 3-4-543-1
1350 1.190 3.880 OR 3.630 1.000 0.250   12   2.000   2.690 3-4-33
1350 1.190 3.880 OR 3.630 1.125 0.250   12   2.000   2.688 3-4-43
1350 1.190 3.880 OR 3.630 1.250 0.312   12   2.000   2.750 3-4-53
1350 1.190 3.880 OR 3.630 1.250 0.312   12   2.000   2.688 3-4-93
1350 1.190 3.880 OR 3.630 1.250 0.312 0.375 12   2.000   2.750 3-4-13
1350 1.190 3.880 OR 3.630 1.250 0.312 0.375 12 6 2.062   3.000 3-4-103
1350 1.190 3.880 OR 3.630 1.250 0.314 0.375 12 6 2.250 1.500 3.000 3-4-283-1
1350 1.190 3.880 OR 3.630 1.375 0.312 0.375 12 6 2.250 1.500 3.031 3-4-613-1
1350 1.190 3.880 OR 3.630 1.500 0.313 0.375 12       3.500 3-4-243-1
1350 1.190 3.880 OR 3.630 1.500 0.375 0.375 12 6     3.469 3-4-333-1
1410 1.190 4.440 OR 4.190 1.250 0.250 0.500 12 6 2.250   3.700 3-4-163-1
1410 1.190 4.440 OR 4.190 1.250 0.312 0.375 12 6 2.250 2.000 3.688 3-4-343-1
1410 1.190 4.440 OR 4.190 1.250 0.313   12   2.250 2.000 3.700 3-4-1763
1410 1.190 4.440 OR 4.190 1.250 0.313   12   2.252 2.000 3.700 3-4-1763-1
1410 1.190 4.440 OR 4.190 1.500 0.377 0.500 12 135 2.690 2.270 4.000 3-4-263-1
1410 1.190 4.440 OR 4.190 1.750 0.439 0.500 12   2.750   4.250 3-4-273-1
1480 1.380 4.440 OR 4.190 1.375         2.130   1.440 3-4-1743
1480 1.380 4.440 OR 4.190 1.500 0.375 0.375 12 12 & 6 3.188 2.063 4.625 3-4-1173
1480 1.380 4.440 OR 4.190 2.000 0.500 0.375 3 3 & 9 3.188 2.063 4.625 3-4-1753
1550 1.380 4.960 1.862         3.070 2.625 4.685 4-4-843-1
1610 1.880 5.310 1.750         2.750   5.620 5-4-413
1610 1.880 5.310 2.250         3.344   5.620 5-4-453
