Dana End Yokes

Splined - SPL100 - SPL90 Catalogue

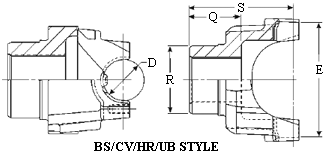

Series Dimension

D

 Dimension

E

 Spline O.D. # of Splines (R) Hub

Diameter

 (Q) Length

Thru Hole

 (S) C/L

to End

 C'Bore

Depth

 Style Slinger

Part #

 Part #
SPL100 1.630 4.960 1.771 34 I 2.750 2.230 4.060   BS   100-4-931-1
SPL100 1.630 4.960 1.790 34 I 2.562 2.750 5.700   BS 231059 100-4-901-1X
SPL100 1.630 4.960 1.790 34 I 2.562 2.755 5.630   BS 231059 100-4-1021-1X
SPL100 1.630 4.960 2.024 39 I 2.625 2.245 4.160   BS 232167 100-4-1081-1X
SPL100 1.630 4.960 2.024 39 I 2.625 2.245 7.295   BS 232039 100-4-1331-1X
SPL100 1.630 4.960 2.024 39 I 3.000 1.817 4.150 0.250 BS 5006975 5006608
SPL100 1.630 4.960 2.024 39 I 3.000 2.269 7.295   BS 232511 100-4-1371-1X
SPL100 1.630 4.960 2.024 39 I 3.000 2.284 4.750   BS 232511 100-4-961-1X
SPL100 1.630 4.960 2.143 41 I 3.000 2.166 4.310 0.310 BS 5002871 5002875
SPL100 1.630 4.960 2.173 26 I 3.069 1.812 4.330 0.197 BS 5003086 5003087
SPL100 1.630 4.960 2.195 34 I 3.543 1.889 3.823   BS   5007598
SPL140 1.940 5.460 1.774 34 2.500 2.500 4.950   HR 231101 140-4-261-1X
SPL140 1.940 5.460 1.962 10 2.750 2.805 5.810   HR   140-4-181-1
SPL140 1.940 5.460 1.998 38 I 2.750 2.125 4.730   BS   140-4-891-1
SPL140 1.940 5.460 1.998 38 I 2.750 2.125 4.830   HR   140-4-111-1
SPL140 1.940 5.460 1.998 38 I 2.750 2.125 4.830   HR   140-4-1131-1
SPL140 1.940 5.460 1.998 38 I 2.750 2.125 7.728   HR   140-4-1021-1
SPL140 1.940 5.460 1.998 38 I 2.810 2.745 5.370   HR   140-4-11-1
SPL140 1.940 5.460 1.998 38 I 3.000 2.125 4.680   HR 232200 140-4-911-1X
SPL140 1.940 5.460 2.024 39 2.750 2.435 5.250 0.090 HR 231599 140-4-1431-1X
SPL140 1.940 5.460 2.024 39 3.000 2.312 5.680 0.090 HR 232182 140-4-241-1X
SPL140 1.940 5.460 2.024 39 3.000 2.312 5.680 0.090 HR 231359 140-4-231-1X
SPL140 1.940 5.460 2.024 39 I 3.000 2.284 4.940 0.250 HR 232511 140-4-371-1X
SPL140 1.940 5.460 2.024 39 I 3.000 2.284 4.940   HR 232511 140-4-1161-1X
SPL140 1.940 5.460 2.024 39 I 3.000 2.284 7.587 0.250 HR 232511 140-4-1401-1X
SPL140 1.940 5.460 2.114 32 I 3.000 2.250 4.810 0.424 HR 232200 140-4-931-1X
SPL140 1.940 5.460 2.143 41 I 2.938 2.500 5.560   HR 232604 140-4-431-1X
SPL140 1.940 5.460 2.178 43 I 3.539 2.050 5.100 0.157 HR   140-4-761-1
SPL140 1.940 5.460 2.178 43 I 3.541 2.047 5.100 0.160 HR   140-4-1231-1
SPL140 1.940 5.460 2.195 34 I 3.543 1.889 4.421   HR   5007599
SPL140 1.940 5.460 2.195 34 I 3.543 1.889 4.646   HR   5007600
SPL140 1.940 5.460 2.250 10 3.500 3.000 6.000   HR 231616 140-4-1101-1X
SPL140 1.940 5.460 2.274 44 3.000 2.500 2.160 0.236 HR 232511 140-4-331-1X
SPL140 1.940 5.460 2.274 44 I 2.938 2.344 5.190   HR 232604 140-4-1201-1X
SPL140 1.940 5.460 2.274 44 I 2.938 2.350 5.190   HR 232604 140-4-451-1X
SPL140 1.940 5.460 2.274 44 I 3.000 2.500 5.160 0.236 HR 232511 140-4-1271-1X
SPL140 1.940 5.460 2.374 46 3.250 2.875 6.210 0.140 HR 231615 140-4-291-1X
SPL140 1.940 5.460 2.390 46 I 3.250 2.323 5.660 0.140 HR 231803 140-4-311-1X
SPL140 1.940 5.460 2.390 46 I 3.250 2.323 5.660 0.140 HR 5003552 5003557
SPL140 1.940 5.460 2.390 46 I 3.312 2.750 5.374 0.157 HR   140-4-1011-1
SPL140 1.940 5.460 2.390 46 I 3.375 3.195 6.440 0.580 HR 232610 140-4-391-1X
SPL140 1.940 5.460 2.390 46 I 3.500 3.375 5.920   HR   140-4-751-1
SPL140 1.940 5.460 2.500 10 3.750 3.000 5.960   HR 231616 140-4-1121-1X
SPL140 1.940 5.460 2.500 10 3.750 3.000 5.960   HR 231616 140-4-51-1X
SPL140 1.940 5.460 2.544 49 I 3.750 3.000 5.570   HR 231616 140-4-151-1X
SPL140 1.940 5.460 2.544 49 I 4.000 2.750 6.060 0.180 HR   140-4-881-1
SPL140 1.940 5.460 2.750 10 3.750 3.000 6.570   HR 230902 140-4-71-1X
SPL140 1.940 5.460 2.750 10 3.750 3.000 6.570   HR 231616 140-4-91-1X
SPL140 1.940 5.460 2.794 54 I   2.745 6.320   HR   140-4-201-1
SPL140 1.940 5.460 2.795 55 I 4.725 2.047 4.980 0.150 HR   140-4-771-1
SPL170 2.170 6.460 1.774 34 2.500 2.250 6.440 0.090 HR 231101 5009705
SPL170 2.170 6.460 1.790 34 I 2.500 2.250 5.030 0.090 HR   170-4-921-1
SPL170 2.170 6.460 1.790 34 I 2.625 2.438 5.600 0.250 HR 232166 170-4-121-1X
SPL170 2.170 6.460 1.790 34 I 2.625 2.438 6.250 0.250 HR 232166 170-4-141-1X
SPL170 2.170 6.460 1.989 30 I 3.000 2.685 6.580 0.220 HR   170-4-771-1
SPL170 2.170 6.460 1.998 38 I 2.750 2.125 4.844   HR   170-4-541-1
SPL170 2.170 6.460 2.024 39 2.750 2.000 5.370 0.120 HR 232042-2 170-4-1261-1X
SPL170 2.170 6.460 2.024 39 3.000 2.312 5.090 0.105 HR 231359 170-4-651-1X
SPL170 2.170 6.460 2.024 39 3.000 2.312 5.090 0.105 HR 232182 170-4-701-1X
SPL170 2.170 6.460 2.024 39 3.000 2.312 5.090 0.105 HR 231102 170-4-681-1X
SPL170 2.170 6.460 2.024 39 3.000 2.312 6.391 0.105 HR 231359 170-4-671-1X
SPL170 2.170 6.460 2.024 39 3.000 2.312 6.391 0.105 HR 232182 170-4-691-1X
SPL170 2.170 6.460 2.024 39 I 2.625 2.250 4.938 0.250 HR 232167 170-4-161-1X
SPL170 2.170 6.460 2.024 39 I 2.625 2.250 6.016 0.250 HR 232167 170-4-181-1X
SPL170 2.170 6.460 2.024 39 I 2.625 2.500 5.266 0.250 HR 232514 170-4-221-1X
SPL170 2.170 6.460 2.024 39 I 2.625 2.500 5.750 0.250 HR 232514 5008578
SPL170 2.170 6.460 2.024 39 I 2.625 2.500 6.500 0.250 HR 232514 170-4-241-1X
SPL170 2.170 6.460 2.024 39 I 2.625 2.500 6.500 0.250 HR 232514 170-4-1651-1X
SPL170 2.170 6.460 2.024 39 I 3.000 2.250 5.031 0.280 HR 232200 170-4-861-1X
SPL170 2.170 6.460 2.024 39 I 3.000 2.250 5.031 0.280 HR 232199 170-4-851-1X
SPL170 2.170 6.460 2.024 39 I 3.000 2.250 6.250 0.306 HR 232200 170-4-811-1X
SPL170 2.170 6.460 2.024 39 I 3.000 2.281 5.156 0.250 HR 232511 170-4-261-1X
SPL170 2.170 6.460 2.024 39 I 3.000 2.281 5.540 0.250 HR 232511 5008577
SPL170 2.170 6.460 2.024 39 I 3.000 2.281 6.240 0.250 HR 232511 170-4-1631-1X
SPL170 2.170 6.460 2.024 39 I 3.000 2.281 6.240 0.250 HR 232511 170-4-281-1X
SPL170 2.170 6.460 2.024 39 I 3.000 2.500 5.280 0.280 HR   170-4-821-1
SPL170 2.170 6.460 2.024 39 I 3.000 2.500 6.500 0.280 HR   170-4-831-1
SPL170 2.170 6.460 2.114 32 I 3.000 2.250 5.000 0.424 HR 232200 170-4-901-1X
SPL170 2.170 6.460 2.114 32 I 3.000 2.250 6.312 0.424 HR 232200 170-4-961-1X
SPL170 2.170 6.460 2.143 41 I 2.938 2.500 5.320   HR 232604 170-4-361-1X
SPL170 2.170 6.460 2.143 41 I 2.938 2.500 6.680   HR 232604 170-4-381-1X
SPL170 2.170 6.460 2.143 41 I 2.938 3.000 5.800 0.380 HR 232609 170-4-341-1X
SPL170 2.170 6.460 2.143 41 I 2.938 3.000 7.190 0.380 HR 232609 170-4-321-1X
SPL170 2.170 6.460 2.143 41 I 2.938 3.000 7.190 0.380 HR 232168 5008448
SPL170 2.170 6.460 2.143 41 I 2.938 3.000 7.190 0.380 HR 232168 131451K
SPL170 2.170 6.460 2.178 43 I 3.540 2.050 5.340 0.157 HR   170-4-1081-1
SPL170 2.170 6.460 2.225 6 3.000 3.250 6.030   HR   170-4-1441-1
SPL170 2.170 6.460 2.250 10 3.500 3.000 5.750   HR 231616 170-4-461-1X
SPL170 2.170 6.460 2.274 44 I 2.938 2.350 5.094   HR 232604 170-4-31-1X
SPL170 2.170 6.460 2.274 44 I 2.938 2.500 5.281   HR 232168 170-4-101-1X
SPL170 2.170 6.460 2.274 44 I 3.000 2.500 5.270 0.236 HR 232511 170-4-201-1X
SPL170 2.170 6.460 2.364 18 I 3.500 3.375 6.350   HR   170-4-1061-1
SPL170 2.170 6.460 2.364 36 I 3.000 2.685 5.470   HR 232200 170-4-1021-1X
SPL170 2.170 6.460 2.364 36 I 3.000 2.685 6.780   HR 232200 170-4-791-1X
SPL170 2.170 6.460 2.364 36 I 3.500 2.485 5.270 0.306 HR 232201 170-4-1041-1X
SPL170 2.170 6.460 2.374 46 3.250 2.875 5.760 0.140 HR 231615 170-4-591-1X
SPL170 2.170 6.460 2.374 46 3.250 2.875 5.760 0.140 HR 231179 170-4-581-1X
SPL170 2.170 6.460 2.374 46 3.250 2.875 7.250 0.140 HR 231615 170-4-611-1X
SPL170 2.170 6.460 2.374 46 3.500 2.406 5.880   HR 232042-10 170-4-1221-1X
SPL170 2.170 6.460 2.374 46 3.500 2.406 6.688   HR 232042-10 170-4-1291-1X
SPL170 2.170 6.460 2.374 46 3.750 2.406 5.190   HR   170-4-1191-1X
SPL170 2.170 6.460 2.390 46 I 2.879 2.750 5.590 0.157 HR   170-4-1271-1
SPL170 2.170 6.460 2.390 46 I 3.250 2.328 5.100 0.140 HR 5003552 5003558
SPL170 2.170 6.460 2.390 46 I 3.250 2.328 5.100 0.140 HR 231803 170-4-721-1X
SPL170 2.170 6.460 2.390 46 I 3.250 2.328 6.438 0.140 HR 231803 170-4-741-1X
SPL170 2.170 6.460 2.390 46 I 3.250 2.875 5.760 0.140 HR   170-4-1681-1
SPL170 2.170 6.460 2.390 46 I 3.375 3.195 6.531 0.580 HR 232610 170-4-301-1X
SPL170 2.170 6.460 2.500 10 3.500 2.406 5.188   HR 232042-11 170-4-1351-1X
SPL170 2.170 6.460 2.500 10 3.750 3.000 5.750   HR 231616 170-4-481-1X
SPL170 2.170 6.460 2.544 49 I 3.750 3.000 6.000   HR 231616 170-4-421-1X
SPL170 2.170 6.460 2.544 49 I 3.818 2.125 6.260 0.120 HR 5008437 5008451
SPL170 2.170 6.460 2.544 49 I 3.818 2.126 5.530 0.120 HR 5008437 131433K
SPL170 2.170 6.460 2.544 49 I 3.818 2.126 6.260 0.120 HR 5008437 131434K
SPL170 2.170 6.460 2.544 49 I 3.820 2.135 5.530 0.120 HR 5008437 5008458
SPL170 2.170 6.460 2.544 49 I 3.820 2.675 6.810 0.240 HR 5008437 5008461
SPL170 2.170 6.460 2.544 49 I 3.820 2.675 6.810 0.240 HR 5008437 132931K
SPL170 2.170 6.460 2.544 49 I 3.820 2.682 6.040 0.240 HR 5008437 132863K
SPL170 2.170 6.460 2.544 49 I 3.820 2.682 6.040 0.240 HR 5008437 5008444
SPL170 2.170 6.460 2.544 49 I 4.000 2.750 6.050 0.180 HR   170-4-1161-1
SPL170 2.170 6.460 2.750 10   3.000 5.850   HR   170-4-531-1
SPL170 2.170 6.460 2.750 10 3.500 2.992 6.000   HR   170-4-1711-1
SPL170 2.170 6.460 2.750 10 3.750 3.000 5.850   HR 230902 170-4-501-1X
SPL170 2.170 6.460 2.750 10 3.750 3.000 5.850   HR 231616 170-4-521-1X
SPL170 2.170 6.460 2.750 10 4.000 2.935 5.800   HR   170-4-1141-1
SPL170 2.170 6.460 2.794 54 I   2.750 5.600   HR   170-4-561-1
SPL170 2.170 6.460 2.795 55 I 4.725 2.047 5.200 0.150 HR   170-4-1091-1
SPL250 2.360 6.410 2.024 39 I 3.000 2.245 5.240 0.280 HR 232199 250-4-391-1X
SPL250 2.360 6.410 2.114 32 I 3.000 2.245 5.240 0.424 HR 232200 250-4-421-1X
SPL250 2.360 6.410 2.143 41 I 2.938 2.500 5.490   HR 232604 250-4-141-1X
SPL250 2.360 6.410 2.225 6 3.000 3.250 6.240   HR 829-W 250-4-541-1X
SPL250 2.360 6.410 2.225 6 3.000 3.250 6.250   HR   250-4-811-1
SPL250 2.360 6.410 2.274 44 I 2.938 2.350 5.328   HR 232604 250-4-41-1X
SPL250 2.360 6.410 2.274 44 I 2.938 2.500 5.484   HR 232168 250-4-61-1X
SPL250 2.360 6.410 2.274 44 I 3.000 2.500 5.490 0.236 HR 232511 250-4-81-1X
SPL250 2.360 6.410 2.364 36 I 3.000 2.685 5.680   HR 232199 250-4-371-1X
SPL250 2.360 6.410 2.274 46 3.250 2.625 5.610   HR 231179 250-4-781-1X
SPL250 2.360 6.410 2.274 46 3.250 2.875 5.870 0.140 HR 231179 250-4-291-1X
SPL250 2.360 6.410 2.274 46 3.250 2.875 5.870 0.140 HR 231615 250-4-301-1X
SPL250 2.360 6.410 2.274 46 3.500 2.406 6.140   HR 232042-10 250-4-651-1X
SPL250 2.360 6.410 2.274 46 3.750 2.400 6.650   HR   250-4-801-1X
SPL250 2.360 6.410 2.274 46 3.750 2.406 5.410   HR   250-4-621-1X
SPL250 2.360 6.410 2.390 46 I 3.250 2.312 5.312 0.140 HR 500352 5003560
SPL250 2.360 6.410 2.390 46 I 3.250 2.312 5.312 0.140 HR 231803 250-4-351-1X
SPL250 2.360 6.410 2.390 46 I 3.344 2.750 5.750   HR   250-4-21-1
SPL250 2.360 6.410 2.390 46 I 3.375 3.195 6.760 0.580 HR 232610 250-4-101-1X
SPL250 2.360 6.410 2.390 46 I 3.500 3.375 6.560   HR   250-4-471-1
SPL250 2.360 6.410 2.500 10 3.500 2.406 5.500   HR 232042-11 250-4-711-1X
SPL250 2.360 6.410 2.500 10 3.750 3.000 6.062   HR 231616 250-4-201-1X
SPL250 2.360 6.410 2.500 10 3.750 3.000 6.250   HR   250-4-561-1
SPL250 2.360 6.410 2.544 49 I 3.750 3.000 6.250   HR 231616 250-4-161-1X
SPL250 2.360 6.410 2.544 49 I 3.819 2.125 5.830 0.120 HR 5008437 5008459
SPL250 2.360 6.410 2.544 49 I 3.819 2.126 5.830 0.120 HR 5008437 131435K
SPL250 2.360 6.410 2.544 49 I 3.819 2.692 6.200 0.240 HR 5008437 131446K
SPL250 2.360 6.410 2.544 49 I 3.819 2.692 6.200 0.240 HR 5008437 5008445
SPL250 2.360 6.410 2.635 20 I 3.750 2.750 6.270   HR 231745 250-4-521-1X
SPL250 2.360 6.410 2.750 10   3.000 6.310   HR   250-4-251-1
SPL250 2.360 6.410 2.750 10 3.500 3.000 6.312   HR 230674 250-4-761-1X
SPL250 2.360 6.410 2.750 10 3.750 3.000 6.297   HR 231616 250-4-241-1X
SPL250 2.360 6.410 2.750 10 3.750 3.000 6.300   HR 230902 250-4-221-1X
SPL250 2.360 6.410 2.750 10 4.000 2.935 6.370   HR   250-4-551-1
SPL250 2.360 6.410 2.794 54 I   2.750 5.703   HR   250-4-271-1
SPL250 2.360 6.410 2.794 54 I 3.750 2.770 6.330   HR   250-4-901-1
SPL250 2.360 6.410 2.795 55 I 4.725 2.047 5.413 0.150 HR   250-4-501-1
SPL250 2.360 6.410 2.922 22 I 4.067 2.645 6.030 0.400 HR   250-4-911-1
SPL250 2.360 6.410 3.124 48 I 4.250 1.955 5.079   HR   5005681
SPL55 1.380 4.190 1.567 36 I 2.618 1.980 4.025   BS   55-4-11-1
SPL55 1.380 4.190 1.790 34 I 2.375 2.188 4.219   BS 233034 55-4-41-1X
SPL55 1.380 4.190 1.790 34 I 2.564 2.760 4.870   BS 231059 55-4-101-1X
SPL55 1.380 4.190 1.790 34 I 2.564 2.760 4.870   BS 231059 55-4-131-1X
SPL55 1.380 4.190 1.790 34 I 2.564 2.760 4.870   BS 231059 5001480
SPL55 1.380 4.190 2.024 39 I 3.000 2.281 4.330 0.250 BS 232511 55-4-81-1X
SPL70 1.380 4.960 1.543 24 I 2.241 1.844 5.750   BS   70-4-271-1X
SPL70 1.380 4.960 1.750 10 2.500 2.000 5.750   BS   70-4-171-1X
SPL70 1.380 4.960 1.783 34 I 2.940 2.236 4.244   BS   70-4-11-1
SPL70 1.380 4.960 1.790 34 I 2.375 2.188 4.000   BS 233034 70-4-61-1X
SPL70 1.380 4.960 1.790 34 I 2.562 2.750 6.650   BS 231059 5001789
SPL70 1.380 4.960 1.790 34 I 2.564 2.750 5.530   BS 231059 70-4-191-1X
SPL70 1.380 4.960 2.024 39 I 3.000 1.844 3.878 0.250 BS 5006975 5006977
SPL70 1.380 4.960 2.024 39 I 3.000 1.847 3.893 0.250 BS 5006975 5003330
SPL70 1.380 4.960 2.024 39 I 3.000 2.281 4.281 0.250 BS 232511 70-4-111-1X
SPL70 1.380 4.960 2.143 41 I 2.938 2.500 4.555   BS 232604 70-4-151-1X
SPL90 1.630 4.960 1.750 10 2.500 1.938 4.125   BS   90-4-371-1
SPL90 1.630 4.960 1.774 34 I 2.500 2.250 4.110   BS 231206 90-4-761-1X
SPL90 1.630 4.960 1.790 34 I 2.375 2.188 5.625   BS 232198 90-4-551-1X
SPL90 1.630 4.960 1.790 34 I 2.500 2.250 4.062   BS   90-4-11-1
SPL90 1.630 4.960 1.790 34 I 2.562 2.750 5.609   BS 231059 90-4-191-1X
SPL90 1.630 4.960 1.790 34 I 2.562 2.750 5.625   BS 231059 90-4-501-1X
SPL90 1.630 4.960 1.962 10 2.625 2.250 5.094   BS 230909 90-4-211-1X
SPL90 1.630 4.960 1.962 10 2.750 2.781 4.984   BS   90-4-381-1
SPL90 1.630 4.960 1.998 38 I 2.750 2.125 4.000   BS   90-4-71-1
SPL90 1.630 4.960 1.998 38 I 2.750 2.125 4.250   BS   90-4-391-1
SPL90 1.630 4.960 1.998 38 I 2.750 2.125 7.562   BS   90-4-111-1
SPL90 1.630 4.960 1.998 38 I 3.000 2.125 4.250   BS 232200 90-4-571-1X
SPL90 1.630 4.960 2.000 10 2.750 3.000 4.969   BS   90-4-21-1
SPL90 1.630 4.960 2.024 39 3.000 2.312 4.625   BS 231359 90-4-321-1X
SPL90 1.630 4.960 2.024 39 I 2.626 2.245 4.160   BS 232039 90-4-631-1X
SPL90 1.630 4.960 2.024 39 I 3.000 2.281 4.750 0.250 BS 232511 90-4-251-1X
SPL90 1.630 4.960 2.114 32 I 3.000 2.250 4.375 0.424 BS 232200 90-4-591-1X
SPL90 1.630 4.960 2.141 41 I 2.938 2.500 4.562   BS 232604 90-4-691-1X
SPL90 1.630 4.960 2.178 41 I 3.543 1.882 4.570   BS 5001045 5001046
SPL90 1.630 4.960 2.178 43 I 3.547 2.031 4.625 0.157 BS   90-4-791-1
SPL90 1.630 4.960 2.250 10 3.750 3.000 5.219   BS 231616 90-4-171-1X
SPL90 1.630 4.960 2.281 44 I 2.938 2.344 4.469   BS 232604 100-4-1381-1X
SPL90 1.630 4.960 2.364 36 I 3.000 2.688 4.812   BS 232200 90-4-611-1X
SPL90 1.630 4.960 2.374 46 I 3.250 2.875 5.188   BS 231615 90-4-361-1X
SPL90 1.630 4.960 2.390 46 I 3.250 2.312 4.641   BS 231803 90-4-341-1X
SPL90 1.630 4.960 2.390 47 I 3.344 1.781 4.250   BS 232195 90-4-531-1X
