Dana End Yokes
Slingers Catalogue

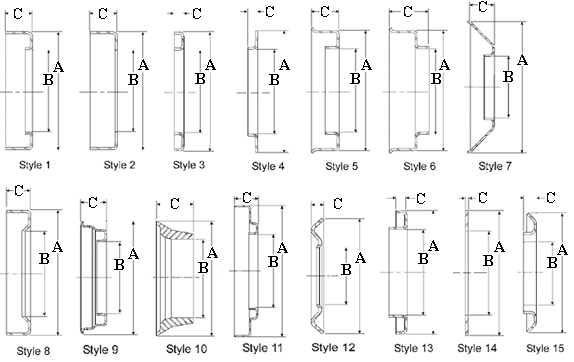

| Style | (A) O.D. | (B) I.D. | (C). | Part # |
| 1 | 3.656 | 2.141 | 0.438 | 231004 |
| 1 | 3.938 | 2.188 | 0.531 | 230421 |
| 1 | 4.000 | 2.062 | 0.562 | 230118 |
| 1 | 4.125 | 1.562 | 0.406 | 31875 |
| 1 | 4.134 | 2.308 | 0.560 | 230124 |
| 1 | 4.635 | 2.938 | 0.312 | 230909 |
| 1 | 4.688 | 2.954 | 0.500 | 231541 |
| 1 | 4.812 | 2.500 | 1.000 | 231206 |
| 1 | 4.812 | 2.953 | 0.812 | 98-1361 |
| 1 | 4.891 | 3.000 | 0.688 | 231022 |
| 1 | 4.891 | 3.141 | 0.938 | 231102 |
| 1 | 5.000 | 3.109 | 0.750 | 232189 |
| 1 | 5.359 | 3.250 | 1.375 | 232055 |
| 1 | 5.453 | 3.938 | 0.656 | 230795 |
| 1 | 5.719 | 2.839 | 0.875 | 98-1362 |
| 1 | 5.750 | 3.391 | 0.938 | 231179 |
| 1 | 6.000 | 2.938 | 0.938 | 231101 |
| 1 | 6.000 | 3.125 | 0.812 | 231359 |
| 1 | 6.125 | 3.516 | 0.750 | 230674 |
| 1 | 6.750 | 3.391 | 1.500 | 231599 |
| 1 | 7.000 | 3.141 | 0.812 | 230921 |
| 1 | 7.000 | 3.484 | 0.891 | 231803 |
| 1 | 7.406 | 3.109 | 0.750 | 231615 |
| 10 | 4.344 | 2.750 | 1.000 | 232167 |
| 10 | 4.781 | 3.000 | 1.070 | 232604 |
| 11 | 2.180 | 1.535 | 0.729 | 42735 |
| 12 | 5.120 | 1.875 | 0.793 | 42501 |
| 13 | 3.812 | 1.875 | 0.312 | 30798 |
| 2 | 4.250 | 3.500 | 0.625 | 230998 |
| 2 | 4.891 | 3.500 | 0.750 | 231047 |
| 2 | 6.000 | 3.500 | 0.812 | 231866 |
| 2 | 7.000 | 3.750 | 0.719 | 231745 |
| 3 | 2.125 | 1.562 | 0.219 | 15099 |
| 3 | 2.125 | 1.603 | 0.219 | 41498 |
| 3 | 2.438 | 1.875 | 0.219 | 34592 |
| 3 | 4.000 | 3.000 | 0.812 | 232367 |
| 3 | 4.062 | 2.766 | 1.125 | 232039 |
| 3 | 4.328 | 3.000 | 0.938 | 231028 |
| 3 | 4.438 | 2.500 | 0.531 | 565-W |
| 3 | 4.625 | 2.391 | 0.875 | 230746 |
| 3 | 4.688 | 3.109 | 1.675 | 232372 |
| 3 | 4.906 | 2.625 | 0.500 | 232042-2 |
| 3 | 5.297 | 3.125 | 0.500 | 232042-6 |
| 3 | 5.406 | 3.375 | 0.406 | 232042-11 |
| 3 | 5.797 | 3.375 | 0.406 | 232042-10 |
| 3 | 6.438 | 4.016 | 0.500 | 232193 |
| 4 | 5.720 | 4.067 | 0.920 | 230902 |
| 5 | 3.125 | 2.188 | 0.340 | 42779 |
| 5 | 4.750 | 2.938 | 0.312 | 230794 |
| 5 | 6.000 | 3.141 | 0.375 | 232182 |
| 6 | 3.425 | 3.156 | 0.781 | 232166 |
| 6 | 3.766 | 3.000 | 0.641 | 232168 |
| 6 | 3.820 | 3.000 | 1.260 | 232609 |
| 6 | 3.954 | 3.031 | 0.375 | 231750 |
| 6 | 3.954 | 3.062 | 0.562 | 231755 |
| 6 | 4.125 | 2.750 | 0.390 | 232514 |
| 6 | 4.594 | 3.844 | 0.422 | 231616 |
| 6 | 5.000 | 3.125 | 0.350 | 232511 |
| 7 | 2.266 | 1.781 | 0.500 | 98-1473 |
| 7 | 2.750 | 1.781 | 0.500 | 230881 |
| 7 | 3.562 | 2.375 | 1.250 | 230386 |
| 7 | 3.734 | 2.281 | 0.797 | 231356 |
| 7 | 4.000 | 2.688 | 0.594 | 230897 |
| 7 | 4.243 | 2.750 | 0.781 | 232037 |
| 7 | 4.375 | 3.062 | 0.625 | 829W |
| 7 | 4.797 | 2.969 | 0.562 | 231015 |
| 8 | 2.891 | 1.891 | 0.422 | 41195 |
| 8 | 3.312 | 2.469 | 0.562 | 232198 |
| 8 | 3.469 | 2.562 | 0.625 | 231872 |
| 8 | 3.656 | 3.094 | 0.625 | 232199 |
| 8 | 3.828 | 3.094 | 0.562 | 232200 |
| 8 | 4.375 | 2.531 | 0.875 | 230207 |
| 8 | 4.625 | 2.391 | 0.875 | 230895 |
| 8 | 4.812 | 3.594 | 1.000 | 232201 |
| 9 | 5.125 | 3.438 | 1.125 | 231013 |
