Dana End Yokes

Hex Hole Catalogue

Series Dimension D Dimension K (P) Hex Across Flats (R) Hub Diameter (W) Set Screw Diameter Set Screw Location (S) C/L to Hub End Part #
1000 0.940 1.500 0.875 2.000 0.375 3 2.500 10-4-282
1000 0.940 1.500 1.125 2.000 0.375 3 2.500 10-4-32

Rectangular Hole Catalogue

Series Dimension D Dimension K Rectangular Hole Long Side Rectangular Hole Short Side (W) Set Screw Diameter Drilled Pin Hole Part #
      1.125 1.000   0.375 2-4-72
1140 1.060 1.810 1.000 1.125     1-4-242

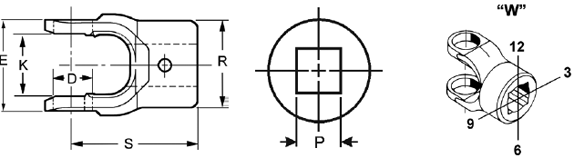

Square Hole Catalogue

Series Dimension D Dimension K (P) Hex Hole Diameter (R) Hub Diameter (W) Set Screw Diameter Set Screw Location (S) C/L to Hub End Part #
1000 0.940 1.500 0.750 1.625 0.375 3 2.500 10-4-22
1000 0.940 1.500 0.812 1.969 0.375 3 2.500 10-4-42
1000 0.940 1.500 0.875 1.625 0.375 3 2.875 10-4-62
1000 0.940 1.500 0.875 1.719     2.500 10-4-82
1000 0.940 1.500 0.875 1.969 0.375 3 2.500 10-4-12
1000 0.940 1.500 1.000 2.000 0.375 3 2.500 10-4-52
1140 1.060 1.810 1.000   0.375     1-4-222
1240 1.130 2.880 1.000         2-4-152
1310 1.060 3.470 OR 3.220 0.875 2.120     2.560 2-4-502

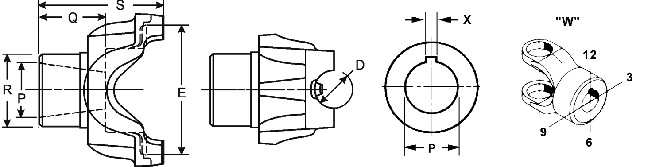

Tapered Hole Catalogue

Series Dimension D Dimension K (P) Tapered Hole Diameter (lg dia) (X) Keyway Width (R) Hub Diameter (Q) Length thru Hole (S) C/L to Spline End Style Part #
1310 1.060 3.470 OR 3.220 1.125 0.312 1.750 1.500 3.000 UB 2-4-154
1310 1.060 3.470 OR 3.220 1.250 0.312 2.125 1.500 2.938 UB 2-4-64
1310 1.060 3.470 OR 3.220 1.375 0.375 2.125 2.000 3.438 UB 2-4-824
1310 1.060 3.470 OR 3.220 1.375 0.375 2.250 2.000 3.438 UB 2-4-834
1310 1.060 3.470 OR 3.220 1.496 0.375 2.200 2.000 3.450 BS 2-4-854
1350 1.190 3.880 OR 3.630 1.246 0.312 2.250 1.500 3.000 BS 3-4-54-1
1350 1.190 3.880 OR 3.630 1.250 0.314 2.620 1.475 3.250 BS 3-4-234-1
1350 1.190 3.880 OR 3.630 1.375 0.375 2.250 2.000 3.531 BS 3-4-24-1
1350 1.190 3.880 OR 3.630 1.496 0.375 2.250 2.000 3.500 BS 3-4-84-1
1410 1.190 4.440 OR 4.190 1.375 0.375 2.250 2.000 3.688 BS 3-4-154-1
1410 1.190 4.440 OR 4.190 1.375 0.375 2.250 2.000 3.688 BS 3-4-14-1
1410 1.190 4.440 OR 4.190 1.496 0.375 2.500 2.000 3.812 BS 3-4-64-1
1650 1.630 5.590 1.750 0.438 2.875 2.250 4.312 BS 5-4-1324
