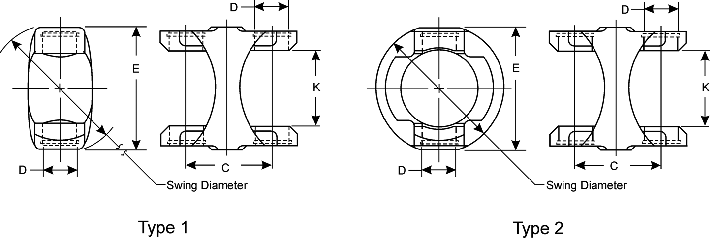

Dana Center Yokes Catalogue
| Series | Dimension D | Dimension E | Dimension K | Center to Center (C) | Swing Diameter | Type | Part # |
| 1000 | 0.940 | 1.500 | 2.125 | 2.500 | 2 | 10-26-47 | |
| 1210 | 1.060 | 2.690 | 2.688 | 3.375 | 2 | 2-26-457 | |
| 1310 | 1.060 | 3.470 | 2.688 | 3.875 | 2 | 2-26-507 | |
| 1310 | 1.060 | 3.470 | 2.688 | 3.875 | 2 | 2-26-497 | |
| 1310 | 1.060 | 3.470 | 2.688 | 3.875 | 2 | 2-26-477 | |
| 1310 | 1.060 | 3.470 | 2.750 | 3.875 | 1 | 2-26-177 | |
| 1310 | 1.060 | 3.470 | 3.000 | 3.875 | 1 | 2-26-257 | |
| 1330 | 1.060 | 3.880 | 2.750 | 4.250 | 2 | 2-26-527 | |
| 1330 | 1.060 | 3.880 | 2.751 | 4.250 | 2 | 2-26-557 | |
| 1330 | 1.060 | 3.880 | 2.766 | 4.250 | 2 | 2-26-467 | |
| 1350 | 1.190 | 3.880 | 2.120 | 1 | 3-26-577 | ||
| 1350 | 1.190 | 3.880 | 2.750 | 4.250 | 1 | 3-26-317 | |
| 1350 | 1.190 | 3.880 | 2.875 | 4.682 | 2 | 3-26-757 | |
| 1410 | 1.190 | 4.440 | 3.375 | 4.688 | 1 | 3-26-717 | |
| 1480 | 1.380 | 4.440 | 3.375 | 3.875 | 1 | 3-26-667 | |
| 1480 | 1.380 | 4.440 | 4.240 | 3.875 | 1 | 3-26-677 | |
| 1550 | 1.380 | 5.250 | 3.938 | 4.125 | 1 | 4-26-437 | |
| 1610 | 1.880 | 5.310 | 4.576 | 1 | 5003513 |
