Dana Companion Flanges

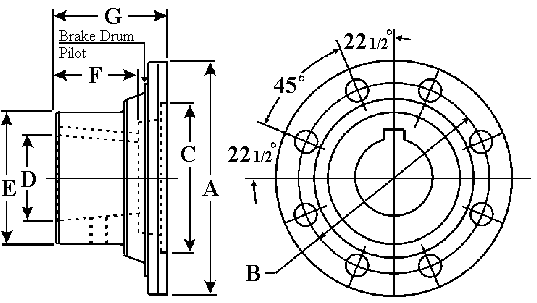

Circular - Tapered Hole Catalogue

Series Dimension A Dimension B SAE

Taper



 (C) Pilot Diameter

M=Male F=Female

 (D) Taper Hole

Bore Diameter

 Keyway

Width (D)

 (E) Hub

Diameter

 (F) Length

Thru Hole

 (G) Flange Face

to Hub End

 Part #
1610 6.880 6.130 1.750 0.625 F 1.750 .438 2.750 2.250 2.938 5-1-1154
1610 6.880 6.130 2.000 6.625 F 2.000 .500 3.250 3.000 3.625 5-1-1924
1650/

1710

     2.000 7.750 F 2.000 .500 3.250 3.000 3.688 6-1-1144

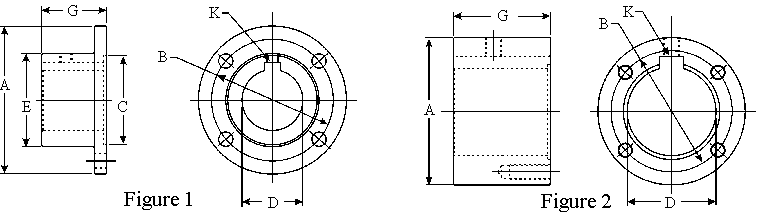

Circular with Round Hole Catalogue

Series Dimension A Dimension B (D) Bore

Diameter

 Keyway

Width (K)

 (C) Pilot Diameter

M=Male F=Female

 Figure Bolt Hole Diameter

D=Drilled T=Tapped

 (E) Hub

Diameter

 (F) Flange Face

to Hub End

 Part #
1310 3.880 3.130 0.750 .000 2.375 F 1 .375 D 2.438 2.000 2-1-1313
1310 3.880 3.130 1.000 .250 2.375 F 1 .375 D 2.438 2.000 2-1-1313-1
1310 3.880 3.130 1.250 .250 2.375 F 1 .375 D 2.438 2.000 2-1-1313-3
1310 3.880 3.130 1.250 .312 2.375 F 1 .375 D 2.438 2.000 2-1-1313-4
1310 3.880 3.130 1.375 .312 2.375 F 1 .375 D 2.438 2.000 2-1-1313-5
1310 3.880 3.130 1.438 .375 2.375 F 1 .375 D 2.438 2.000 2-1-1313-7
1310 3.880 3.130 1.500 .375 2.375 F 1 .375 D 2.438 2.000 2-1-1313-8
1310 3.880 3.130 1.625 .375 2.375 F 1 .375 D 2.438 2.000 2-1-1313-9
1310 3.880 3.130 1.750 .375 2.375 F 2 .375-24 T 3.875 2.500 2-1-1323-1
1310 3.880 3.130 1.875 .500 2.375 F 2 .375-24 T 3.875 2.500 2-1-1323-3
1350 4.560 3.750 1.000   2.750 F 1 .438 2.875 2.000 3-1-1013
1350 4.560 3.750 1.000   2.750 F 1 .440 2.875 3.440 3-1-303
1350 4.560 3.750 1.000 .250 2.750 F 1 .438 2.875 2.000 3-1-1013-1
1350 4.560 3.750 1.125 .250 2.750 F 1 .438 2.875 2.000 3-1-1013-2
1350 4.560 3.750 1.250 .250 2.750 F 1 .438 2.875 2.000 3-1-1013-3
1350 4.560 3.750 1.250 .312 2.750 F 1 .438 2.875 2.000 3-1-1013-4
1350 4.560 3.750 1.375 .312 2.750 F 1 .438 2.875 2.000 3-1-1013-5
1350 4.560 3.750 1.375 .375 2.750 F 1 .438 2.875 2.000 3-1-1013-6
1350 4.560 3.750 1.438 .375 2.750 F 1 .438 2.875 2.000 3-1-1013-7
1350 4.560 3.750 1.500 .375 2.750 F 1 .438 2.875 2.000 3-1-1013-8
1350 4.560 3.750 1.625 .375 2.750 F 1 .438 2.875 2.000 3-1-1013-9
1350 4.560 3.750 1.750   2.750 F 2 .438-20 4.562 3.000 3-1-1023
1350 4.560 3.750 1.750 .375 2.750 F 1 .438 2.875 2.000 3-1-1013-10
1350 4.560 3.750 1.750 .377 2.750 F 1 .440 2.875 3.440 3-1-303-7
1350 4.560 3.750 1.875 .375 2.750 F 1 .438 2.875 2.000 3-1-1013-11
1350 4.560 3.750 1.875 .500 2.750 F 1 .438 2.875 2.000 3-1-1013-12
1350 4.560 3.750 2.000 .500 2.750 F 2 .438-20 4.562 3.000 3-1-1023-1
1350 4.560 3.750 2.125 .500 2.750 F 2 .438-20 4.562 3.000 3-1-1023-2
1350 4.560 3.750 2.250 .500 2.750 F 2 .438-20 4.562 3.000 3-1-1023-10
1350 4.560 3.750 2.250 .625 2.750 F 2 .438-20 4.562 3.000 3-1-1023-3
1350 4.560 3.750 2.375 .625 2.750 F 2 .438-20 4.562 3.000 3-1-1023-4
1350 4.560 3.750 2.750 .625 2.750 F 2 .438-20 4.562 3.000 3-1-1023-7
1480 5.880 4.750 1.250   3.750 F 1 .500 3.750 2.400 4-1-1133
1480 5.880 4.750 1.500 .375 3.750 F 1 .500 3.750 2.500 4-1-1133-1
1480 5.880 4.750 1.625 .375 3.750 F 1 .500 3.750 2.500 4-1-1133-2
1480 5.880 4.750 1.750 .375 3.750 F 1 .500 3.750 2.500 4-1-1133-3
1480 5.880 4.750 1.875 .500 3.750 F 1 .500 3.750 2.500 4-1-1133-5
1480 5.880 4.750 2.000 .500 3.750 F 1 .500 3.750 2.500 4-1-1133-6
1480 5.880 4.750 2.250 .500 3.750 F 1 .500 3.750 2.500 4-1-1133-13
1480 5.880 4.750 2.250 .625 3.750 F 1 .500 3.750 2.500 4-1-1133-8
1480 5.880 4.750 2.375   3.750 F 2 .500-20 5.875 3.000 4-1-1143
1480 5.880 4.750 2.375 .625 3.750 F 1 .500 3.750 2.500 4-1-1133-9
1480 5.880 4.750 2.500 .625 3.750 F 2 .500-20 5.875 3.000 4-1-1143-1
1480 5.880 4.750 2.938 .750 3.750 F 2 .500-20 5.875 3.000 4-1-1143-3

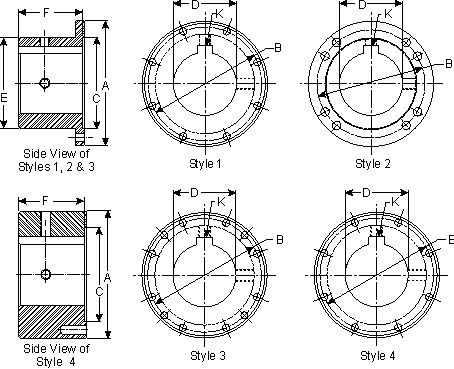

Series Dimension A Dimension B (D) Bore

Diameter

 Keyway

Width (K)

 (C) Pilot Diameter

M=Male F=Female

 Figure Bolt Hole Diameter

D=Drilled T=Tapped

 (E) Hub

Diameter

 (F) Flange Face

to Hub End

 Part #
1610 6.880 6.130 1.250   6.625 F 1 .375 5.250 3.500 5-1-873
1610 6.880 6.130 2.000 .500 6.625 F 1 .375 5.250 3.500 5-1-873-1
1610 6.880 6.130 2.250 .625 6.625 F 1 .375 5.250 3.500 5-1-873-3
1610 6.880 6.130 2.750 .625 6.625 F 1 .375 5.250 3.500 5-1-873-7
1610 6.880 6.130 2.938 .750 6.625 F 1 .375 5.250 3.500 5-1-873-8
1610 6.880 6.130 3.000 .750 6.625 F 1 .375 5.250 3.500 5-1-873-9
1610 6.880 6.130 3.125   6.625 F 4 .375-24 6.875 5.000 5-1-883
1610 6.880 6.130 3.500 .875 6.625 F 4 .375-24 6.875 5.000 5-1-883-1
1710 8.000 7.250 1.250   7.750 F 1 .375 6.375 4.000 6-1-1253
1710 8.000 7.250 2.438 .625 7.750 F 1 .375 6.375 4.000 6-1-1253-1
1710 8.000 7.250 2.750 .625 7.750 F 1 .375 6.375 4.000 6-1-1253-3
1710 8.000 7.250 2.938 .750 7.750 F 1 .375 6.375 4.000 6-1-1253-4
1710 8.000 7.250 3.500 .875 7.750 F 1 .375 6.375 4.000 6-1-1253-6
1810 8.000 7.250 1.250   7.750 F 3 .438 6.375 4.000 6.5-1-533
1810 8.000 7.250 2.438 .625 7.750 F 3 .438 6.375 4.000 6.5-1-533-1
1810 8.000 7.250 2.500 .625 7.750 F 3 .438 6.375 4.000 6.5-1-533-2
1810 8.000 7.250 2.938 .750 7.750 F 3 .438 6.375 4.000 6.5-1-533-4
1810 8.000 7.250 3.500 .875 7.750 F 3 .438 6.375 4.000 6.5-1-533-6
1880 9.500 8.250 1.500   7.000 F 2 .625 6.875 5.000 9-1-333
1880 9.500 8.250 2.938 .750 7.000 F 2 .625 6.875 5.000 9-1-333-2
1880 9.500 8.250 3.500 .875 7.000 F 2 .628 D 6.875 5.000 9-1-333-4
1880 9.500 8.250 4.000 1.000 7.000 F 1 .625 6.875 5.000 9-1-333-6
