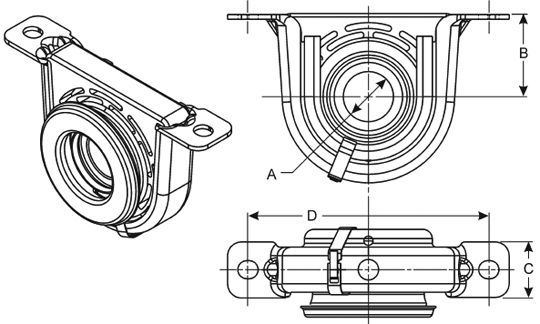

Dana Center Bearings - Style 11
|
Parts not |
sold separately |
─ Shown for info |
purposes |
only | |||||
| B | C |
Center |
Bearing Major |
Parts |
Retainers |
||||
| Center Bearing Assembly Part Number | Centerline to Mounting Surface | Bracket Width | Bracket Part Number | Rubber Cushion Part Number |
Bearing & Retainer Assy
|
Front Slinger Part Number | Rear Slinger Part Number | Bottom | Top |
| A = 1.181 Bearing I.D. |
D = |
5.880 | Bolt Hole/Stud | Size = .630 (H) | |||||
| 211590-1X | 1.940 | 1.450 | 5007512 | 231695 | 211554X | 231696 | ~ | 3-95-139 | ~ |
| A = 1.260 Bearing I.D. |
D = |
5.880 | Bolt Hole/Stud | Size = .630 (H) | |||||
| 211431X | 1.940 | 1.450 | 231694 | 231695 | 211409-1X | 231696 | ~ | 3-95-139 | ~ |
| A = 1.378 Bearing I.D. |
D = |
6.620 | Bolt Hole/Stud | Size = .560 (H) | |||||
| 211175X | 2.250 | 1.726 | 231285 | 231212 | 210086X | 231286 | 231256 | 3-95-99 | ~ |
| 211819-1X ● | 2.250 | 1.726 | 231285 | 232181 | 210086-3X | 231286 | 231256 |
3-95-99 |
~ |
| A = 1.574 Bearing I.D. |
D = |
6.620 | Bolt Hole/Stud | Size = .560 (H) | |||||
| 211499X | 2.250 | 1.726 | 231285 | 231212 | 210865-1X | 231286 | 231834 | 3-95-99 | ~ |
| 211748-3X ● | 2.250 | 1.726 | 231285 | 232181 | 210865-1X | 231286 | 231834 | 3-95-99 | ~ |
| 212053-1X | 2.250 | 1.726 | 231285 | 231212 | 210865-1X | ~ | 3-95-99 | ~ |
● Part is discontinued
To verify availability and cost, please call 209-538-8956.
